9462-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter	Flange Diameter	Length - Overall	Length - Overall	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Tail Diameter [diameter]	Tail Diameter [diameter]	Tail Type	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 9462-0-15-80-21-14-04-0	-55 C	125 °C	1.37 mm	0.054 in	0.29 in	7.37 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	0.25 Ám	10 Áin	Gold	0.51 mm	0.02 in	Standard Tail	Beryllium Copper	0.031 in	0.79 mm	Hex Press-Fit	0.043 in	1.09 mm
Mill-Max Manufacturing Corp. 9462-0-15-15-21-14-04-0	-55 C	125 °C	1.37 mm	0.054 in	0.29 in	7.37 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	0.25 Ám	10 Áin	Gold	0.51 mm	0.02 in	Standard Tail	Beryllium Copper	0.031 in	0.79 mm	Hex Press-Fit	0.043 in	1.09 mm

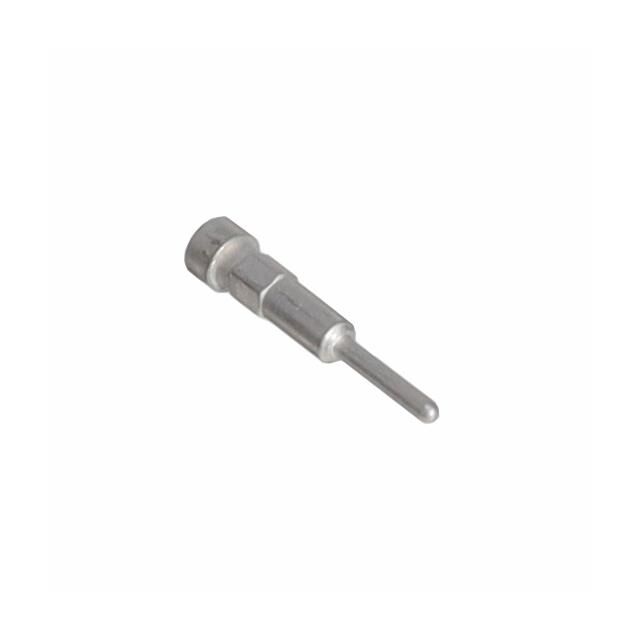

Mill-Max Manufacturing Corp. 9462-0-15-80-21-84-04-0	-55 C	125 °C	1.37 mm	0.054 in	0.29 in	7.37 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	2.54 µm	100 µin	Tin	0.51 mm	0.02 in	Standard Tail	Beryllium Copper	0.031 in	0.79 mm	Hex Press-Fit	0.043 in	1.09 mm
Mill-Max Manufacturing Corp. 9462-0-15-80-21-27-04-0	-55 C	125 °C	1.37 mm	0.054 in	0.29 in	7.37 mm	0.38 mm	0.022 in	0.015 "	0.56 mm	0.76 Ám	30 Áin	Gold	0.51 mm	0.02 in	Standard Tail	Beryllium Copper	0.031 in	0.79 mm	Hex Press-Fit	0.043 in	1.09 mm
