50SQ100 Series

Catalog

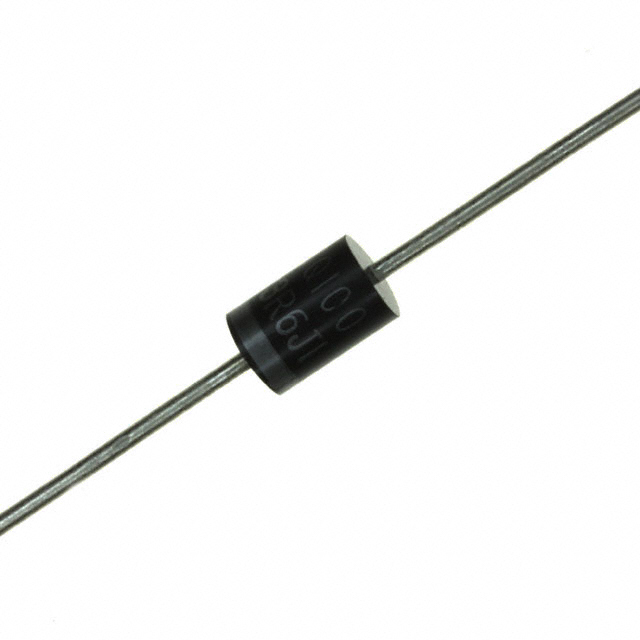

DIODE SCHOTTKY 100V 5A DO204AR

Part	Capacitance @ Vr, F	Current - Average Rectified (Io)	Supplier Device Package	Current - Reverse Leakage @ Vr	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If [Max]	Mounting Type	Package / Case	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Vishay General Semiconductor - Diodes Division VS-50SQ100GTR	500 pF	5 A	DO-204AR	150 µA	Schottky	100 V	660 mV	Through Hole	DO-204AR Axial	200 mA 500 ns	175 ░C	-55 C
Vishay General Semiconductor - Diodes Division VS-50SQ100TR		5 A	DO-204AR	550 µA	Schottky	100 V	660 mV	Through Hole	DO-204AR Axial	200 mA 500 ns	175 ░C	-55 C
Vishay General Semiconductor - Diodes Division VS-50SQ100G	500 pF	5 A	DO-204AR	150 µA	Schottky	100 V	660 mV	Through Hole	DO-204AR Axial	200 mA 500 ns	175 ░C	-55 C
