1241.6634 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

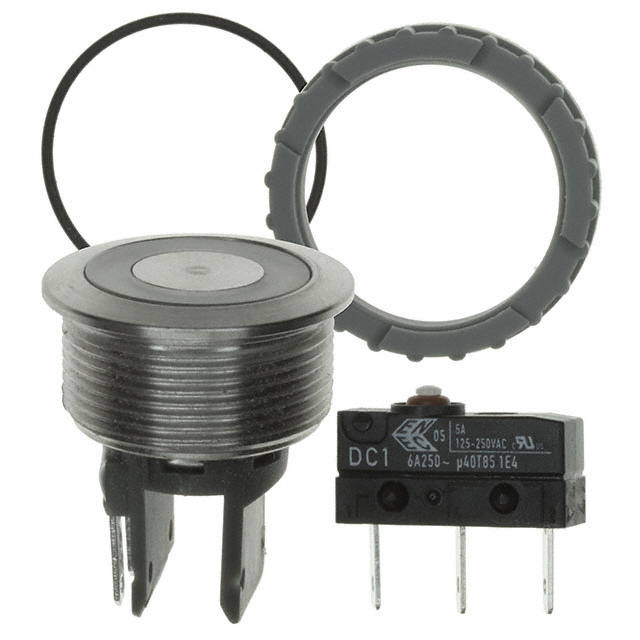

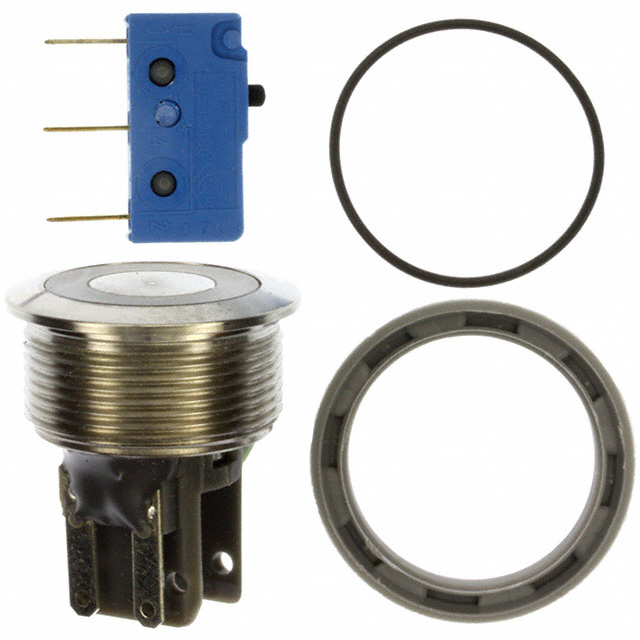

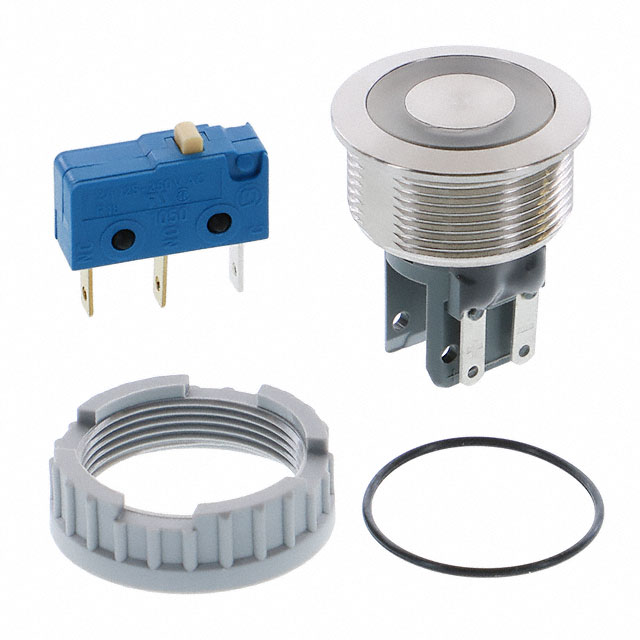

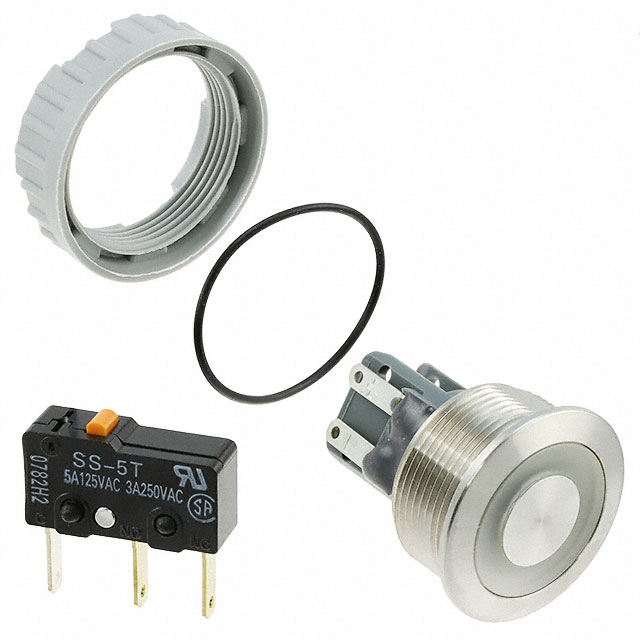

SWITCH PUSHBUTTON SPDT 5A 125V
| Part | Mechanical Life | Electrical Life | Actuator Marking | Color - Actuator/Cap | Mounting Type | Illumination Voltage (Nominal) | Voltage Rating - AC | Switch Function | Termination Style | Type | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Actuator Type | Ingress Protection | Illumination Type, Color | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | No Marking | Silver | Panel Mount Front | 24 V | 125 V | On-Mom | Quick Connect - 0.110" (2.8mm) | Anti-Vandal Illuminated | SPDT | 85 °C | -25 °C | 5 A | 22.1 mm | Button Flush Round | IP40 | Blue LED | |
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | No Marking | Silver | Panel Mount Front | 24 V | 125 V | On-Mom | Quick Connect - 0.110" (2.8mm) | Anti-Vandal Illuminated | SPDT | 85 °C | -25 °C | 5 A | 22.1 mm | Button Flush Round | IP40 | LED Red | |
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | No Marking | Silver | Panel Mount Front | 24 V | 125 V | On-Mom | Quick Connect - 0.110" (2.8mm) | Anti-Vandal Illuminated | SPDT | 85 °C | -25 °C | 5 A | 22.1 mm | Button Flush Round | IP40 | Green LED | |
 SCHURTER Inc. | 1500000 Cycles | 50000 Cycles | No Marking | Silver | Panel Mount Front | 24 V | 250 V | On-Mom | Quick Connect - 0.110" (2.8mm) | Anti-Vandal Illuminated | SPDT | 85 °C | -25 °C | 5 A | 22.1 mm | Button Flush Round | IP67 - Dust Tight Waterproof | LED Red | |
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | No Marking | Silver | Panel Mount Front | 24 V | On-Mom | Quick Connect - 0.110" (2.8mm) | Anti-Vandal Illuminated | SPDT | 85 °C | -25 °C | 100 mA | 22.1 mm | Button Flush Round | IP40 | Green LED | 30 V |
