0253-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Termination	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Socket Depth	Socket Depth	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]

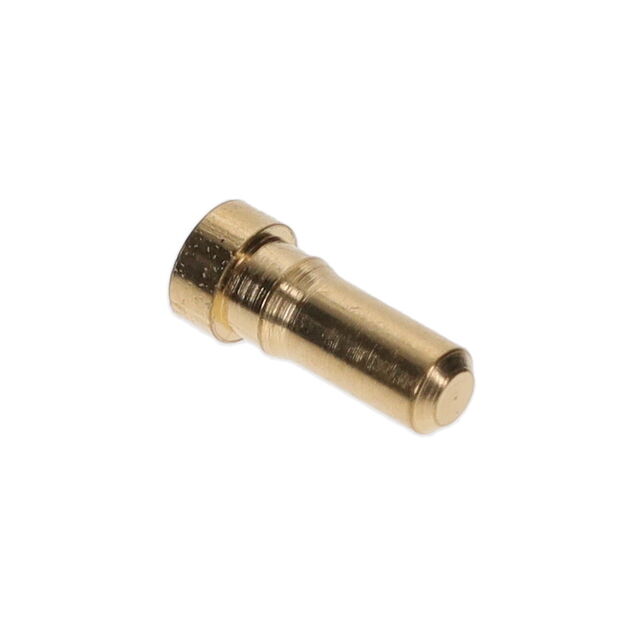

Mill-Max Manufacturing Corp. 0253-0-15-15-30-14-10-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	0.25 Ám	10 Áin	Beryllium Copper	Press-Fit	0.173 in	4.39 mm	1.45 mm	0.057 in	No Tail	3.76 mm	0.148 in	Gold	0.072 "	1.83 mm

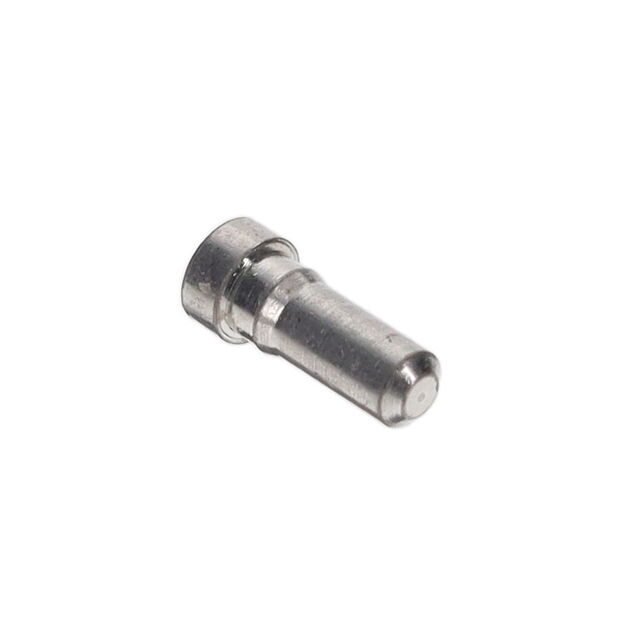

Mill-Max Manufacturing Corp. 0253-0-15-01-30-02-10-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	2.54 µm	100 µin	Beryllium Copper	Press-Fit	0.173 in	4.39 mm	1.45 mm	0.057 in	No Tail	3.76 mm	0.148 in	Tin-Lead	0.072 "	1.83 mm
Mill-Max Manufacturing Corp. 0253-0-15-15-30-27-10-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	0.76 Ám	30 Áin	Beryllium Copper	Press-Fit	0.173 in	4.39 mm	1.45 mm	0.057 in	No Tail	3.76 mm	0.148 in	Gold	0.072 "	1.83 mm
Mill-Max Manufacturing Corp. 0253-0-15-80-30-27-10-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	0.76 Ám	30 Áin	Beryllium Copper	Press-Fit	0.173 in	4.39 mm	1.45 mm	0.057 in	No Tail	3.76 mm	0.148 in	Gold	0.072 "	1.83 mm
Mill-Max Manufacturing Corp. 0253-0-15-01-30-14-10-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	0.25 Ám	10 Áin	Beryllium Copper	Press-Fit	0.173 in	4.39 mm	1.45 mm	0.057 in	No Tail	3.76 mm	0.148 in	Gold	0.072 "	1.83 mm
Mill-Max Manufacturing Corp. 0253-0-15-80-30-84-10-0	-55 C	125 °C	0.64 mm	0.015 "	0.025 in	0.38 mm	2.54 µm	100 µin	Beryllium Copper	Press-Fit	0.173 in	4.39 mm	1.45 mm	0.057 in	No Tail	3.76 mm	0.148 in	Tin	0.072 "	1.83 mm
