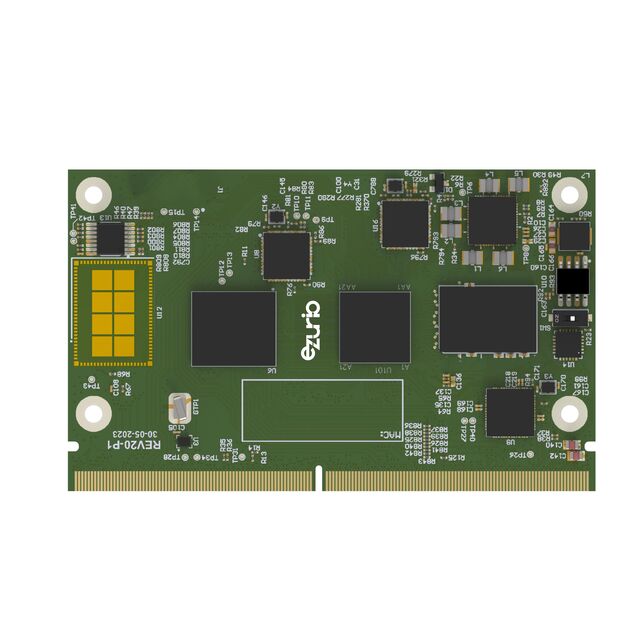

N93_SMARC_SOM Series

Catalog

SBC 1.7GHZ 1/2 CORE 1GB/0GB RAM

Part	Number of Cores [custom]	USB	Expansion Site/Bus	Ethernet	RAM Capacity/Installed	Speed	Storage Interface	Operating Temperature [Max]	Operating Temperature [Min]	Video Outputs	Form Factor	Core Processor	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
Ezurio LLC N93_SMARC_SOM_1R16E	1/2	USB 2.0 (2)	Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth	GbE (2)	0 GB 1 GB	1.7 GHz 250 MHz	eMMC SPI	70 °C	0 °C	LVDS MIPI CSI MIPI DSI	SMARC2.1.1	ARM® Cortex®-A55 ARM® Cortex®-M33	81.99 mm	50.01 mm	3.228 "	1.969 "
Ezurio LLC N93_SMARC_SOM_2R16E	1/2	USB 2.0 (2)	Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth	GbE (2)	0 GB 2 GB	1.7 GHz 250 MHz	eMMC SPI	70 °C	0 °C	LVDS MIPI CSI MIPI DSI	SMARC2.1.1	ARM® Cortex®-A55 ARM® Cortex®-M33	81.99 mm	50.01 mm	3.228 "	1.969 "
Ezurio LLC N93_SMARC_SOM_1R16E_I	1/2	USB 2.0 (2)	Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth	GbE (2)	0 GB 2 GB	1.7 GHz 250 MHz	eMMC SPI	85 °C	-40 C	LVDS MIPI CSI MIPI DSI	SMARC2.1.1	ARM® Cortex®-A55 ARM® Cortex®-M33 i.MX93	81.99 mm	50.01 mm	3.228 "	1.969 "
Ezurio LLC N93_SMARC_SOM_2R16E_I	1/2	USB 2.0 (2)	Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth	GbE (2)	0 GB 2 GB	1.7 GHz 250 MHz	eMMC SPI	85 °C	-40 C	LVDS MIPI CSI MIPI DSI	SMARC2.1.1	ARM® Cortex®-A55 ARM® Cortex®-M33	81.99 mm	50.01 mm	3.228 "	1.969 "
Ezurio LLC N93_SMARC_SOM_1R16E_I	1/2	USB 2.0 (2)	Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth	GbE (2)	0 GB 2 GB	1.7 GHz 250 MHz	eMMC SPI	85 °C	-40 C	LVDS MIPI CSI MIPI DSI	SMARC2.1.1	ARM® Cortex®-A55 ARM® Cortex®-M33	81.99 mm	50.01 mm	3.228 "	1.969 "
Ezurio LLC N93_SMARC_SOM_2R16E	1/2	USB 2.0 (2)	Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth	GbE (2)	0 GB 2 GB	1.7 GHz 250 MHz	eMMC SPI	70 °C	0 °C	LVDS MIPI CSI MIPI DSI	SMARC2.1.1	ARM® Cortex®-A55 ARM® Cortex®-M33 i.MX93	81.99 mm	50.01 mm	3.228 "	1.969 "
Ezurio LLC N93_SMARC_SOM_1R16E	1/2	USB 2.0 (2)	Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth	GbE (2)	0 GB 1 GB	1.7 GHz 250 MHz	eMMC SPI	70 °C	0 °C	LVDS MIPI CSI MIPI DSI	SMARC2.1.1	ARM® Cortex®-A55 ARM® Cortex®-M33 i.MX93	81.99 mm	50.01 mm	3.228 "	1.969 "
Ezurio LLC N93_SMARC_SOM_2R16E_I	1/2	USB 2.0 (2)	Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth	GbE (2)	0 GB 2 GB	1.7 GHz 250 MHz	eMMC SPI	85 °C	-40 C	LVDS MIPI CSI MIPI DSI	SMARC2.1.1	ARM® Cortex®-A55 ARM® Cortex®-M33 i.MX93	81.99 mm	50.01 mm	3.228 "	1.969 "
