2710-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

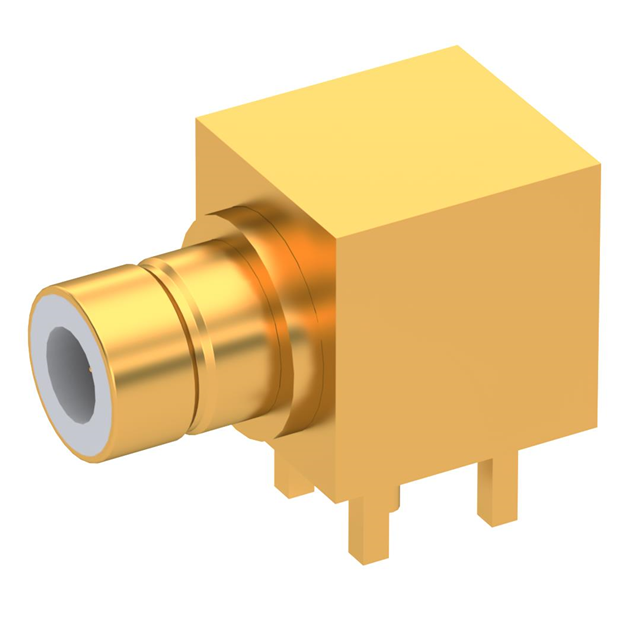

75 OHM / RIGHT ANGLE JACK MALE G
| Part | Body Finish | Voltage Rating | Mating Cycles | Center Contact Plating | Body Material | Dielectric Material | Insertion Loss | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Mounting Type | Number of Ports | Contact Termination | Housing Color | Impedance | Center Contact Material | Shield Termination | Frequency - Max [Max] | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 165 V | 500 | Gold | Brass | Polytetrafluoroethylene (PTFE) | 0.6 dB | -65 ░C | 165 °C | Snap-On | Right Angle Through Hole | 1 | Solder | Gold | 75 Ohms | Beryllium Copper | Solder | 2 GHz | Jack Male Pin |
