S7B-ZR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 7POS 1.5MM
| Part | Number of Rows | Contact Finish - Post | Fastening Type | Material Flammability Rating | Contact Length - Post [x] | Contact Length - Post [x] | Contact Type | Insulation Color | Voltage Rating | Contact Material | Insulation Material | Contact Length - Mating | Contact Length - Mating | Insulation Height | Insulation Height | Style | Connector Type | Number of Positions | Number of Positions Loaded | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Shape | Shrouding | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

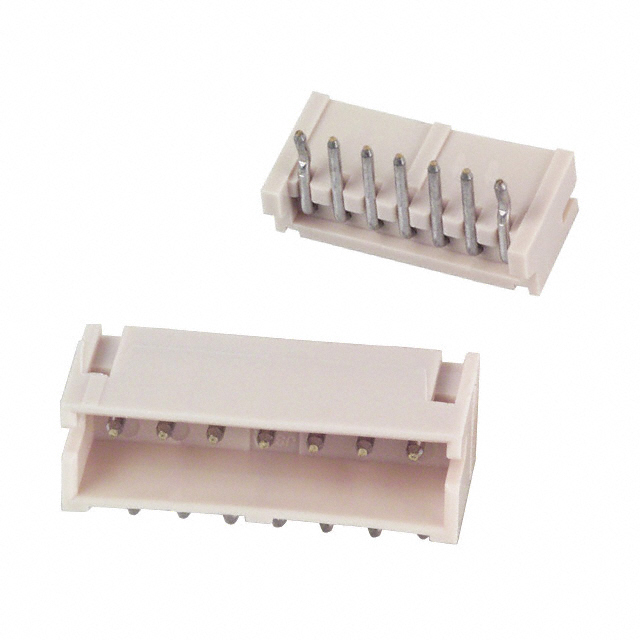

 JST Sales America Inc. | 1 | Tin | Detent Lock | UL94 V-0 | 0.106 in | 2.69 mm | Male Pin | Natural | 50 V | Brass | Glass Filled Nylon 6/6 Polyamide (PA66) | 2.4 mm | 0.094 in | 3.7 mm | 0.146 in | Board to Cable/Wire | Header | 7 | All | Solder | 85 °C | -25 °C | Right Angle Through Hole | Circular | Shrouded - 4 Wall | |

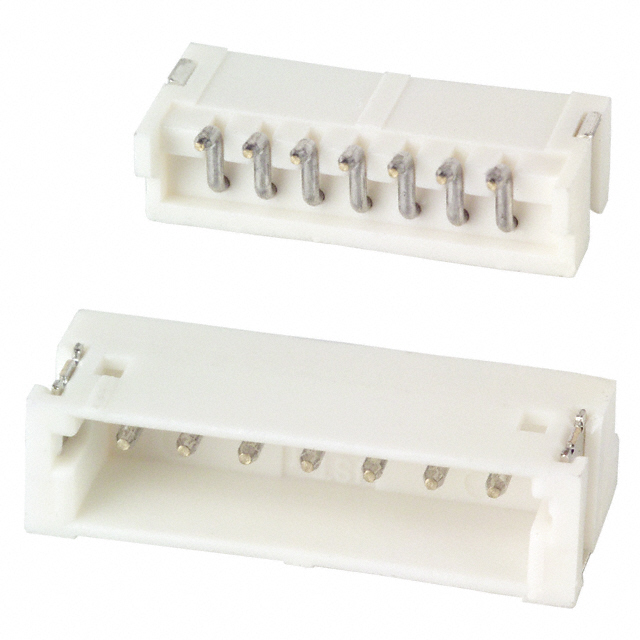

 JST Sales America Inc. | 1 | Tin | Detent Lock | UL94 V-0 | Male Pin | Natural | 50 V | Brass | Nylon 6T Polyamide (PA6T) | 3.7 mm | 0.146 in | Board to Cable/Wire | Header | 7 | All | Solder | 85 °C | -25 °C | Right Angle Surface Mount | Circular | Shrouded - 4 Wall | Solder Retention | ||||
 JST Sales America Inc. | 1 | Tin | Detent Lock | UL94 V-0 | Male Pin | Natural | 50 V | Brass | Glass Filled Nylon 4/6 Polyamide (PA46) | 2.4 mm | 0.094 in | 3.7 mm | 0.146 in | Board to Cable/Wire | Header | 7 | All | Solder | 85 °C | -25 °C | Right Angle Surface Mount | Circular | Shrouded - 4 Wall | Board Guide |
