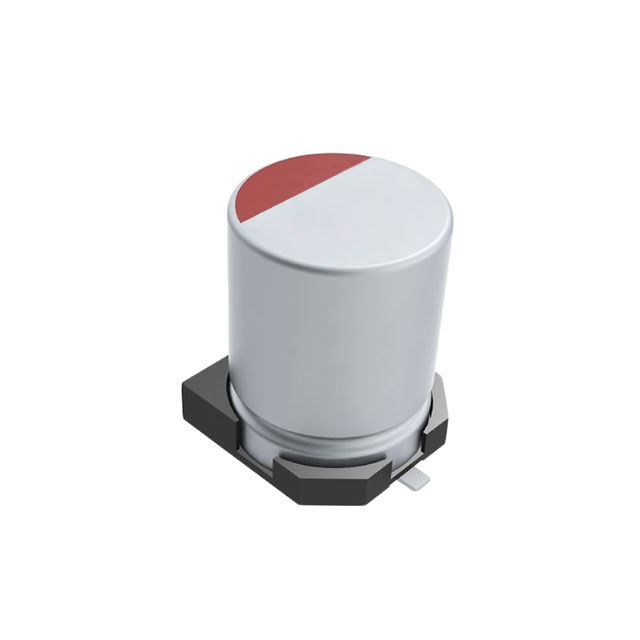

A765MU Series

Manufacturer: KEMET

Catalog

CAP ALUMINUM POLYMER 820UF 16VDC 20%( 10 X 12.6MM) SMD 0.018 OHM 4.2A 2000H 105°C T/R

Part	Operating Temperature [Min]	Operating Temperature [Max]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Tolerance	Type	Lifetime @ Temp.	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Ripple Current @ Low Frequency	Mounting Type	Package / Case	ESR (Equivalent Series Resistance)
KEMET A765MU827M1CLAE018	-55 C	105 ░C	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	Polymer	2000 Hrs	16 V	12.9 mm	0.508 in	General Purpose	4.2 A	0.394 in	10 mm	820 µF	210 mA	Surface Mount	Radial Can - SMD
KEMET A765MU687M1CLAE018	-55 C	105 ░C	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	Polymer	2000 Hrs	16 V	12.9 mm	0.508 in	General Purpose	4.2 A	0.394 in	10 mm	680 µF	210 mA	Surface Mount	Radial Can - SMD
KEMET A765MU157M1ELAE050	-55 C	105 ░C	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	Polymer	2000 Hrs	25 VDC	12.9 mm	0.508 in	General Purpose	3.8 A	0.394 in	10 mm	150 µF	190 mA	Surface Mount	Radial Can - SMD	50 mOhms
KEMET A765MU158M0GLAE012	-55 C	105 ░C	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	Polymer	2000 Hrs	4 V	12.9 mm	0.508 in	General Purpose	5.44 A	0.394 in	10 mm	1.5 mF	272 mA	Surface Mount	Radial Can - SMD	12 mOhms
KEMET A765MU687M1ALAE013	-55 C	105 ░C	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	Polymer	2000 Hrs	10 V	12.9 mm	0.508 in	General Purpose	3.8 A	0.394 in	10 mm	680 µF	190 mA	Surface Mount	Radial Can - SMD	13 mOhms
KEMET A765MU158M1ALAE014	-55 C	105 ░C	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	Polymer	2000 Hrs	10 V	12.9 mm	0.508 in	General Purpose	5.4 A	0.394 in	10 mm	1.5 mF	270 mA	Surface Mount	Radial Can - SMD	14 mOhms
