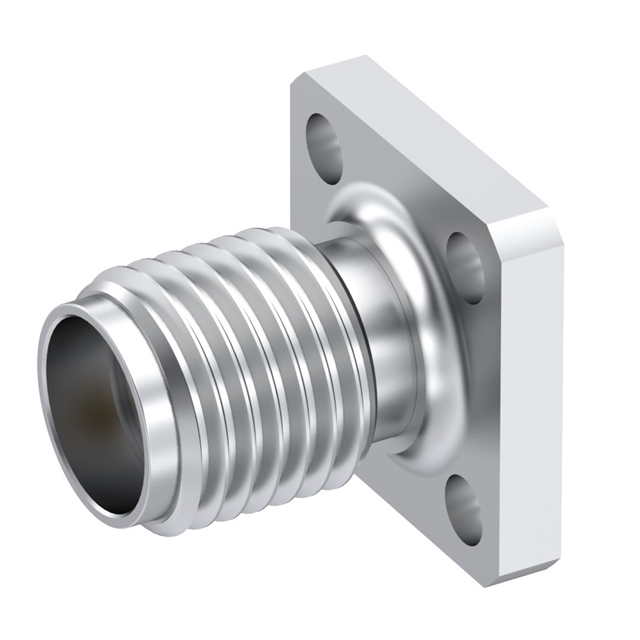

9576-9113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMA / STRAIGHT JACK FEMALE PASSI
| Part | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Voltage Rating | Mating Cycles | Dielectric Material | Shield Termination | Mounting Type | Connector Style | Connector Type | Housing Color | Frequency - Max [Max] | Number of Ports | Mounting Feature | Contact Termination | Impedance | Fastening Type | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | -65 ░C | 165 °C | Gold | 335 V | 500 | Polytetrafluoroethylene (PTFE) | Screw | Panel Mount | SMA | Female Socket Jack | Silver | 26 GHz | 1 | Flange | Compression | 50 Ohms | Threaded | Beryllium Copper |
 Radiall USA, Inc. | Stainless Steel | -65 ░C | 250 °C | Gold | 335 V | 500 | Polytetrafluoroethylene (PTFE) | Screw | Panel Mount | SMA | Female Socket Jack | Silver | 26 GHz | 1 | Flange | Compression | 50 Ohms | Threaded | Beryllium Copper |
