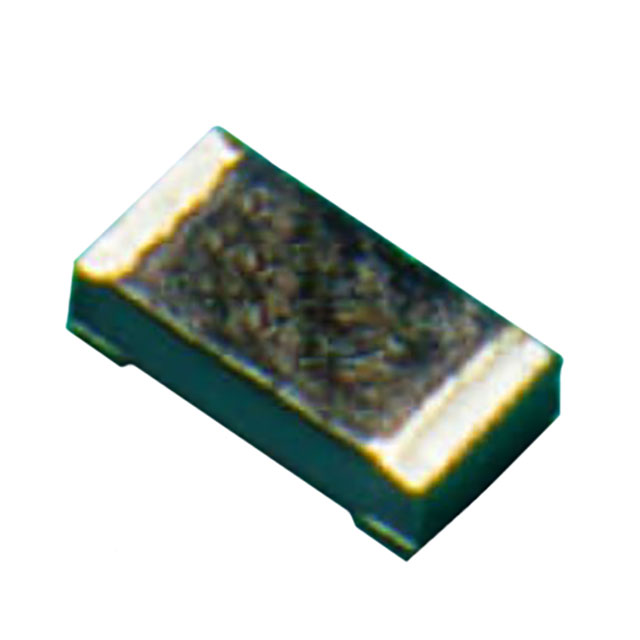

RS73F2BRT Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

Catalog

RES 1 MOHM 0.25% 1/3W 1206

...

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance	Package / Case	Number of Terminations [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Power (Watts)	Power (Watts)	Ratings	Supplier Device Package	Features	Composition	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient
KOA Speer Electronics, Inc. RS73F2BRTTD1004C	0.7 mm	0.028 "	1 MOhms	1206 (3216 Metric)	2	0.063 "	0.126 "	3.2 mm	1.6 mm	0.25 %	0.3333333333333333 W	0.333 W	AEC-Q200	1206	Automotive AEC-Q200	Thick Film	155 C	-55 C	25 ppm/°C
KOA Speer Electronics, Inc. RS73F2BRTTD61R9D	0.7 mm	0.028 "		1206 (3216 Metric)	2	0.063 "	0.126 "	3.2 mm	1.6 mm	0.5 %	0.3333333333333333 W	0.333 W	AEC-Q200	1206	Automotive AEC-Q200	Thick Film	155 C	-55 C	25 ppm/°C
KOA Speer Electronics, Inc. RS73F2BRTTD5104F	0.7 mm	0.028 "	5.1 MOhms	1206 (3216 Metric)	2	0.063 "	0.126 "	3.2 mm	1.6 mm	1 %	0.3333333333333333 W	0.333 W	AEC-Q200	1206	Automotive AEC-Q200	Thick Film	155 C	-55 C	25 ppm/°C
KOA Speer Electronics, Inc. RS73F2BRTTD8060C	0.7 mm	0.028 "	806 Ohms	1206 (3216 Metric)	2	0.063 "	0.126 "	3.2 mm	1.6 mm	0.25 %	0.3333333333333333 W	0.333 W	AEC-Q200	1206	Automotive AEC-Q200	Thick Film	155 C	-55 C	25 ppm/°C
KOA Speer Electronics, Inc. RS73F2BRTTD3831D	0.7 mm	0.028 "	3.83 kOhms	1206 (3216 Metric)	2	0.063 "	0.126 "	3.2 mm	1.6 mm	0.5 %	0.3333333333333333 W	0.333 W	AEC-Q200	1206	Automotive AEC-Q200	Thick Film	155 C	-55 C	25 ppm/°C
KOA Speer Electronics, Inc. RS73F2BRTTD1023D	0.7 mm	0.028 "	102 kOhms	1206 (3216 Metric)	2	0.063 "	0.126 "	3.2 mm	1.6 mm	0.5 %	0.3333333333333333 W	0.333 W	AEC-Q200	1206	Automotive AEC-Q200	Thick Film	155 C	-55 C	25 ppm/°C
KOA Speer Electronics, Inc. RS73F2BRTTD2431F	0.7 mm	0.028 "	2.43 kOhms	1206 (3216 Metric)	2	0.063 "	0.126 "	3.2 mm	1.6 mm	1 %	0.3333333333333333 W	0.333 W	AEC-Q200	1206	Automotive AEC-Q200	Thick Film	155 C	-55 C	25 ppm/°C
KOA Speer Electronics, Inc. RS73F2BRTTD4872F	0.7 mm	0.028 "	48.7 kOhms	1206 (3216 Metric)	2	0.063 "	0.126 "	3.2 mm	1.6 mm	1 %	0.3333333333333333 W	0.333 W	AEC-Q200	1206	Automotive AEC-Q200	Thick Film	155 C	-55 C	25 ppm/°C
KOA Speer Electronics, Inc. RS73F2BRTTD3304D	0.7 mm	0.028 "	3.3 MOhms	1206 (3216 Metric)	2	0.063 "	0.126 "	3.2 mm	1.6 mm	0.5 %	0.3333333333333333 W	0.333 W	AEC-Q200	1206	Automotive AEC-Q200	Thick Film	155 C	-55 C	25 ppm/°C
KOA Speer Electronics, Inc. RS73F2BRTTD3000C	0.7 mm	0.028 "	300 Ohms	1206 (3216 Metric)	2	0.063 "	0.126 "	3.2 mm	1.6 mm	0.25 %	0.3333333333333333 W	0.333 W	AEC-Q200	1206	Automotive AEC-Q200	Thick Film	155 C	-55 C	25 ppm/°C
