LM2594 Series
Manufacturer: UMW
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
IC REG BUCK 5V 1.5A 8SOP
| Part | Voltage - Output (Min/Fixed) | Current - Output | Package Name | Frequency - Switching | Output Type | Number of Outputs | Function | Mounting Type | Voltage - Input (Min) | Operating Temperature (Max) | Operating Temperature (Min) | Output Configuration | Topology | Voltage - Input (Max) | Package Length | Package Width | Synchronous Rectifier | Voltage - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

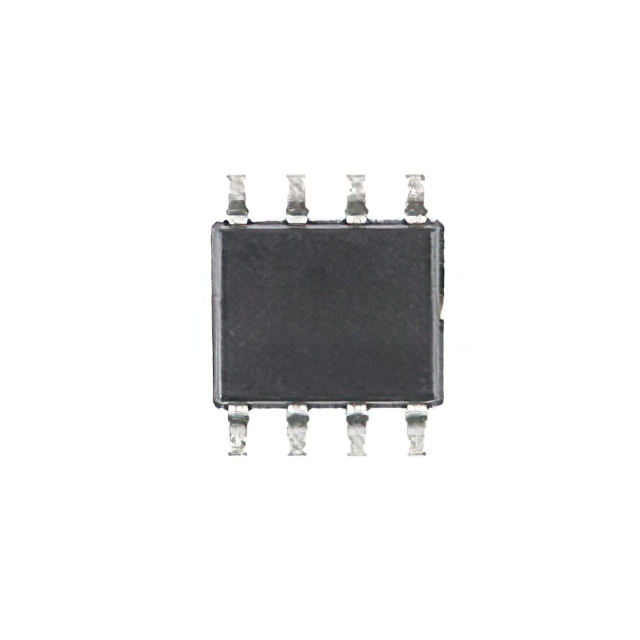

 UMW | 5 V | 1.5 A | 8-SOIC 8-SOP | 150 kHz | Fixed | 1 | Step-Down | Surface Mount | 4.5 V | 125 °C | -40 °C | Positive | Buck | 40 V | 0.154 in | 3.9 mm | No | |

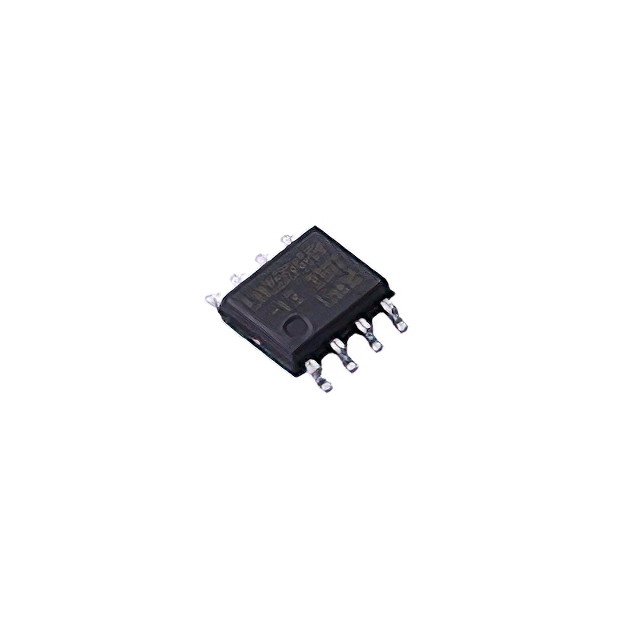

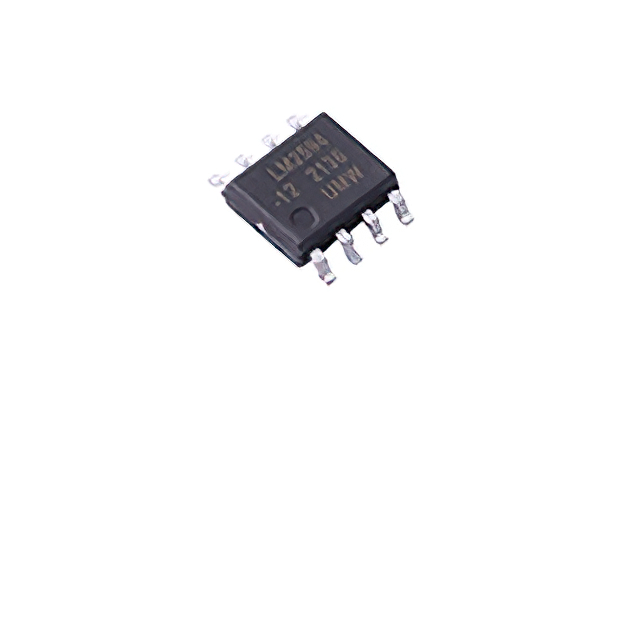

 UMW | 12 V | 1.5 A | 8-SOIC 8-SOP | 150 kHz | Fixed | 1 | Step-Down | Surface Mount | 4.5 V | 125 °C | -40 °C | Positive | Buck | 40 V | 0.154 in | 3.9 mm | No | |

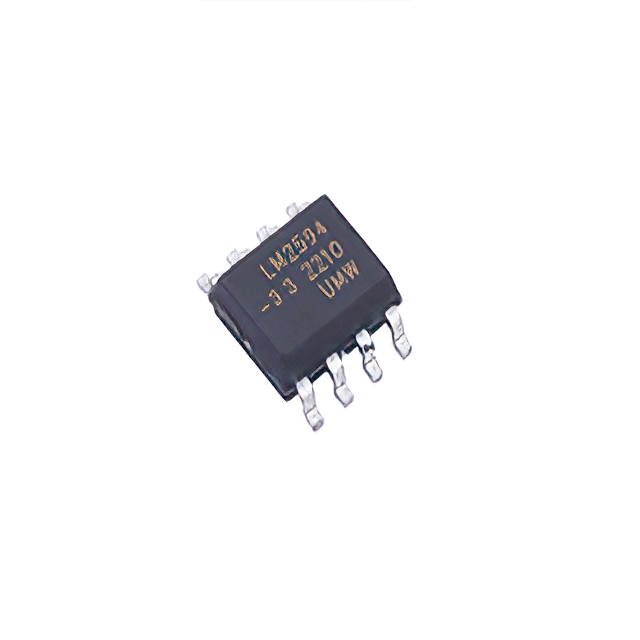

 UMW | 3.3 V | 1.5 A | 8-SOIC 8-SOP | 150 kHz | Fixed | 1 | Step-Down | Surface Mount | 4.5 V | 125 °C | -40 °C | Positive | Buck | 40 V | 0.154 in | 3.9 mm | No | |
 UMW | 1.23 V | 1.5 A | 8-SOIC 8-SOP | 150 kHz | Adjustable | 1 | Step-Down | Surface Mount | 4.5 V | 125 °C | -40 °C | Positive | Buck | 40 V | 0.154 in | 3.9 mm | No | 37 V |
5 V | 1.5 A | 8-SOIC 8-SOP | 150 kHz | Fixed | 1 | Step-Down | Surface Mount | 4.5 V | 125 °C | -40 °C | Positive | Buck | 40 V | 0.154 in | 3.9 mm | No | ||
 UMW | 12 V | 1.5 A | 8-SOIC 8-SOP | 150 kHz | Fixed | 1 | Step-Down | Surface Mount | 4.5 V | 125 °C | -40 °C | Positive | Buck | 40 V | 0.154 in | 3.9 mm | No | |
1.23 V | 1.5 A | 8-SOIC 8-SOP | 150 kHz | Adjustable | 1 | Step-Down | Surface Mount | 4.5 V | 125 °C | -40 °C | Positive | Buck | 40 V | 0.154 in | 3.9 mm | No | 37 V |
