052043 Series

Manufacturer: Molex

Catalog

CONN FPC BOTTOM 16POS 1MM R/A

Part	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Cable End Type	Voltage Rating	Locking Feature	Number of Positions	Contact Finish	Mating Cycles	FFC, FCB Thickness	Mounting Type	Contact Material	Material Flammability Rating	Flat Flex Type	Actuator Material	Termination	Connector/Contact Type	Number of Positions
Molex 0520431619	0.5 A	-20 C	80 C	0.165 "	4.2 mm	0.039 in	1 mm	Tapered	50 V	Slide Lock	16	Tin Bismuth	30	0.3 mm	Through Hole Right Angle	Phosphor Bronze	UL94 V-0	FPC	Polyester	Kinked Pin	Contacts Bottom

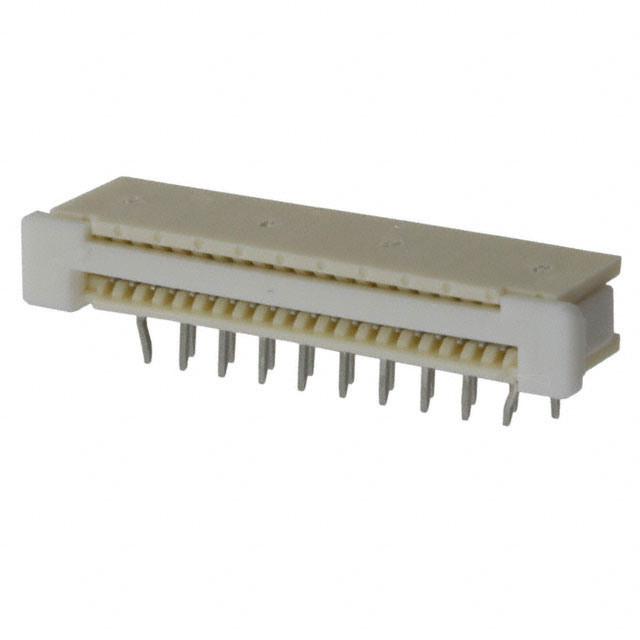

Molex 0520432019	0.5 A	-20 C	80 C	0.165 "	4.2 mm	0.039 in	1 mm	Tapered	50 V	Slide Lock		Tin Bismuth	30	0.3 mm	Through Hole Right Angle	Phosphor Bronze	UL94 V-0	FPC	Polyester	Kinked Pin	Contacts Bottom	20
Molex 0520430819	0.5 A	-20 C	80 C	0.165 "	4.2 mm	0.039 in	1 mm	Tapered	50 V	Slide Lock		Tin Bismuth	30	0.3 mm	Through Hole Right Angle	Phosphor Bronze	UL94 V-0	FPC	Polyester	Kinked Pin	Contacts Bottom	8

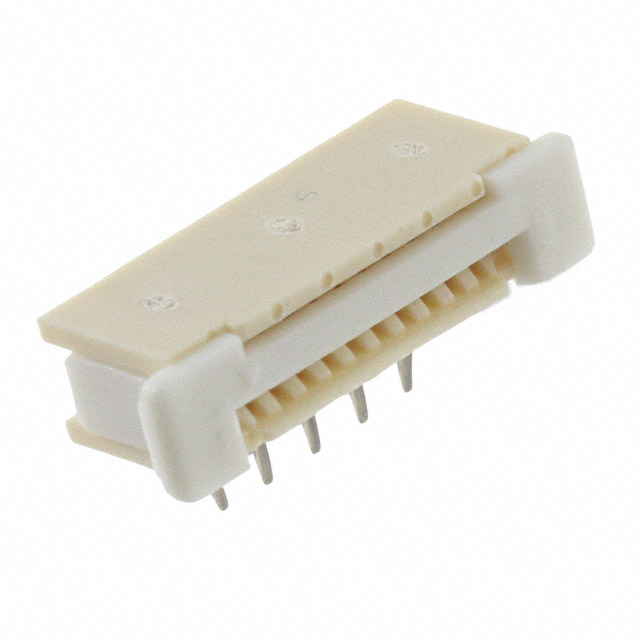

Molex 0520431019	0.5 A	-20 C	80 C	0.165 "	4.2 mm	0.039 in	1 mm	Tapered	50 V	Slide Lock		Tin Bismuth	30	0.3 mm	Through Hole Right Angle	Phosphor Bronze	UL94 V-0	FPC	Polyester	Kinked Pin	Contacts Bottom	10

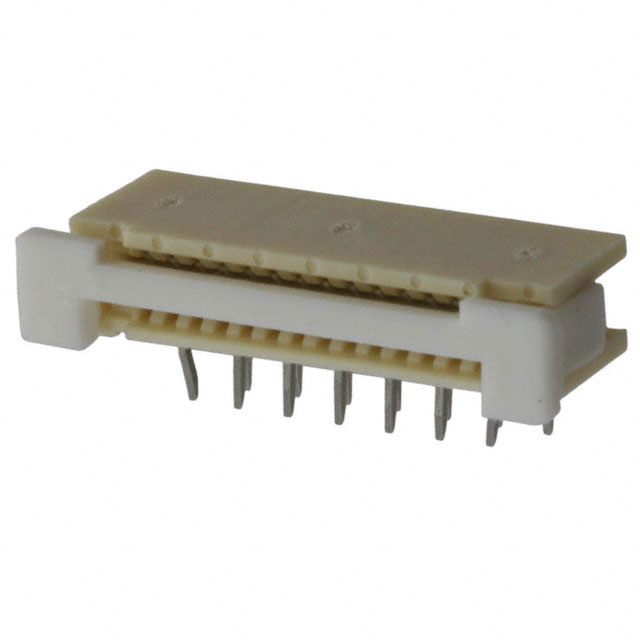

Molex 0520431419	0.5 A	-20 C	80 C	0.165 "	4.2 mm	0.039 in	1 mm	Tapered	50 V	Slide Lock		Tin Bismuth	30	0.3 mm	Through Hole Right Angle	Phosphor Bronze	UL94 V-0	FPC	Polyester	Kinked Pin	Contacts Bottom	14
Molex 0520430619	0.5 A	-20 C	80 C	0.165 "	4.2 mm	0.039 in	1 mm	Tapered	50 V	Slide Lock		Tin Bismuth	30	0.3 mm	Through Hole Right Angle	Phosphor Bronze	UL94 V-0	FPC	Polyester	Kinked Pin	Contacts Bottom	6
Molex 0520431219	0.5 A	-20 C	80 C	0.165 "	4.2 mm	0.039 in	1 mm	Tapered	50 V	Slide Lock		Tin Bismuth	30	0.3 mm	Through Hole Right Angle	Phosphor Bronze	UL94 V-0	FPC	Polyester	Kinked Pin	Contacts Bottom	12
Molex 0520430419	0.5 A	-20 C	80 C	0.165 "	4.2 mm	0.039 in	1 mm	Tapered	50 V	Slide Lock		Tin Bismuth	30	0.3 mm	Through Hole Right Angle	Phosphor Bronze	UL94 V-0	FPC	Polyester	Kinked Pin	Contacts Bottom	4
