1734352 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

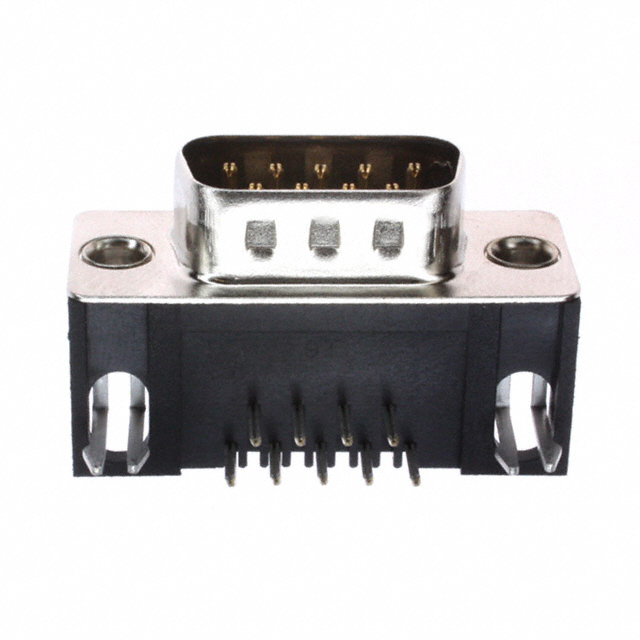

CONN D-SUB PLUG 9POS R/A SLDR
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Flange Feature | Flange Feature | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Material, Finish | Connector Type | Contact Type | Termination | Backset Spacing | Backset Spacing | Mounting Type | Features | Number of Positions | Number of Rows [custom] | Current Rating (Amps) | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | 250 V | Polybutylene Terephthalate (PBT) | Housing/Shell | 4-40 | D-Sub | 1 | DE E | Nickel Plated Steel | Plug Male Pins | Signal | Solder | 8.08 mm | 0.318 " | Right Angle Through Hole | Board Lock Grounding Indents | 9 | 2 | 2 A | Gold | 0.38 µm | 15 µin | |
 TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | 250 V | Polybutylene Terephthalate (PBT) | Housing/Shell | 4-40 | D-Sub | 1 | DE E | Nickel Plated Steel | Plug Male Pins | Signal | Solder | 8.08 mm | 0.318 " | Right Angle Through Hole | Board Lock Grounding Indents | 9 | 2 | 2 A | Gold | Flash |
