EW-31-11 Series

Board to Board & Mezzanine Connectors Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch

Manufacturer: Samtec Inc.

Catalog

Board to Board & Mezzanine Connectors Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch

...
PartColorContact Finish - Post (Mating)Number of RowsLength - Overall Pin [x]Length - Overall Pin [x]Length - Stack Height [x]Length - Stack Height [x]Pitch [x]Pitch [x]Mounting TypeRow Spacing [x]Row SpacingTerminationNumber of PositionsLength - Post (Mating) [x]Length - Post (Mating) [x]Length - TailLength - TailLength - Stack Height [z]Length - Stack Height [z]Contact Finish Thickness - Post (Mating)Contact Finish Thickness - Post (Mating)Length - Overall PinNumber of Positions

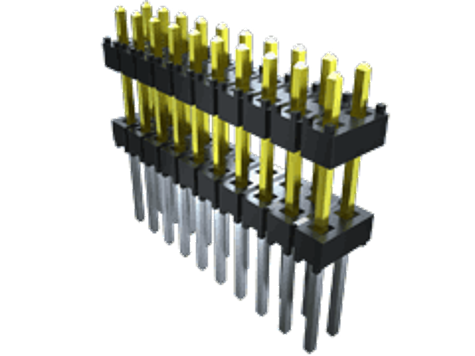

EW-12-14-T-D-870
Samtec Inc.
EW-12-14-T-D-870
Black
Tin
2
1.43 in
36.322 mm
22.098 mm
0.87 in
2.54 mm
0.1 in
Through Hole
0.1 in
2.54 mm
Solder
24
0.23 in
5.842 mm
0.33 in
8.382 mm
Samtec Inc.
EW-36-09-T-D-260
Black
Tin
2
0.73 in
18.542 mm
2.54 mm
0.1 in
Through Hole
0.1 in
2.54 mm
Solder
72
0.14 in
3.556 mm
0.33 in
8.382 mm
0.26 in
6.604 mm
Samtec-EW-20-14-S-S-950 Connector Headers and PCB Receptacles Conn Board Stacker HDR 20 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk
Samtec Inc.
EW-20-14-S-S-950
Black
Gold
1
1.43 in
36.322 mm
24.13 mm
0.95 in
2.54 mm
0.1 in
Through Hole
Solder
20
0.15 in
3.81 mm
0.33 in
8.382 mm
30 µin
0.76 µm
EW-30-11-S-D-410
Samtec Inc.
EW-30-11-S-D-410
Black
Gold
2
0.93 in
23.622 mm
2.54 mm
0.1 in
Through Hole
0.1 in
2.54 mm
Solder
60
0.19 in
4.826 mm
0.33 in
8.382 mm
0.41 in
10.414 mm
30 µin
0.76 µm
Samtec Inc.
EW-07-09-G-S-250
Black
Gold
1
0.73 in
18.542 mm
6.35 mm
0.25 in
2.54 mm
0.1 in
Through Hole
Solder
7
0.15 in
3.81 mm
0.33 in
8.382 mm
10 Áin
0.25 Ám
EW-20-20-T-D-425
Samtec Inc.
EW-20-20-T-D-425
Black
Tin
2
1.13 in
28.702 mm
2.54 mm
0.1 in
Through Hole
0.1 in
2.54 mm
Solder
40
0.375 in
9.525 mm
0.33 in
8.382 mm
0.425 in
10.8 mm
EW-13-10-G-D-220
Samtec Inc.
EW-13-10-G-D-220
Black
Gold
2
0.83 in
2.54 mm
0.1 in
Through Hole
0.1 in
2.54 mm
Solder
26
0.28 in
7.112 mm
0.33 in
8.382 mm
10 Áin
0.25 Ám
21.082 mm
Samtec Inc.
EW-50-14-T-S-980
Black
Tin
1
1.43 in
36.322 mm
2.54 mm
0.1 in
Through Hole
Solder
50
0.12 in
3.048 mm
0.33 in
8.382 mm
0.98 in
24.892 mm
Samtec Inc.
EW-04-11-T-D-500
Black
Tin
2
0.93 in
23.622 mm
12.7 mm
0.5 in
2.54 mm
0.1 in
Through Hole
0.1 in
2.54 mm
Solder
8
0.1 in
2.54 mm
0.33 in
8.382 mm
Samtec-EW-08-12-F-D-475 Connector Headers and PCB Receptacles Conn Board Stacker HDR 16 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk
Samtec Inc.
EW-08-12-F-D-475
Black
Gold
2
1.03 in
26.162 mm
2.54 mm
0.1 in
Through Hole
0.1 in
2.54 mm
Solder
0.225 in
5.715 mm
0.33 in
8.382 mm
0.475 in
12.065 mm
3 Áin
0.076 Ám
16
