62684 Series

Catalog

CONN FPC TOP 40POS 0.5MM R/A

Part	Operating Temperature [Max]	Operating Temperature [Min]	FFC, FCB Thickness	Voltage Rating	Termination	Actuator Color	Mounting Type	Housing Material	Pitch [x]	Pitch [x]	Mating Cycles	Cable End Type	Features	Number of Positions	Locking Feature	Connector/Contact Type	Contact Finish	Flat Flex Type	Housing Color	Material Flammability Rating	Contact Material	Current Rating (Amps)	Height Above Board	Height Above Board	Actuator Material	FFC, FCB Thickness [z]

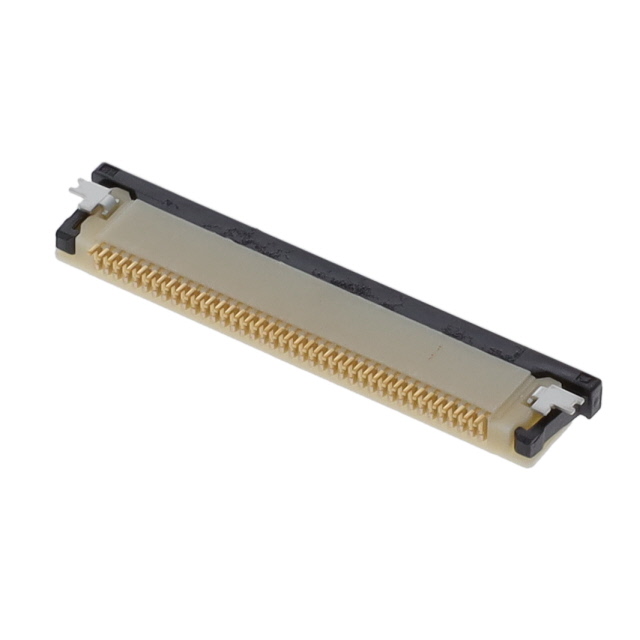

Amphenol ICC (FCI) 62684-40210E9ALF	85 °C	-55 °C	0.3 mm	50 V	Solder	Black	Surface Mount Right Angle	Thermoplastic Glass Filled	0.5 mm	0.02 in	20	Tapered	Solder Retention Zero Insertion Force (ZIF)	40	Slide Lock	Contacts Top	Gold	FPC	Beige	UL94 V-0	Phosphor Bronze	0.5 A	0.079 in	2 mm	Thermoplastic Glass Filled
Amphenol ICC (FCI) 62684-551151AHLF	85 °C	-55 °C	0.3 mm	50 V	Solder	Black	Surface Mount Right Angle	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.5 mm	0.02 in	20	Tapered	Solder Retention Zero Insertion Force (ZIF)	55 positions	Slide Lock	Contacts Bottom	Gold	FPC	Beige	UL94 V-0	Phosphor Bronze	0.5 A	0.079 in	2 mm	Thermoplastic Glass Filled Halogen Free
Amphenol ICC (FCI) 62684-452160AHLF	85 °C	-55 °C	0.3 mm	50 V	Solder	Black	Surface Mount Right Angle	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.5 mm	0.02 in	20	Tapered	Solder Retention Zero Insertion Force (ZIF)	45	Slide Lock	Contacts Top	Gold	FPC	Beige	UL94 V-0	Phosphor Bronze	0.5 A	0.079 in	2 mm	Thermoplastic Glass Filled Halogen Free

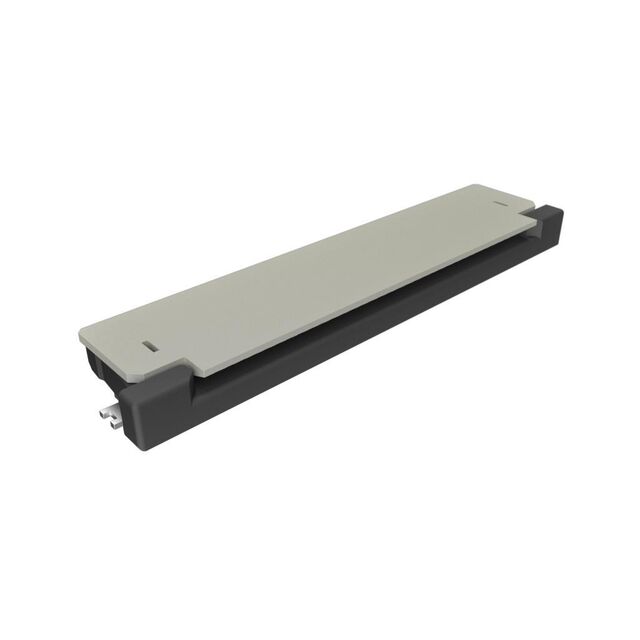

Amphenol ICC (FCI) 62684-362100ALF	85 °C	-55 °C		50 V	Solder	Brown	Surface Mount Right Angle	Polyamide (PA9T) Nylon 9T Glass Filled	0.5 mm	0.02 in	20	Notched		36	Slide Lock	Contacts Top	Gold	FPC	Beige	UL94 V-0	Phosphor Bronze	0.5 A	0.079 in	2 mm	Thermoplastic Glass Filled	0.3 mm 0.33 mm
Amphenol ICC (FCI) 62684-322100	85 °C	-55 °C	0.3 mm	50 V	Solder	Black	Surface Mount Right Angle	Thermoplastic Glass Filled	0.5 mm	0.02 in	20	Straight Tapered	Solder Retention Zero Insertion Force (ZIF)		Slide Lock	Contacts Top	Solder Plating	FFC FPC	Beige	UL94 V-0	Phosphor Bronze	0.5 A	0.079 in	2 mm	Thermoplastic Glass Filled
Amphenol ICC (FCI) 62684-451100AHLF	85 °C	-55 °C	0.3 mm	50 V	Solder	Black	Surface Mount Right Angle	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	0.5 mm	0.02 in	20	Tapered	Solder Retention Zero Insertion Force (ZIF)	45	Slide Lock	Contacts Bottom	Gold	FPC	Beige	UL94 V-0	Phosphor Bronze	0.5 A	0.079 in	2 mm	Thermoplastic Glass Filled Halogen Free
Amphenol ICC (FCI) 62684-502100ZLF					Solder		Surface Mount Right Angle		0.5 mm	0.02 in				50

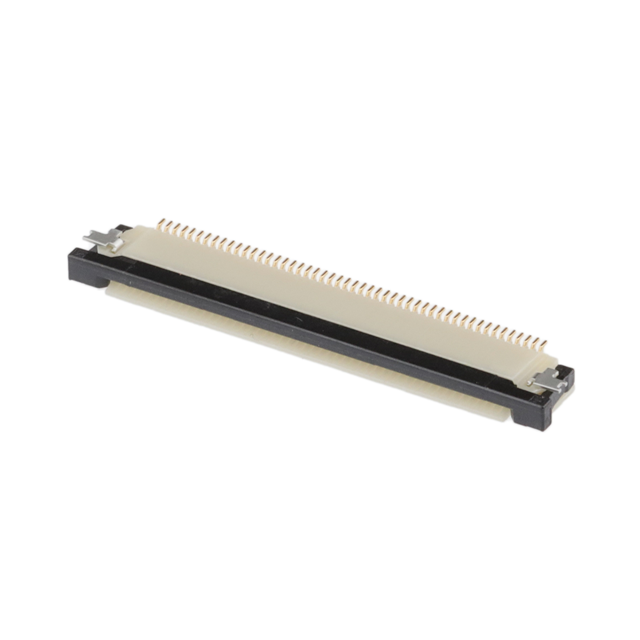

Amphenol ICC (FCI) 62684-50210E9ALF	85 °C	-55 °C	0.3 mm	50 V	Solder	Black	Surface Mount Right Angle	Thermoplastic Glass Filled	0.5 mm	0.02 in	20	Tapered	Solder Retention Zero Insertion Force (ZIF)	50	Slide Lock	Contacts Top	Gold	FPC	Beige	UL94 V-0	Phosphor Bronze	0.5 A	0.079 in	2 mm	Thermoplastic Glass Filled
Amphenol ICC (FCI) 62684-381100ALF	85 °C	-55 °C	0.3 mm	50 V	Solder	Black	Surface Mount Right Angle	Polyamide (PA9T) Nylon 9T Glass Filled	0.5 mm	0.02 in	20	Tapered	Solder Retention Zero Insertion Force (ZIF)	38	Slide Lock	Contacts Bottom	Gold	FPC	Beige	UL94 V-0	Phosphor Bronze	0.5 A	0.079 in	2 mm	Thermoplastic Glass Filled

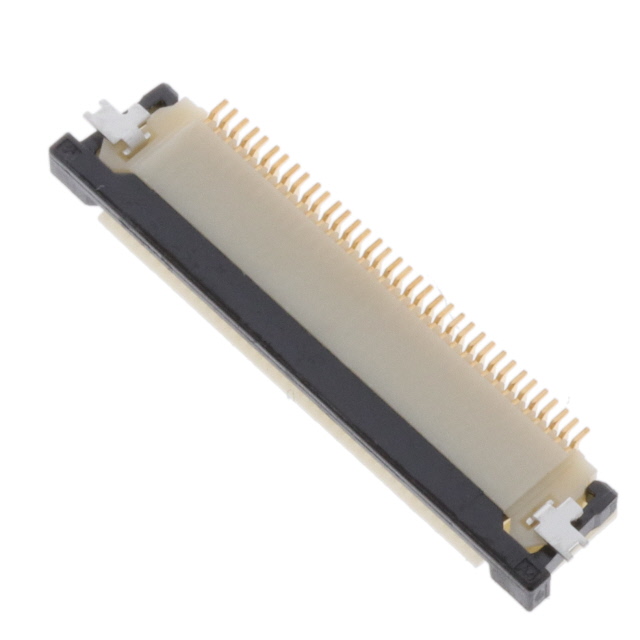

Amphenol ICC (FCI) 62684-36210E9ALF	85 °C	-55 °C	0.3 mm	50 V	Solder	Black	Surface Mount Right Angle	Thermoplastic Glass Filled	0.5 mm	0.02 in	20	Tapered	Solder Retention Zero Insertion Force (ZIF)	36	Slide Lock	Contacts Top	Gold	FPC	Beige	UL94 V-0	Phosphor Bronze	0.5 A	0.079 in	2 mm	Thermoplastic Glass Filled
