CLU058 Series

Catalog

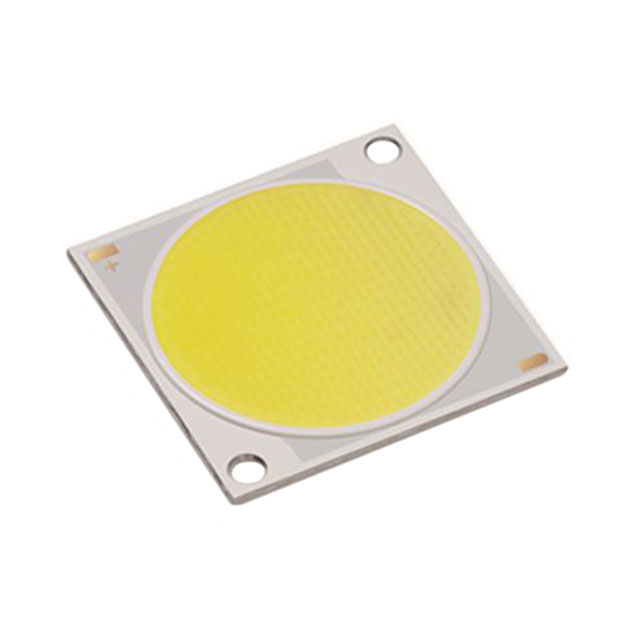

LED COB CLU058 COOL WHT SQ 6500K

Part	Current - Test	Type	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	CCT (K)	Configuration	Luminous Flux @ Current/Temperature	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Lens Type	Current - Max [Max]	Color	Temperature - Test	CCT (K)
Citizen Finedevice Co Ltd CLU058-1825C4-653M2K1	2.25 A	Chip On Board (COB)	32.8 mm	80	6500 K	Square	18520 lm	1.4 mm	38 mm	38 mm	52 V	158 lm/W	Flat	5.75 A	Cool White	85 °C
Citizen Finedevice Co Ltd CLU058-1825C4-353H5K2	2.25 A	Chip On Board (COB)	32.8 mm	90	3500 K	Square	14648 lm	1.4 mm	38 mm	38 mm	52 V	125 lm/W	Flat	5.75 A	Warm White	85 °C	3-Step MacAdam Ellipse
Citizen Finedevice Co Ltd CLU058-1825C4-353H5M3-F1	2.25 A	Chip On Board (COB)	32.8 mm	90	3500 K	Square	16630 lm	1.4 mm	38 mm	38 mm	51.1 V	145 lm/W	Flat	5.75 A	Warm White	25 °C
Citizen Finedevice Co Ltd CLU058-3618C4-30AL7K3	1.62 A	Chip On Board (COB)	32.8 mm	70	3000 K	Square	25313 lm	1.4 mm	38 mm	38 mm	112.3 V	139 lm/W	Flat	4.14 A	Warm White	85 °C	3-Step MacAdam Ellipse
Citizen Finedevice Co Ltd CLU058-1825C4-273H5K2	2.25 A	Chip On Board (COB)	32.8 mm	90	2700 K	Square	13750 lm	1.4 mm	38 mm	38 mm	52 V	118 lm/W	Flat	5.75 A	Warm White	85 °C	3-Step MacAdam Ellipse
Citizen Finedevice Co Ltd CLU058-1825C4-40AL7K3	2.25 A	Chip On Board (COB)	32.8 mm	70	4000 K	Square	18986 lm	1.4 mm	38 mm	38 mm	52 V		Flat	5.75 A	Neutral White	85 °C	3-Step MacAdam Ellipse
