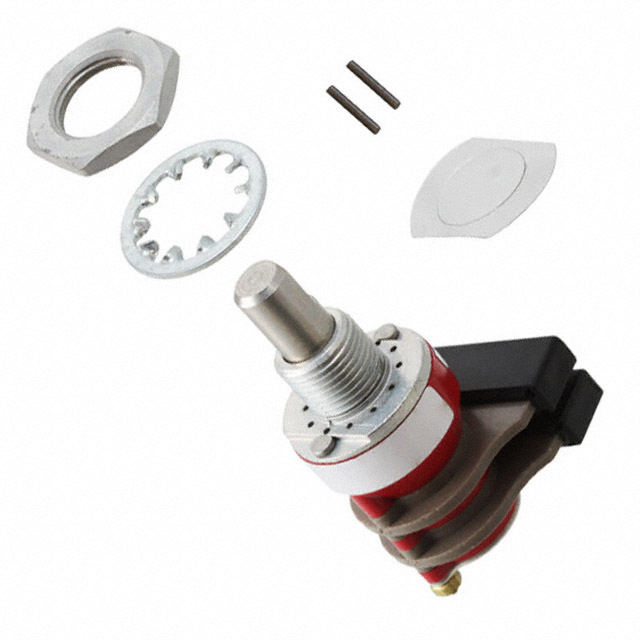

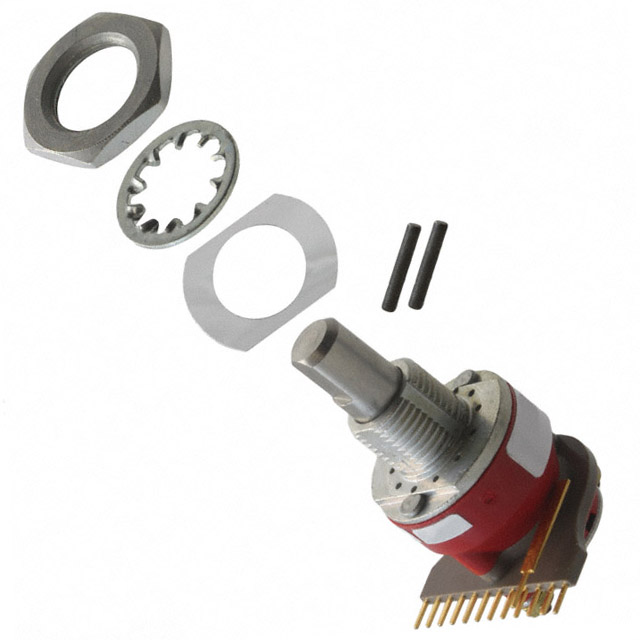

71BDF30 Series

Catalog

SWITCH ROTARY 2-12POS 250MA 115V

Part	Current Rating (Amps)	Angle of Throw	Voltage Rating - AC	Contact Material	Number of Decks	Actuator Length [x]	Termination Style	Circuit per Deck	Contact Timing	Number of Positions [Max]	Number of Positions [Min]	Voltage Rating - DC	Number of Poles per Deck	Mounting Type	Depth Behind Panel [z]	Index Stops	Actuator Type	Number of Decks [custom]	Depth Behind Panel
Grayhill Inc. 71BDF30-04-1-AJS	250 mA	30 °	115 V	Silver Alloy	4	9.53 mm	PC Pin	SP12T	Shorting (MBB)	12	2	30 V	1	Panel Mount Right Angle Through Hole	35.94 mm	Adjustable	Flatted (6.35mm Dia)
Grayhill Inc. 71BDF30-01-1-AJN	250 mA	30 °	115 V	Silver Alloy		9.53 mm	PC Pin	SP12T	Non-Shorting (BBM)	12	2	30 V	1	Panel Mount Right Angle Through Hole	19.33 mm	Adjustable	Flatted (6.35mm Dia)	1
Grayhill Inc. 71BDF30-07-1-AJN	250 mA	30 °	115 V	Silver Alloy	7	9.53 mm	PC Pin	SP12T	Non-Shorting (BBM)	12	2	30 V	1	Panel Mount Right Angle Through Hole	59.66 mm	Adjustable	Flatted (6.35mm Dia)
Grayhill Inc. 71BDF30-04QAJS	250 mA	30 °	115 V	Silver Alloy	4	9.53 mm	Solder Lug		Shorting (MBB)			30 V	2	Panel Mount	35.94 mm	Adjustable	Flatted (6.35mm Dia)
Grayhill Inc. 71BDF30-06-1-AJS	250 mA	30 °	115 V	Silver Alloy	6	9.53 mm	PC Pin	SP12T	Shorting (MBB)	12	2	30 V	1	Panel Mount Right Angle Through Hole	54.13 mm	Adjustable	Flatted (6.35mm Dia)
Grayhill Inc. 71BDF30-04-1-AJN	250 mA	30 °	115 V	Silver Alloy	4	9.53 mm	PC Pin	SP12T	Non-Shorting (BBM)	12	2	30 V	1	Panel Mount Right Angle Through Hole	35.94 mm	Adjustable	Flatted (6.35mm Dia)
Grayhill Inc. 71BDF30-02-1-AJS	250 mA	30 °	115 V	Silver Alloy	2	9.53 mm	PC Pin	SP12T	Shorting (MBB)	12	2	30 V	1	Panel Mount Right Angle Through Hole		Adjustable	Flatted (6.35mm Dia)		24.87 mm
Grayhill Inc. 71BDF30-08-1-AJN	250 mA	30 °	115 V	Silver Alloy	8	9.53 mm	PC Pin	SP12T	Non-Shorting (BBM)	12	2	30 V	1	Panel Mount Right Angle Through Hole		Adjustable	Flatted (6.35mm Dia)
Grayhill Inc. 71BDF30-02-2-AJS	250 mA	30 °	115 V	Silver Alloy	2	9.53 mm	PC Pin	DP6T	Shorting (MBB)	6	2	30 V	2	Panel Mount Right Angle Through Hole		Adjustable	Flatted (6.35mm Dia)		24.87 mm
Grayhill Inc. 71BDF30-05-2-AJN	250 mA	30 °	115 V	Silver Alloy	5	9.53 mm	PC Pin	DP6T	Non-Shorting (BBM)	6	2	30 V	2	Panel Mount Right Angle Through Hole	41.48 mm	Adjustable	Flatted (6.35mm Dia)
