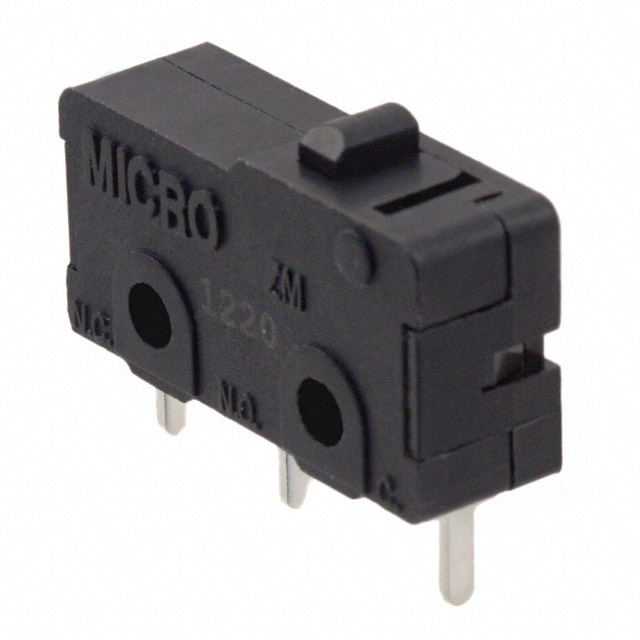

ZM50E Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

MICROSWITCH, SUBMINIATURE, PIN PLUNGER, SPDT, SOLDER, 5 A

Part	Operating Position	Operating Position	Pretravel	Pretravel	Actuator Type	Circuit	Mounting Type	Voltage Rating - AC	Differential Travel	Differential Travel	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Overtravel [custom]	Overtravel [custom]	Release Force	Mechanical Life	Switch Function	Operating Force	Current Rating (Amps)

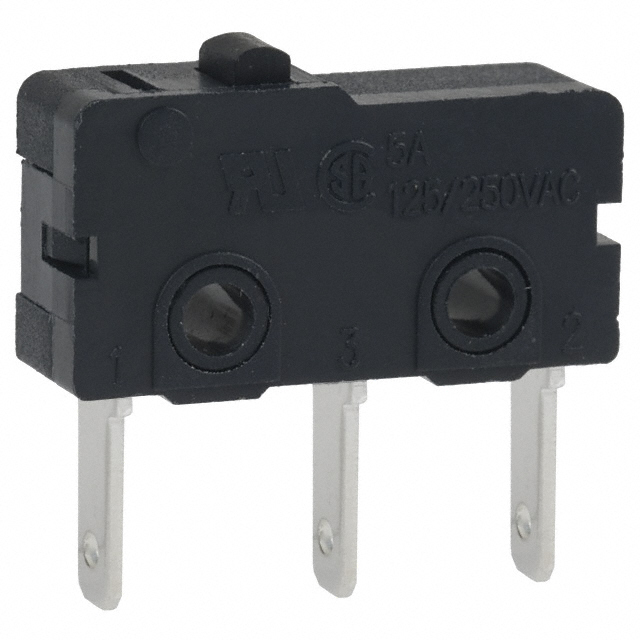

Honeywell Sensing and Productivity Solutions ZM50E70A01	11.4 mm	0.449 "	1.1 mm	0.043 in	Round (Pin Plunger)	SPDT	Chassis Mount	125 V	0.2 mm	0.008 in	6000 Cycles	120 °C	-40 C	Quick Connect - 0.110" (2.8mm)	0.015 "	0.4 mm	35 gf	10000000 Cycles	On-Mom	146 gf	5 A

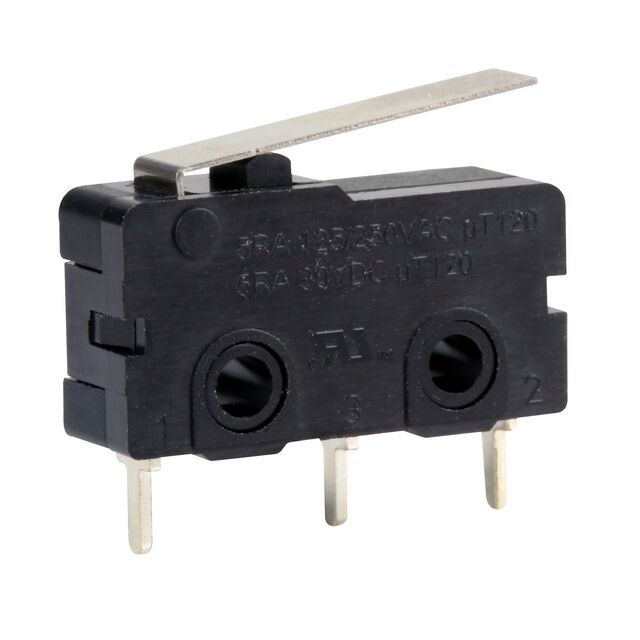

Honeywell Sensing and Productivity Solutions ZM50E20B01	11.8 mm	0.465 in	3.6 mm	0.14 in	Lever Straight	SPDT	Through Hole	125 V	0.81 mm	0.032 in	6000 Cycles	120 °C	-40 C	PC Pin	0.025 in	0.6 mm	10 gf	10000000 Cycles	On-Mom	35 gf	5 A

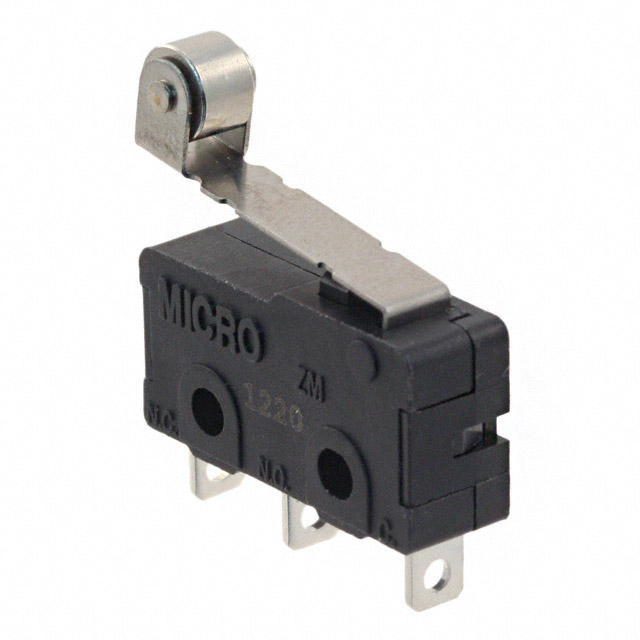

Honeywell Sensing and Productivity Solutions ZM50E10F01	17.5 mm	0.689 in	3.8 mm	0.15 in	Lever Roller	SPDT	Chassis Mount	125 V	0.76 mm	0.03 in	6000 Cycles	120 °C	-40 C	Solder Lug	0.03 "	0.76 mm	8 gf	10000000 Cycles	On-Mom	35 gf	5 A
Honeywell Sensing and Productivity Solutions ZM50E20A03	11.4 mm	0.449 "	1.1 mm	0.043 in	Round (Pin Plunger)	SPST-NO	Through Hole	125 V	0.2 mm	0.008 in	6000 Cycles	120 °C	-40 C	PC Pin	0.015 "	0.4 mm	35 gf	10000000 Cycles	Off-Mom	146 gf	5 A

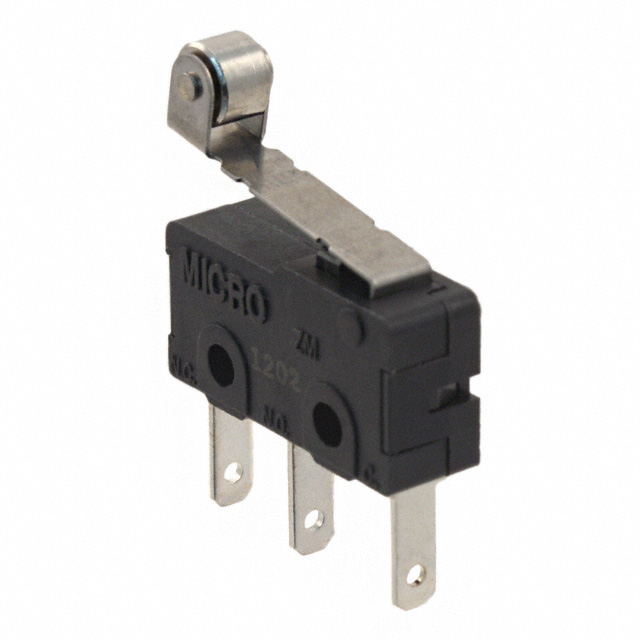

Honeywell Sensing and Productivity Solutions ZM50E70F01	17.5 mm	0.689 in	3.8 mm	0.15 in	Lever Roller	SPDT	Chassis Mount	125 V	0.76 mm	0.03 in	6000 Cycles	120 °C	-40 C	Quick Connect - 0.110" (2.8mm)	0.03 "	0.76 mm	8 gf	10000000 Cycles	On-Mom	35 gf	5 A

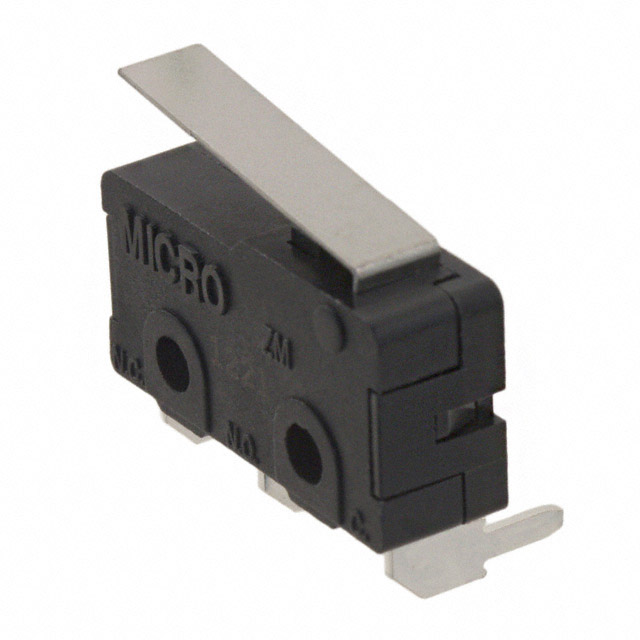

Honeywell Sensing and Productivity Solutions ZM50E60B01	11.8 mm	0.465 in	3.6 mm	0.14 in	Lever Straight	SPDT	Right Angle Through Hole	125 V	0.81 mm	0.032 in	6000 Cycles	120 °C	-40 C	PC Pin	0.025 in	0.6 mm	10 gf	10000000 Cycles	On-Mom	35 gf	5 A
Honeywell Sensing and Productivity Solutions ZM50E50F01	17.5 mm	0.689 in	3.8 mm	0.15 in	Lever Roller	SPDT	Right Angle Through Hole	125 V	0.76 mm	0.03 in	6000 Cycles	120 °C	-40 C	PC Pin	0.03 "	0.76 mm	8 gf	10000000 Cycles	On-Mom	35 gf	5 A
Honeywell Sensing and Productivity Solutions ZM50E10E01	15.1 mm	0.594 in	5.2 mm	0.205 in	Lever Simulated Roller	SPDT	Chassis Mount	125 V			6000 Cycles	120 °C	-40 C	Solder Lug	0.025 in	0.6 mm	8 gf	10000000 Cycles	On-Mom	35 gf	5 A
Honeywell Sensing and Productivity Solutions ZM50E20E01	15.1 mm	0.594 in	5.2 mm	0.205 in	Lever Simulated Roller	SPDT	Through Hole	125 V			6000 Cycles	120 °C	-40 C	PC Pin	0.025 in	0.6 mm	8 gf	10000000 Cycles	On-Mom	35 gf	5 A

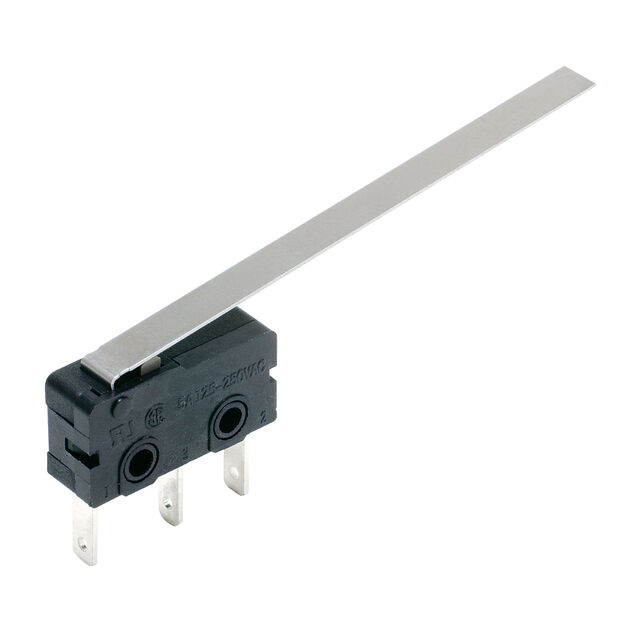

Honeywell Sensing and Productivity Solutions ZM50E70J01	11.8 mm	0.465 in	13.3 mm	0.524 in	Lever Straight	SPDT	Chassis Mount	125 V	2.9 mm	0.114 in	6000 Cycles	120 °C	-40 C	Quick Connect - 0.110" (2.8mm)	0.039 "	1 mm	2.5 gf	10000000 Cycles	On-Mom		5 A
