1546208 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLOCK PLUG 11POS 5MM

Part	Torque - Screw	Torque - Screw	Material Flammability Rating	Contact Material	Insulation Height	Insulation Height	Screw Size	Wire Strip Length [Max]	Wire Strip Length [Min]	Number of Levels	Contact Mating Finish	Termination Style	Pitch	Pitch	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Positions	Color	Type	Plug Wire Entry	Mounting Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - UL	Positions Per Level	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
TE Connectivity AMP Connectors 1-1546208-1	7 Lb-In	0.79 Nm	UL94 V-0	Phosphor Bronze	0.61 in	15.49 mm	M3	7.5 mm	6 mm	1	Tin	Screw - Rising Cage Clamp	0.197 in	5 mm	3 mm²	0.05 mm²	11	Gray	Plug Female Sockets	180 °	Free Hanging (In-Line)	30 AWG	12 AWG	-40 C	110 °C	300 V	11

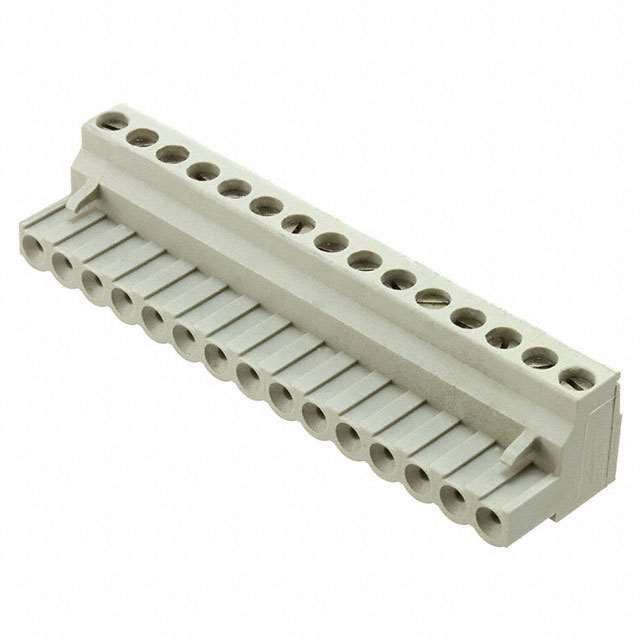

TE Connectivity AMP Connectors 1-1546208-5	7 Lb-In	0.79 Nm	UL94 V-0	Phosphor Bronze	0.61 in	15.49 mm	M3	7.5 mm	6 mm	1	Tin	Screw - Rising Cage Clamp	0.197 in	5 mm	3 mm²	0.05 mm²	15	Gray	Plug Female Sockets	180 °	Free Hanging (In-Line)	30 AWG	12 AWG	-40 C	110 °C	300 V	15

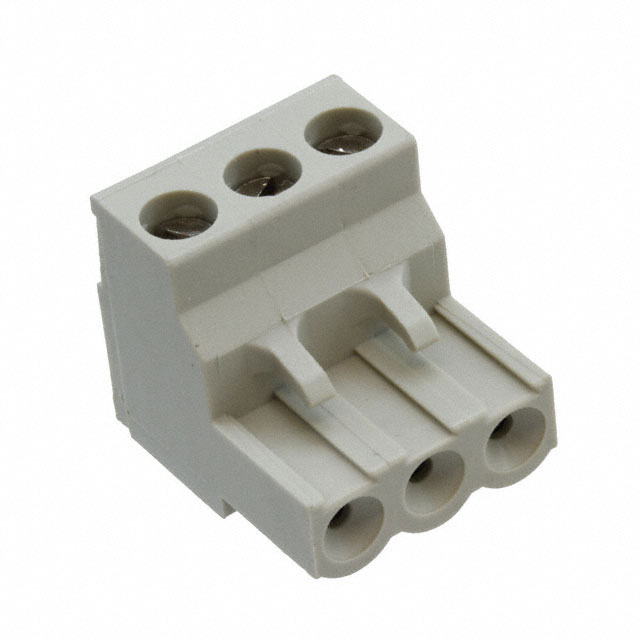

TE Connectivity AMP Connectors 1546208-3	7 Lb-In	0.79 Nm	UL94 V-0	Phosphor Bronze	0.61 in	15.49 mm	M3	7.5 mm	6 mm	1	Tin	Screw - Rising Cage Clamp	0.197 in	5 mm	3 mm²	0.05 mm²		Gray	Plug Female Sockets	180 °	Free Hanging (In-Line)	30 AWG	12 AWG	-40 C	110 °C	300 V	3
TE Connectivity AMP Connectors 1-1546208-0	7 Lb-In	0.79 Nm	UL94 V-0	Phosphor Bronze	0.61 in	15.49 mm	M3	7.5 mm	6 mm	1	Tin	Screw - Rising Cage Clamp	0.197 in	5 mm	3 mm²	0.05 mm²	10	Gray	Plug Female Sockets	180 °	Free Hanging (In-Line)	30 AWG	12 AWG	-40 C	110 °C	300 V	10
TE Connectivity AMP Connectors 1546208-8	7 Lb-In	0.79 Nm	UL94 V-0	Phosphor Bronze	0.61 in	15.49 mm	M3	7.5 mm	6 mm	1	Tin	Screw - Rising Cage Clamp	0.197 in	5 mm	3 mm²	0.05 mm²	8	Gray	Plug Female Sockets	180 °	Free Hanging (In-Line)	30 AWG	12 AWG	-40 C	110 °C	300 V	8	3 mm˛	0.05 mm˛
