P16EET11 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSHBUTTON SPDT 8A 125V

Part	Electrical Life	Mechanical Life	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Marking	Type	Mounting Type	Termination Style	Actuator Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Illumination Type, Color	Voltage Rating - AC	Color - Actuator/Cap	Switch Function	Illumination Type, Color [custom]	Illumination Type, Color [custom]	Illumination Voltage (Nominal)
E-Switch P16EET11BRED	50000 Cycles	100000 Cycles	24 V	55 °C	-20 ░C	SPDT	No Marking	Illuminated Standard	Panel Mount Front	Quick Connect - 0.110" (2.8mm)	Button Rectangular	16 mm	6 A 8 A	Incandescent Red	125 V	Red	On-On
E-Switch P16EET11FGRNGRN	50000 Cycles	100000 Cycles	24 V	55 °C	-20 ░C	SPDT	No Marking	Illuminated Standard	Panel Mount Front	Quick Connect - 0.110" (2.8mm)	Button Rectangular	16 mm	6 A 8 A		125 V	Green	On-On	Neon	Green	110 VAC

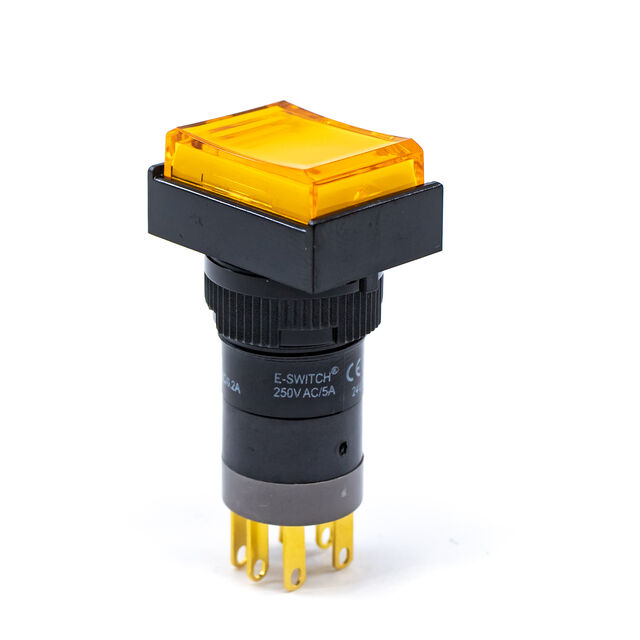

E-Switch P16EET11KYELYEL	50000 Cycles	100000 Cycles	24 V	55 °C	-20 ░C	SPDT	No Marking	Illuminated Standard	Panel Mount Front	Quick Connect - 0.110" (2.8mm)	Button Rectangular	16 mm	6 A 8 A	LED Yellow	125 V	Yellow	On-On			24 V
E-Switch P16EET11BWHT	50000 Cycles	100000 Cycles	24 V	55 °C	-20 ░C	SPDT	No Marking	Illuminated Standard	Panel Mount Front	Quick Connect - 0.110" (2.8mm)	Button Rectangular	16 mm	6 A 8 A	Incandescent White	125 V	White	On-On
E-Switch P16EET11BGRN	50000 Cycles	100000 Cycles	24 V	55 °C	-20 ░C	SPDT	No Marking	Illuminated Standard	Panel Mount Front	Quick Connect - 0.110" (2.8mm)	Button Rectangular	16 mm	6 A 8 A	Green Incandescent	125 V	Green	On-On
