TPS2559-Q1 Series

Automotive 1.2-4.7A adjustable ILIMIT, 2.5-6.5V, 13mΩ USB power switch, active-high

Catalog

Automotive 1.2-4.7A adjustable ILIMIT, 2.5-6.5V, 13mΩ USB power switch, active-high

Part	Function	Contents	Supplied Contents	Type	Utilized IC / Part	Package / Case	Ratio - Input:Output [custom]	Rds On (Typ)	Input Type	Fault Protection	Voltage - Load [Max]	Voltage - Load [Min]	Qualification	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Grade	Interface	Output Type	Mounting Type	Features	Current - Output (Max) [Max]	Switch Type	Supplier Device Package

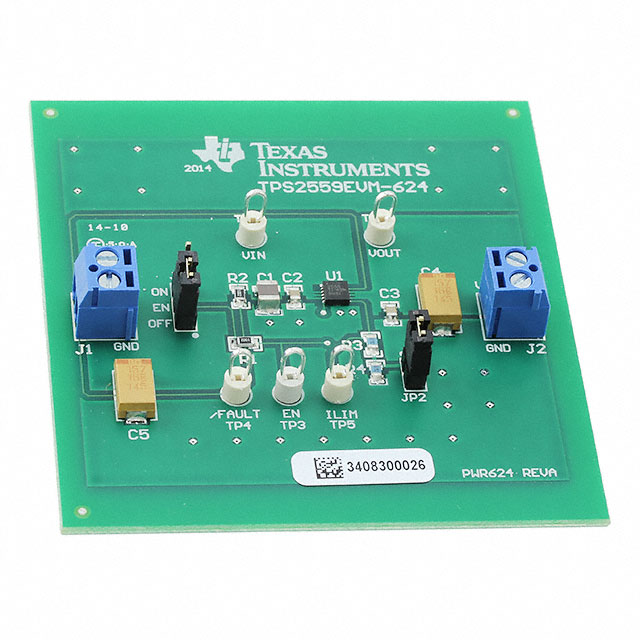

Texas Instruments TPS2559EVM-624	Power Distribution Switch (Load Switch)	Board(s)	Board(s)	Power Management	TPS2559
Texas Instruments TPS2559QWDRCTQ1						10-VFDFN Exposed Pad	1:1	13 mOhm	Non-Inverting	Current Limiting (Adjustable) Over Temperature Reverse Current UVLO	6.5 V	2.5 V	AEC-Q100	1	-40 °C	125 ¯C	High Side	Automotive	On/Off	N-Channel	Surface Mount	Slew Rate Controlled Status Flag	5.5 A	General Purpose	10-VSON (3x3)
Texas Instruments TPS2559DRCT						10-VFDFN Exposed Pad	1:1	13 mOhm	Non-Inverting	Current Limiting (Adjustable) Over Temperature UVLO	6.5 V	2.5 V		1	-40 °C	125 ¯C	High Side		On/Off	N-Channel	Surface Mount	Slew Rate Controlled Status Flag	5.5 A	General Purpose	10-VSON (3x3)
Texas Instruments TPS2559DRCR						10-VFDFN Exposed Pad	1:1	13 mOhm	Non-Inverting	Current Limiting (Adjustable) Over Temperature UVLO	6.5 V	2.5 V		1	-40 °C	125 ¯C	High Side		On/Off	N-Channel	Surface Mount	Slew Rate Controlled Status Flag	5.5 A	General Purpose	10-VSON (3x3)

Catalog

Automotive 1.2-4.7A adjustable ILIMIT, 2.5-6.5V, 13mΩ USB power switch, active-high

Key Features

• Qualified for Automotive Applications AEC-Q100Qualified With the Following Results:Device HBM ESD Classification Level H2Device CDM ESD Classification Level C52.5 to 6.5 V Operating RangeAdjustable 1.2 to 4.7 A I(LIMIT)(±4.7% at 4.7 A)3.5 µs Short Circuit Shutoff (Typical)13-mΩ High-Side MOSFET2-µA Maximum Standby Supply CurrentBuilt-in Soft-StartReverse Current Blocking when Disabled8 kV / 15 kV System-Level ESD Capable10-Pin SON (3-mm × 3-mm) Package withWettable FlanksQualified for Automotive Applications AEC-Q100Qualified With the Following Results:Device HBM ESD Classification Level H2Device CDM ESD Classification Level C52.5 to 6.5 V Operating RangeAdjustable 1.2 to 4.7 A I(LIMIT)(±4.7% at 4.7 A)3.5 µs Short Circuit Shutoff (Typical)13-mΩ High-Side MOSFET2-µA Maximum Standby Supply CurrentBuilt-in Soft-StartReverse Current Blocking when Disabled8 kV / 15 kV System-Level ESD Capable10-Pin SON (3-mm × 3-mm) Package withWettable Flanks

Description

The TPS2559-Q1 power-distribution switch is intended for applications where a low resistance, precision current limit switch is required or heavy capacitive loads are encountered. The TPS2559-Q1 provides up to 5.5 A of continuous load current with a precise current limit set by a single resistor to ground. Output current is maintained at a safe level by switching into a constant-current mode when the output load exceeds the current-limit threshold. During overload events the output current is limited to the level set by R(ILIM). If a persistent overload occurs, the device goes into thermal shutoff to prevent damage to the TPS2559-Q1. The power-switch rise and fall times are controlled to minimize current surges during turn on or off. TheFAULTlogic output asserts low during overcurrent or overtemperature conditions. The TPS2559-Q1 power-distribution switch is intended for applications where a low resistance, precision current limit switch is required or heavy capacitive loads are encountered. The TPS2559-Q1 provides up to 5.5 A of continuous load current with a precise current limit set by a single resistor to ground. Output current is maintained at a safe level by switching into a constant-current mode when the output load exceeds the current-limit threshold. During overload events the output current is limited to the level set by R(ILIM). If a persistent overload occurs, the device goes into thermal shutoff to prevent damage to the TPS2559-Q1. The power-switch rise and fall times are controlled to minimize current surges during turn on or off. TheFAULTlogic output asserts low during overcurrent or overtemperature conditions.
