FR01FC16 Series

Catalog

SWITCH DIP N.O./N.C. SP16T 16 FLUSH SCREWDRIVER 0.1A 5VDC PC PINS 625CYCLES THRU-HOLE TUBE

Part	Body Material	Length [x]	Length [x]	Mechanical Life	Electrical Life	Height Above Board [z]	Height Above Board [z]	Termination Style	Contact Material	Actuator Type	Circuit	Current Rating (Amps)	Mounting Type	Voltage Rating	Number of Positions	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Contact Finish
NKK Switches FR01FC16P-S	Polyamide (PA) Nylon Glass Filled	0.394 in	10 mm	10000 Steps	10000 Cycles	0.15 in	3.81 mm	PC Pin	Copper Alloy	Rotary for Tool	Hexadecimal Complement	100 mA	Through Hole	5 V	16	Flush Recessed	85 °C	-25 °C	2.54 mm	0.1 "	Gold
NKK Switches FR01FC16P	Polyamide (PA) Nylon Glass Filled	0.394 in	10 mm	10000 Steps	10000 Cycles	0.15 in	3.81 mm	PC Pin	Copper Alloy	Rotary for Tool	Hexadecimal Complement	100 mA	Through Hole	5 V	16	Flush Recessed	85 °C	-25 °C	2.54 mm	0.1 "	Gold

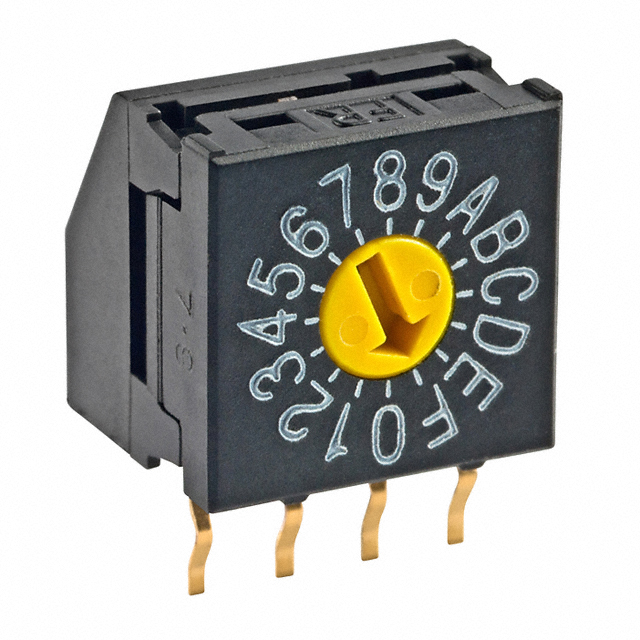

NKK Switches FR01FC16H-06XL	Polyamide (PA) Nylon Glass Filled	0.394 in	10 mm	10000 Steps	10000 Cycles	0.394 in	10 mm	PC Pin	Copper Alloy	Rotary for Tool	Hexadecimal Complement	100 mA	Right Angle Through Hole	5 V	16	Flush Recessed	85 °C	-25 °C	2.54 mm	0.1 "	Gold

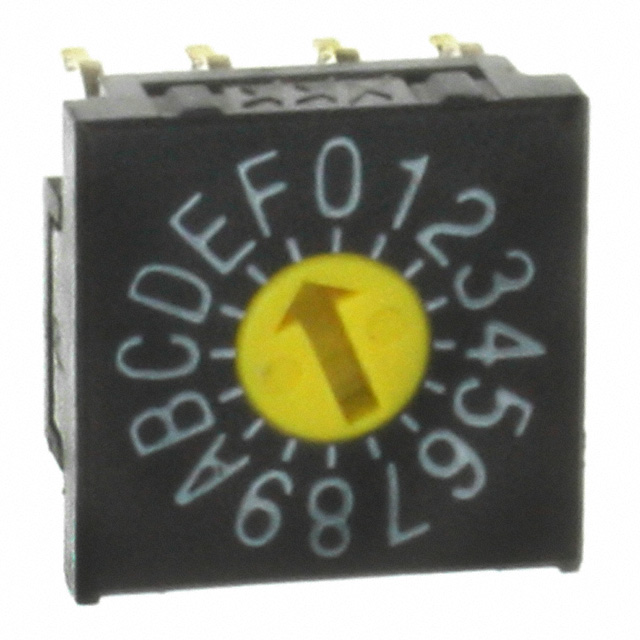

NKK Switches FR01FC16P-W	Polyamide (PA) Nylon Glass Filled	0.394 in	10 mm	10000 Steps	10000 Cycles	0.15 in	3.81 mm	PC Pin	Copper Alloy	Rotary for Tool	Hexadecimal Complement	100 mA	Through Hole	5 V	16	Flush Recessed	85 °C	-25 °C	2.54 mm	0.1 "	Gold
NKK Switches FR01FC16H-06XL-S	Polyamide (PA) Nylon Glass Filled	0.394 in	10 mm	10000 Steps	10000 Cycles	0.394 in	10 mm	PC Pin	Copper Alloy	Rotary for Tool	Hexadecimal Complement	100 mA	Right Angle Through Hole	5 V	16	Flush Recessed	85 °C	-25 °C	2.54 mm	0.1 "	Gold
NKK Switches FR01FC16P-W-S	Polyamide (PA) Nylon Glass Filled	0.394 in	10 mm	10000 Steps	10000 Cycles	0.15 in	3.81 mm	PC Pin	Copper Alloy	Rotary for Tool	Hexadecimal Complement	100 mA	Through Hole	5 V	16	Flush Recessed	85 °C	-25 °C	2.54 mm	0.1 "	Gold
