EXB-F8 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
RES NETWORK 12 RES MULT OHM 8SIP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Temperature Coefficient | Package / Case | Number of Pins | Resistance (Ohms) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Supplier Device Package | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Tolerance | Mounting Type | Power Per Element | Circuit Type | Number of Resistors | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | -55 °C | 125 °C | 200 ppm/°C | 8-SIP | 8 | 1.5 k 3.3 k | 0.195 in | 4.95 mm | 8-SIP | 0.1 in | 0.786 " | 2.54 mm | 19.96 mm | 2 % | Through Hole | 125 mW | Dual Terminator | ||

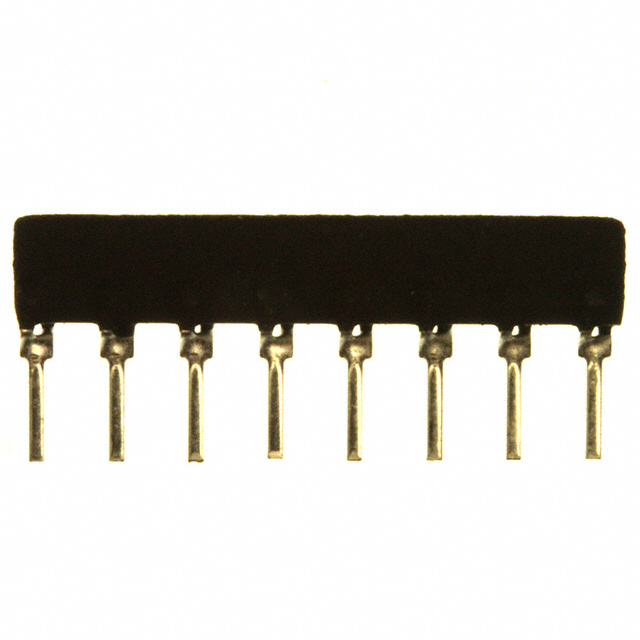

 Panasonic Industrial Automation Sales | -55 °C | 125 °C | 200 ppm/°C | 8-SIP | 8 | 0.195 in | 4.95 mm | 8-SIP | 0.1 in | 0.786 " | 2.54 mm | 19.96 mm | 2 % | Through Hole | 125 mW | Bussed | 7 | 150k | |

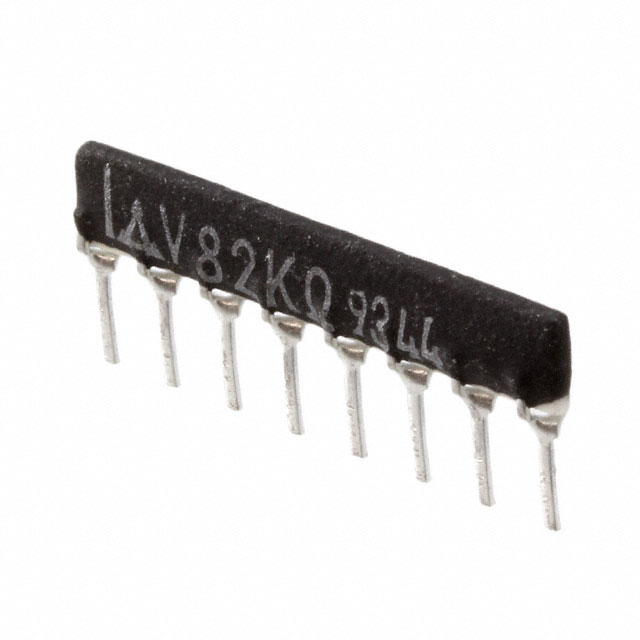

Panasonic Industrial Automation Sales | -55 °C | 125 °C | 200 ppm/°C | 8-SIP | 8 | 82 kOhms | 0.195 in | 4.95 mm | 8-SIP | 0.1 in | 0.786 " | 2.54 mm | 19.96 mm | 2 % | Through Hole | 200 mW | Isolated | 4 |
