B5015 Series

Catalog

FAN BLOWER 51X15.7MM 12VDC WIRE

Part	Material - Blade	Width [x]	Fan Type	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Features	Noise	Voltage - Rated	Weight	Weight	Static Pressure	Static Pressure	Bearing Type	RPM	Air Flow	Air Flow	Termination	Approval Agency	Current Rating (Amps)	Weight [diameter]	Weight [diameter]
Mechatronics Fan Group B5015M12B-BSR	Polybutylene Terephthalate (PBT)	15.7 mm	Blower	51 mm	Square/Rounded	51 mm	Thermal Overload Protector (TOP)	35 dB	12 VDC	0.062 lb	28.12 g	0.35 in H2O	87.2 Pa	Ball	4500 RPM	3 CFM	0.084 mł/min	2 Wire Leads	CE cUL TUV UL
Mechatronics Fan Group B5015H05B1-BSR	Polybutylene Terephthalate (PBT)	15.7 mm	Blower	51 mm	Square/Rounded	51 mm	Speed Sensor (Tach) Thermal Overload Protector (TOP)	40 dB(A)	5 V	0.062 lb	28.12 g	0.56 in H2O	139.5 Pa	Ball	5500 RPM	4 CFM	0.112 m³/min	3 Wire Leads	CE cUL TUV UL	400 mA

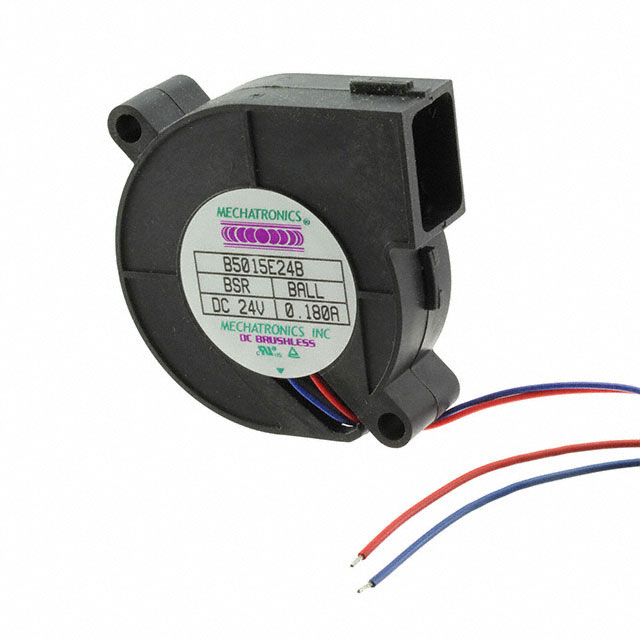

Mechatronics Fan Group B5015E24B-BSR	Polybutylene Terephthalate (PBT)	15.7 mm	Blower	51 mm	Square/Rounded	51 mm	Thermal Overload Protector (TOP)	45 dB(A)	24 VDC	0.062 lb	28.12 g	0.88 in H2O	219.2 Pa	Ball	6500 RPM	5 CFM	0.14 mł/min	2 Wire Leads	CE cUL TUV UL	0.18 A
Mechatronics Fan Group B5015M24B-BSR	Polybutylene Terephthalate (PBT)	15.7 mm	Blower	51 mm	Square/Rounded	51 mm	Thermal Overload Protector (TOP)	35 dB	24 VDC	0.062 lb	28.12 g	0.35 in H2O	87.2 Pa	Ball	4500 RPM	3 CFM	0.084 mł/min	2 Wire Leads	CE cUL TUV UL	0.09 A
Mechatronics Fan Group B5015E12B1-BSR-WS	Polybutylene Terephthalate (PBT)	15.7 mm	Blower	51 mm	Square/Rounded	51 mm	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	45 dB(A)	12 VDC	0.062 lb	28.12 g	0.88 in H2O	219.2 Pa	Ball	6500 RPM	5 CFM	0.14 mł/min	4 Wire Leads	CE cUL TUV UL	0.3 A
Mechatronics Fan Group B5015E12B1-BSR	Polybutylene Terephthalate (PBT)	15.7 mm	Blower	51 mm	Square/Rounded	51 mm	Speed Sensor (Tach) Thermal Overload Protector (TOP)	45 dB(A)	12 VDC	0.062 lb	28.12 g	0.88 in H2O	219.2 Pa	Ball	6500 RPM	5 CFM	0.14 mł/min	3 Wire Leads	CE cUL TUV UL	0.3 A
Mechatronics Fan Group B5015E12B-BSR-CC	Polybutylene Terephthalate (PBT)	15.7 mm	Blower	51 mm	Square/Rounded	51 mm	Conformal Coating Thermal Overload Protector (TOP)	45 dB(A)	12 VDC			0.88 in H2O	219.2 Pa	Ball	6500 RPM	5 CFM	0.14 mł/min	2 Wire Leads	CE cUL TUV UL	0.3 A	0.055 lb	24.95 g
Mechatronics Fan Group B5015H12B2-BSR	Polybutylene Terephthalate (PBT)	15.7 mm	Blower	51 mm	Square/Rounded	51 mm	Locked Rotor Sensor Thermal Overload Protector (TOP)	40 dB(A)	12 VDC	0.062 lb	28.12 g	0.56 in H2O	139.5 Pa	Ball	5500 RPM	4 CFM	0.112 m³/min	3 Wire Leads	CE cUL TUV UL	0.2 A
Mechatronics Fan Group B5015H12B-BSR	Polybutylene Terephthalate (PBT)	15.7 mm	Blower	51 mm	Square/Rounded	51 mm	Thermal Overload Protector (TOP)	40 dB(A)	12 VDC	0.062 lb	28.12 g	0.56 in H2O	139.5 Pa	Ball	5500 RPM	4 CFM	0.112 m³/min	2 Wire Leads	CE cUL TUV UL	0.2 A
Mechatronics Fan Group B5015M12B2-BSR	Polybutylene Terephthalate (PBT)	15.7 mm	Blower	51 mm	Square/Rounded	51 mm	Locked Rotor Sensor Thermal Overload Protector (TOP)	35 dB	12 VDC	0.062 lb	28.12 g	0.35 in H2O	87.2 Pa	Ball	4500 RPM	3 CFM	0.084 mł/min	3 Wire Leads	CE cUL TUV UL
