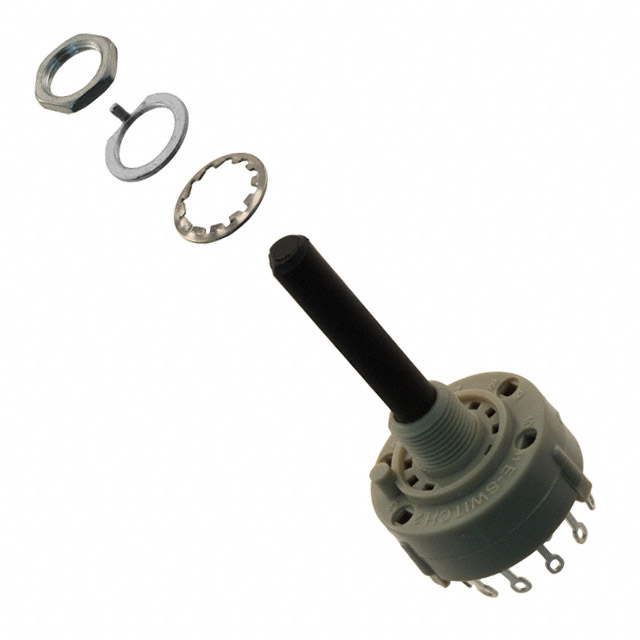

KC26A3 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROTARY 6POS 350MA 125V
| Part | Panel Cutout Dimensions [diameter] | Contact Timing | Number of Decks [custom] | Current Rating (Amps) | Circuit per Deck | Angle of Throw | Contact Material | Voltage Rating - AC | Index Stops | Number of Positions | Contact Finish | Mounting Type | Depth Behind Panel [z] | Actuator Type | Number of Poles per Deck | Termination Style | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 9.8 mm | Non-Shorting (BBM) | 1 | 350 mA | DP6T | 30 ° | Copper Alloy | 125 V | Fixed | 6 | Silver | Panel Mount | 18.5 mm | Flatted (6.35mm Dia) | 2 | Solder Lug | 30 mm |
 E-Switch | 9.8 mm | Shorting (MBB) | 1 | 350 mA | DP6T | 30 ° | Copper Alloy | 125 V | Fixed | 6 | Silver | Panel Mount Through Hole | 14.2 mm | Flatted (6.35mm Dia) | 2 | PC Pin | 30 mm |
E-Switch | 9.8 mm | Non-Shorting (BBM) | 1 | 350 mA | DP6T | 30 ° | Copper Alloy | 125 V | Fixed | 6 | Silver | Panel Mount Through Hole | 14.2 mm | Flatted (6.35mm Dia) | 2 | PC Pin | 38 mm |
