9GV0648 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

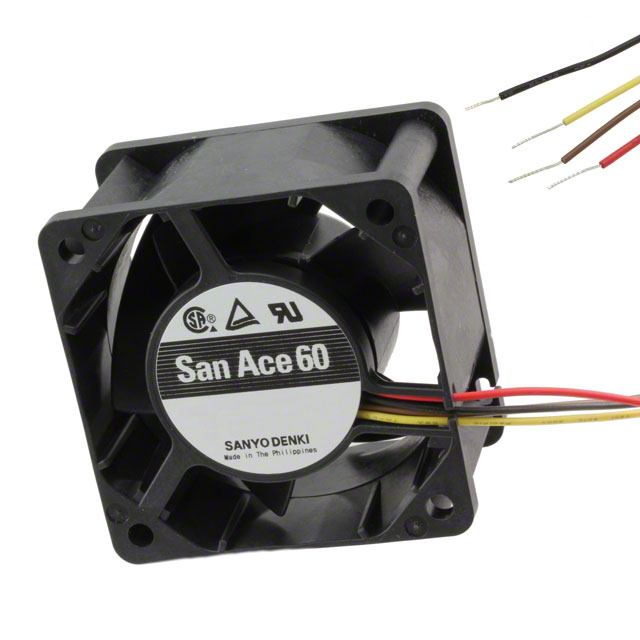

FAN AXIAL 60X38MM 48VDC WIRE
| Part | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Current Rating (Amps) | Air Flow | Air Flow | Lifetime @ Temp. | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] | Static Pressure | Static Pressure | Voltage - Rated | Bearing Type | Weight | Weight | Features | Fan Type | RPM | Noise | Width [y] | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | Plastic | 38 VDC | 57 VDC | Plastic | 0.5 A | 2.13 mł/min | 76 CFM | 40000 Hrs | 24 W | -20 ░C | 70 °C | 2.48 in H2O | 617.7 Pa | 48 VDC | Ball | 130.18 g | 0.287 lb | PWM Control Speed Sensor (Tach) | Tubeaxial | 14500 RPM | 63 dB | 38 mm | 60 mm | 60 mm | CSA TUV UL | 4 Wire Leads |
