L77DFA15 Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN D-SUB RCPT 15P PNL MNT SLDR

Part	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Material	Dielectric Material	Mounting Type	Current Rating (Amps)	Features	Shell Size, Connector Layout	Contact Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Number of Positions	Contact Finish	Number of Rows [custom]	Flange Feature	Connector Type	Material Flammability Rating	Backset Spacing	Backset Spacing
Amphenol ICC (Commercial Products) L77DFA15SOL2RM8	300 VDC	-55 C	125 °C	Black	Copper Alloy	Thermoplastic Glass Filled	Panel Mount Through Hole	7.5 A	Board Lock	2	Signal	Solder	20 µin	0.51 µm	D-Sub	15	Gold	2	4-40 Mating Side Female Screwlock	Receptacle Female Sockets	UL94 V-0
Amphenol ICC (Commercial Products) L77DFA15S1APN	300 VDC	-55 C	125 °C	Black	Copper Alloy	Thermoplastic Glass Filled	Panel Mount Right Angle Through Hole	7.5 A	Mounting Brackets	2	Signal	Solder	20 µin	0.51 µm	D-Sub	15	Gold	2	Housing/Shell (Unthreaded)	Receptacle Female Sockets	UL94 V-0	10.3 mm	0.406 in
Amphenol ICC (Commercial Products) L77DFA15SF179A	300 VDC	-55 C	125 °C	Black	Copper Alloy	Thermoplastic Glass Filled	Panel Mount Through Hole	7.5 A		2	Signal	Wire Wrap	20 µin	0.51 µm	D-Sub	15	Gold	2	Housing/Shell (Unthreaded)	Receptacle Female Sockets	UL94 V-0
Amphenol ICC (Commercial Products) L77DFA15POL2	300 VDC	-55 C	155 C	Black	Brass	Thermoplastic Glass Filled	Panel Mount Through Hole	7.5 A	Grounding Indents	2	Signal	Solder	20 µin	0.51 µm	D-Sub	15	Gold	2	Housing/Shell (Unthreaded)	Plug Male Pins	UL94 V-0
Amphenol ICC (Commercial Products) L77DFA15SMP10VF	300 VDC	-55 C	155 C	Black	Copper Alloy	Thermoplastic Glass Filled		7.5 A		2	Signal		20 µin	0.51 µm	D-Sub	15	Gold	2	4-40 Mating Side Female Screwlock	Receptacle Female Sockets	UL94 V-0
Amphenol ICC (Commercial Products) L77DFA15S1BUN	300 VDC	-55 C	155 C	Black	Copper Alloy	Thermoplastic Glass Filled	Panel Mount Right Angle Through Hole	7.5 A	Mounting Brackets	2	Signal	Solder	20 µin	0.51 µm	D-Sub	15	Gold	2	Housing/Shell (Unthreaded)	Receptacle Female Sockets	UL94 V-0	10.3 mm	0.406 in
Amphenol ICC (Commercial Products) L77DFA15S	300 VDC	-55 C	125 °C	Black	Copper Alloy	Thermoplastic Glass Filled	Panel Mount	7.5 A		2	Signal		20 µin	0.51 µm	D-Sub	15	Gold	2	Housing/Shell (Unthreaded)	Receptacle Female Sockets	UL94 V-0
Amphenol ICC (Commercial Products) L77DFA15SVF	300 VDC	-55 C	125 °C	Black	Copper Alloy	Thermoplastic Glass Filled	Panel Mount Through Hole	7.5 A		2	Signal	Solder	20 µin	0.51 µm	D-Sub	15	Gold	2	4-40 Mating Side Female Screwlock	Receptacle Female Sockets	UL94 V-0

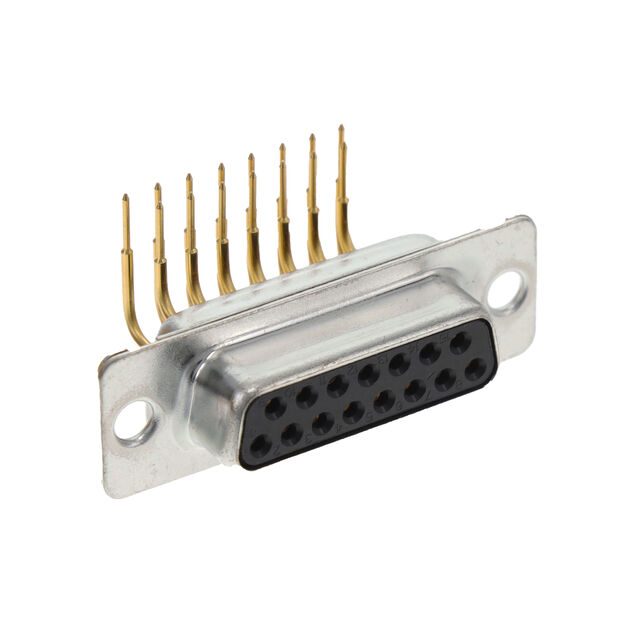

Amphenol ICC (Commercial Products) L77DFA15S1AON	300 VDC	-55 C	125 °C	Black	Copper Alloy	Thermoplastic Glass Filled	Panel Mount Right Angle Through Hole	7.5 A		2	Signal	Solder	20 µin	0.51 µm	D-Sub	15	Gold	2	Housing/Shell (Unthreaded)	Receptacle Female Sockets	UL94 V-0	10.3 mm	0.406 in
Amphenol ICC (Commercial Products) L77DFA15S1BMN	300 VDC	-55 C	125 °C	Black	Copper Alloy	Thermoplastic Glass Filled	Panel Mount Right Angle Through Hole	7.5 A	Mounting Brackets	2	Signal	Solder	20 µin	0.51 µm	D-Sub	15	Gold	2	Housing/Shell (Unthreaded)	Receptacle Female Sockets	UL94 V-0	10.3 mm	0.406 in
