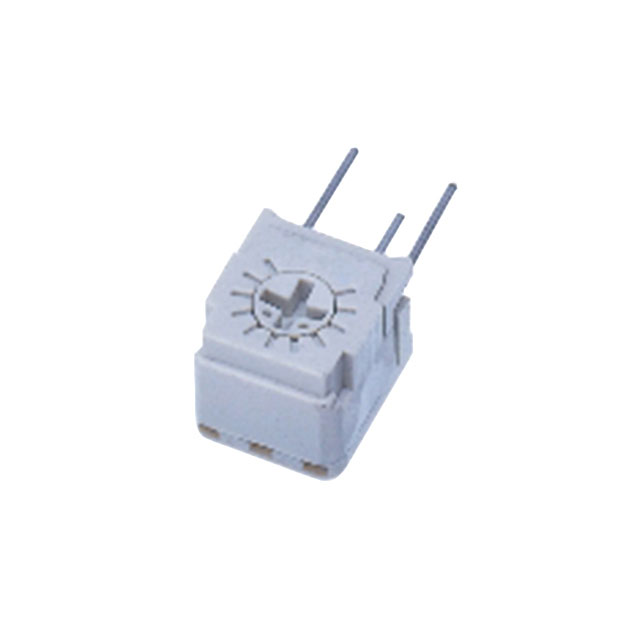

FT63EX Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 1K OHM 0.5W PC PIN SIDE

Part	Resistance	Power (Watts)	Power (Watts)	Mounting Type	Resistive Material	Termination Style	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Turns	Tolerance	Adjustment Type	Temperature Coefficient
Nidec Components Corporation FT-63EX102	1000 Ohms	0.5 W	0.5 W	Through Hole	Cermet	PC Pins	0.323 in	7 mm	8.2 mm	0.276 in	1	10 %	Side Adjustment	100 ppm/°C
Nidec Components Corporation FT-63EX204	200000 Ohms	0.5 W	0.5 W	Through Hole	Cermet	PC Pins	0.323 in	7 mm	8.2 mm	0.276 in	1	10 %	Side Adjustment	100 ppm/°C
Nidec Components Corporation FT-63EX504		0.5 W	0.5 W	Through Hole	Cermet	PC Pins	0.323 in	7 mm	8.2 mm	0.276 in	1	10 %	Side Adjustment	100 ppm/°C
Nidec Components Corporation FT-63EX502	5 kOhms	0.5 W	0.5 W	Through Hole	Cermet	PC Pins	0.323 in	7 mm	8.2 mm	0.276 in	1	10 %	Side Adjustment	100 ppm/°C
Nidec Components Corporation FT-63EX202	2 kOhms	0.5 W	0.5 W	Through Hole	Cermet	PC Pins	0.323 in	7 mm	8.2 mm	0.276 in	1	10 %	Side Adjustment	100 ppm/°C
Nidec Components Corporation FT-63EX302	3 kOhms	0.5 W	0.5 W	Through Hole	Cermet	PC Pins	0.323 in	7 mm	8.2 mm	0.276 in	1	10 %	Side Adjustment	100 ppm/°C
Nidec Components Corporation FT-63EX503	50000 Ohms	0.5 W	0.5 W	Through Hole	Cermet	PC Pins	0.323 in	7 mm	8.2 mm	0.276 in	1	10 %	Side Adjustment	100 ppm/°C
Nidec Components Corporation FT-63EX200	20 Ohms	0.5 W	0.5 W	Through Hole	Cermet	PC Pins	0.323 in	7 mm	8.2 mm	0.276 in	1	10 %	Side Adjustment	150 ppm/°C
Nidec Components Corporation FT-63EX201	200 Ohms	0.5 W	0.5 W	Through Hole	Cermet	PC Pins	0.323 in	7 mm	8.2 mm	0.276 in	1	10 %	Side Adjustment	100 ppm/°C
Nidec Components Corporation FT-63EX105	1 MOhms	0.5 W	0.5 W	Through Hole	Cermet	PC Pins	0.323 in	7 mm	8.2 mm	0.276 in	1	10 %	Side Adjustment	100 ppm/°C
