310J101 Series

Manufacturer: Cicoil

Catalog

CBL RIBN 34COND 0.05 CLEAR 5'

Part	Ratings	Shielding	Length	Jacket Color	Wire Gauge	Ribbon Thickness	Number of Conductors	Operating Temperature (Max)	Operating Temperature (Min)	Cable Type	Jacket (Insulation) Material	Pitch	Length	Voltage	Ribbon Width	Conductor Material	Current Rating	Insulation Resistance	Pitch - Connector	Cable Termination	Pitch - Cable	Color	Number of Rows	Connector Type	Number of Positions

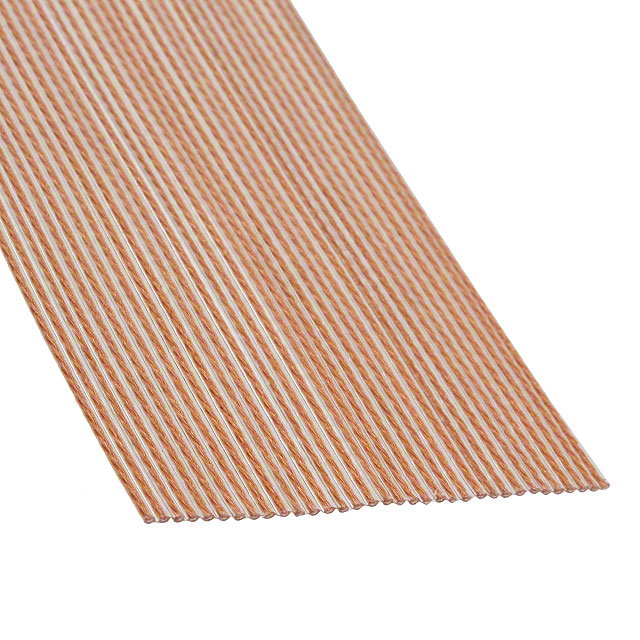

Cicoil 310J101-34	CE UL E324413	Unshielded	5 ft 12 in 50 ft 100 ft 500 ft	Clear	28 AWG	0.035 in	34	500 °F	-65 °C	Flat Cable	Flexx-Sil™	0.05 in	Enter Number of Feet in Order Quantity	450 V	1.7 in	Bare Copper	5 A	200 MOhm
Cicoil 310J101-28-050	CE UL E324413	Unshielded	50 ft	Clear	28 AWG	0.035 in	28	500 °F	-65 °C	Flat Cable	Flexx-Sil™	0.05 in		450 V	1.4 in	Bare Copper	5 A	200 MOhm

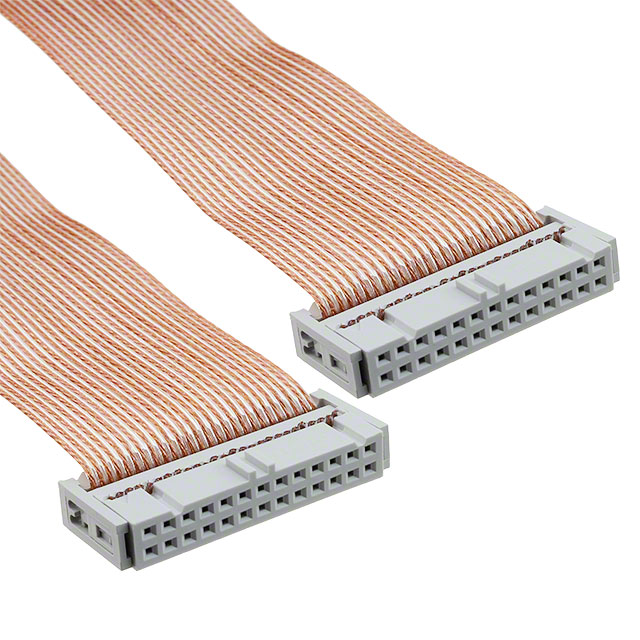

Cicoil 310J101-26-CA006		Unshielded	6 ft																0.1 in	IDC	0.05 in	Clear Ribbon	2	Socket to Socket	26

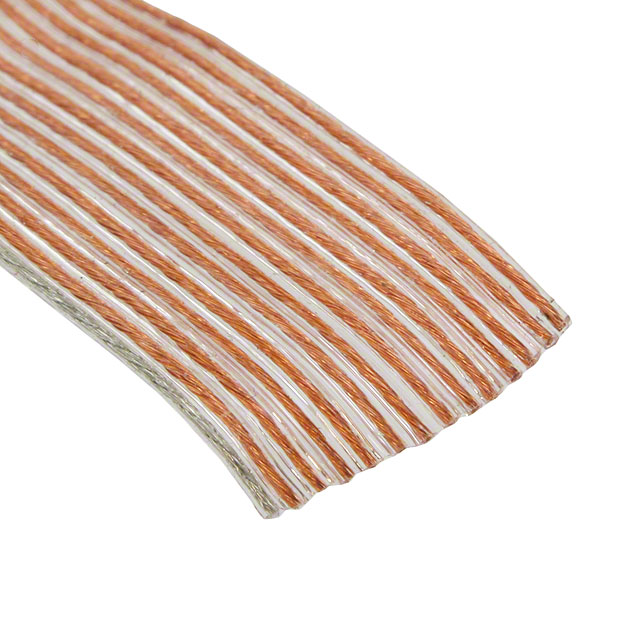

Cicoil 310J101-14	CE UL E324413	Unshielded	5 ft 10 ft 12 in 25 ft 50 ft 1000 ft	Clear	28 AWG	0.035 in	14	500 °F	-65 °C	Flat Cable	Flexx-Sil™	0.05 in	Enter Number of Feet in Order Quantity	450 V	0.7 in	Bare Copper	5 A	200 MOhm
Cicoil 310J101-30-050	CE UL E324413	Unshielded	50 ft	Clear	28 AWG	0.035 in	30	500 °F	-65 °C	Flat Cable	Flexx-Sil™	0.05 in		450 V	1.5 in	Bare Copper	5 A	200 MOhm
Cicoil 310J101-10-CA006		Unshielded	6 ft																0.1 in	IDC	0.05 in	Clear Ribbon	2	Socket to Socket	10
Cicoil 310J101-26	CE UL E324413	Unshielded	10 ft 12 in 25 ft 50 ft 100 ft 500 ft	Clear	28 AWG	0.035 in	26	500 °F	-65 °C	Flat Cable	Flexx-Sil™	0.05 in	Enter Number of Feet in Order Quantity	450 V	1.3 in	Bare Copper	5 A	200 MOhm

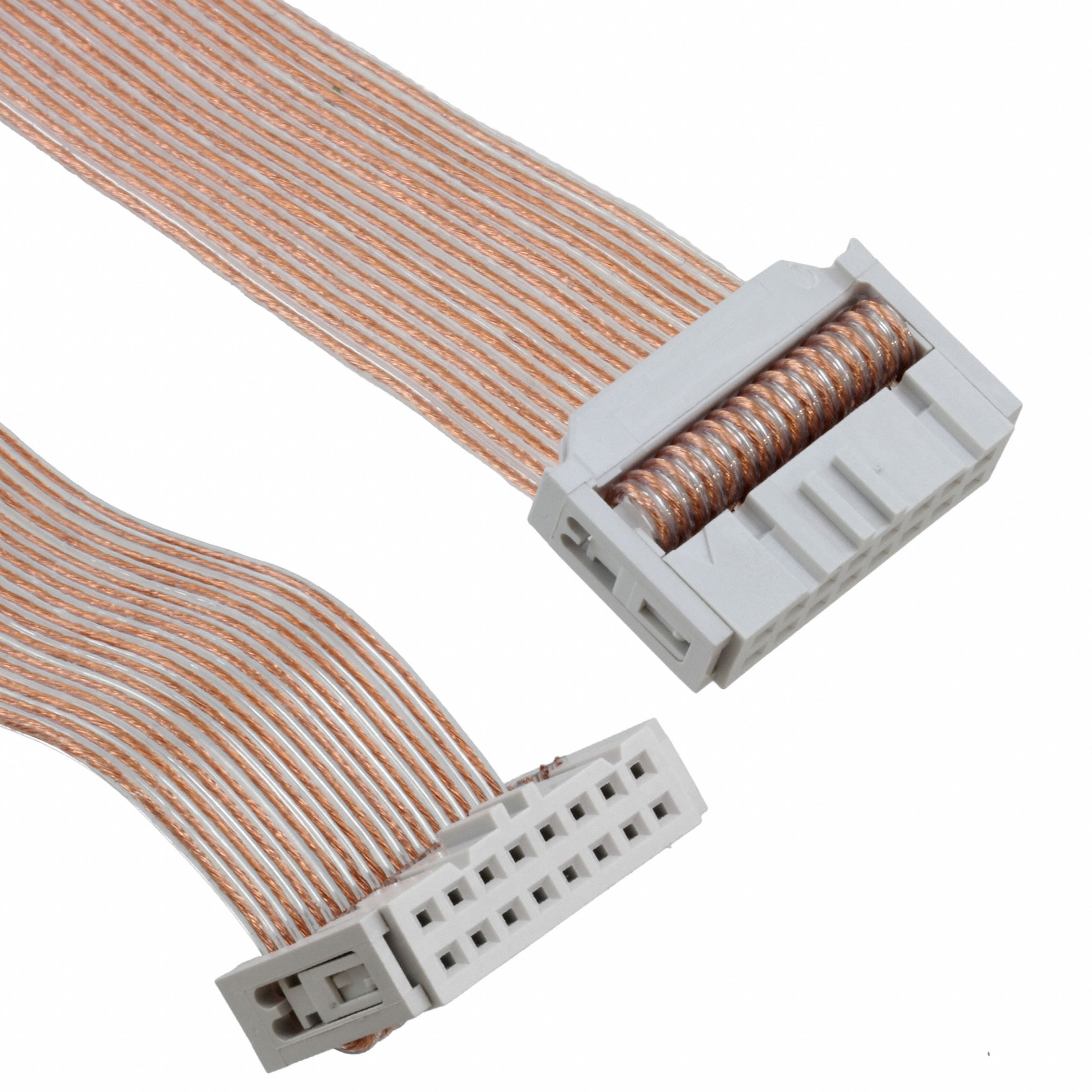

Cicoil 310J101-16-CA006		Unshielded	6 ft																0.1 in	IDC	0.05 in	Clear Ribbon	2	Socket to Socket	16

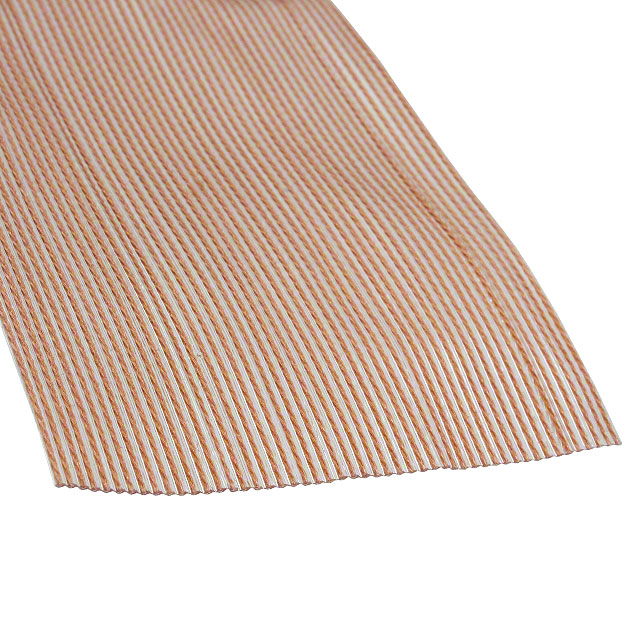

Cicoil 310J101-50	CE UL E324413	Unshielded	5 ft 10 ft 12 in 50 ft 100 ft 200 ft	Clear	28 AWG	0.035 in	50	500 °F	-65 °C	Flat Cable	Flexx-Sil™	0.05 in	Enter Number of Feet in Order Quantity	450 V	2.5 in	Bare Copper	5 A	200 MOhm
Cicoil 310J101-26-CA003		Unshielded	3 ft																0.1 in	IDC	0.05 in	Clear Ribbon	2	Socket to Socket	26
