D4S10A Series
Manufacturer: Rosenberger
Beta
⌘K

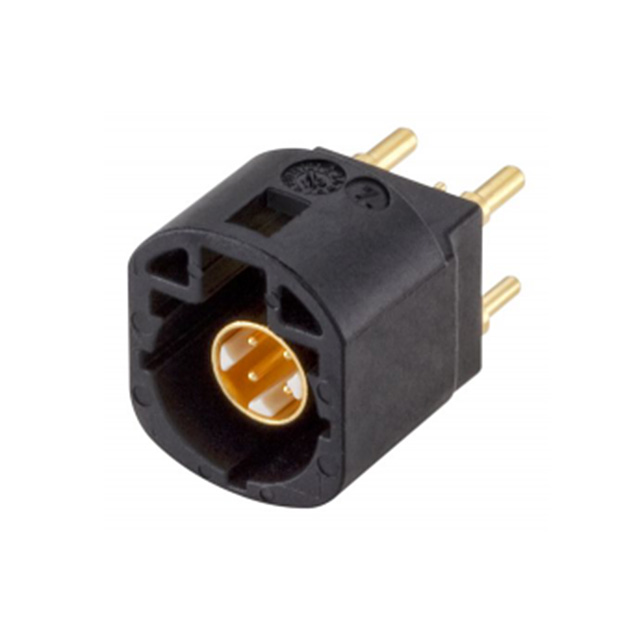

CONN HSD FAKRA PLUG STR 100OHM
| Part | Body Finish | Dielectric Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Plating | Body Material | Impedance | Mounting Type | Center Contact Material | Housing Color | Contact Termination | Number of Ports | Features | Frequency - Max [Max] | Shield Termination | Connector Style | Fastening Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Gold | Liquid Crystal Polymer (LCP) | 100 V | -40 C | 105 ░C | 25 | Gold | Brass | 100 Ohms | Through Hole | Brass | Black | Solder | 1 | Code A | 2 GHz | Solder | Fakra HSD® Quadraxial | Latch Lock | Plug Male Pin |
