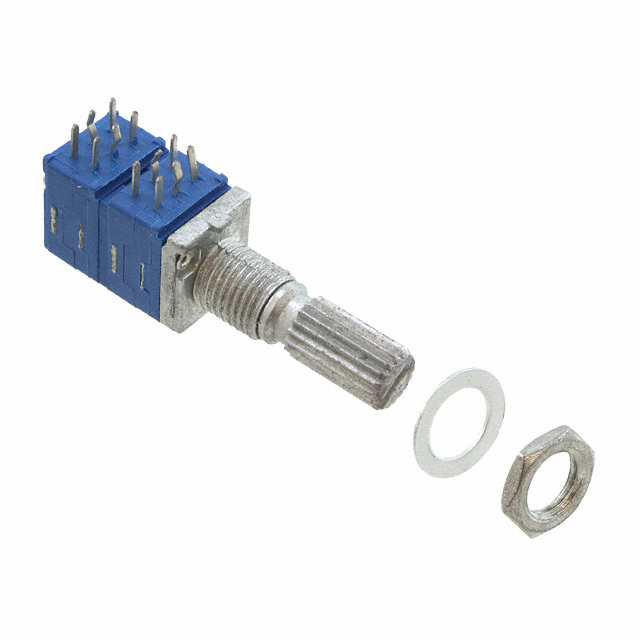

PTD90 Series

Catalog

RES CARBON FILM POT 100K OHM 20% 0.025W 1(ELEC)/1(MECH)TURNS 6MM (22.05 X 9.5 X 11.3MM) PIN PANEL MOUNT/THROUGH HOLE

Part	Actuator Type	Resistance (Ohms)	Taper	Rotation	Resistive Material	Tolerance	Actuator Length [x]	Actuator Length [x]	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Bushing Thread	Mounting Type	Termination Style	Number of Turns	Number of Gangs	Built in Switch	Power (Watts)	Power (Watts)	Adjustment Type	Resistance (Ohms) [custom]	Power (Watts)	Size - Body [x]	Size - Body [y]	Size - Body [y]	Size - Body [x]
Bourns Inc. PTD901-2015K-A104	Knurled and Slotted	100k	Logarithmic	300 ░	Carbon	20 %	15 mm	0.591 in	6 mm	0.236 in	M7 x 0.75	Panel Mount	Board Locks PC Pins	1	1	None	1/40	25 mW	Side Adjustment
Bourns Inc. PTD901-1015K-A503	Knurled and Slotted		Logarithmic	300 ░	Carbon	10 %	15 mm	0.591 in	6 mm	0.236 in	M7 x 0.75	Panel Mount	Board Locks PC Pins	1	1	None	1/40	25 mW	Side Adjustment	50 kOhms
Bourns Inc. PTD902-1015K-B102	Knurled and Slotted	1k	Linear	300 ░	Carbon	10 %	15 mm	0.591 in	6 mm	0.236 in	M7 x 0.75	Panel Mount	Board Locks PC Pins	1	2	None		50 mW	Side Adjustment		0.05 W
Bourns Inc. PTD904-2020K-B103	Knurled and Slotted	10k	Linear	300 ░	Carbon	20 %	20 mm	0.787 in	6 mm	0.236 in	M7 x 0.75	Panel Mount	Board Locks PC Pins	1	4	None		50 mW	Side Adjustment		0.05 W
Bourns Inc. PTD904-2015K-C503	Knurled and Slotted		Reverse Logarithmic	300 ░	Carbon	20 %	15 mm	0.591 in	6 mm	0.236 in	M7 x 0.75	Panel Mount	Board Locks PC Pins	1	4	None	1/40	25 mW	Side Adjustment	50 kOhms
Bourns Inc. PTD904-2015K-B503	Knurled and Slotted		Linear	300 ░	Carbon	20 %	15 mm	0.591 in	6 mm	0.236 in	M7 x 0.75	Panel Mount	Board Locks PC Pins	1	4	None		50 mW	Side Adjustment	50 kOhms	0.05 W	11.3 mm	0.374 "	9.5 mm	0.445 "
Bourns Inc. PTD904-1015K-B103	Knurled and Slotted	10k	Linear	300 ░	Carbon	10 %	15 mm	0.591 in	6 mm	0.236 in	M7 x 0.75	Panel Mount	Board Locks PC Pins	1	4	None		50 mW	Side Adjustment		0.05 W
