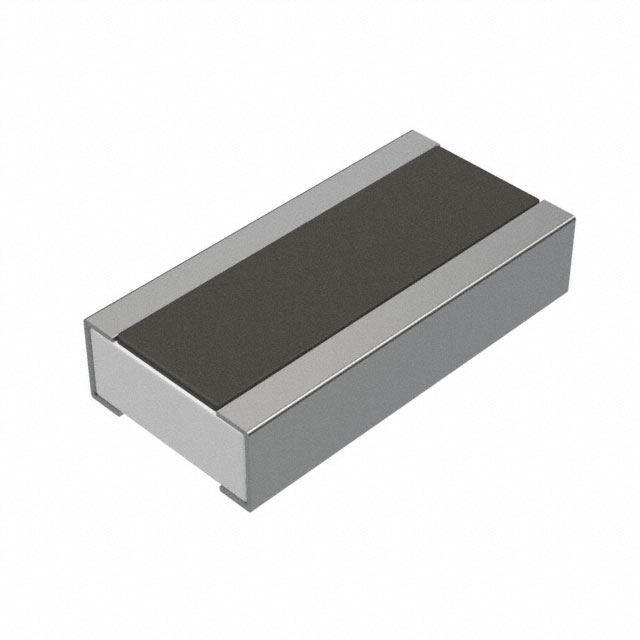

WK73R1J Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

Catalog

RES 22.1 OHM 1% 1/2W 0603

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Power (Watts)	Power (Watts)	Features	Number of Terminations [custom]	Package / Case	Tolerance	Composition	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Resistance
KOA Speer Electronics, Inc. WK73R1JTTD22R1F	155 C	-55 C	100 ppm/°C	0.5 W	0.5 W	Automotive AEC-Q200 Moisture Resistant	2	0306 Wide 0603 (1608 Metric)	1 %	Thick Film	0.55 mm	0.022 in	AEC-Q200	0.031 in	1.6 mm	0.8 mm	0.063 "
KOA Speer Electronics, Inc. WK73R1JTTD68R1F	155 C	-55 C	100 ppm/°C	0.5 W	0.5 W	Automotive AEC-Q200 Moisture Resistant	2	0306 Wide 0603 (1608 Metric)	1 %	Thick Film	0.55 mm	0.022 in	AEC-Q200	0.031 in	1.6 mm	0.8 mm	0.063 "	68.1 Ohms
KOA Speer Electronics, Inc. WK73R1JTTD1910F	155 C	-55 C	100 ppm/°C	0.5 W	0.5 W	Automotive AEC-Q200 Moisture Resistant	2	0306 Wide 0603 (1608 Metric)	1 %	Thick Film	0.55 mm	0.022 in	AEC-Q200	0.031 in	1.6 mm	0.8 mm	0.063 "	191 Ohms
KOA Speer Electronics, Inc. WK73R1JTTD30R1F	155 C	-55 C	100 ppm/°C	0.5 W	0.5 W	Automotive AEC-Q200 Moisture Resistant	2	0306 Wide 0603 (1608 Metric)	1 %	Thick Film	0.55 mm	0.022 in	AEC-Q200	0.031 in	1.6 mm	0.8 mm	0.063 "	30.1 Ohms
KOA Speer Electronics, Inc. WK73R1JTTD4222F	155 C	-55 C	100 ppm/°C	0.5 W	0.5 W	Automotive AEC-Q200 Moisture Resistant	2	0306 Wide 0603 (1608 Metric)	1 %	Thick Film	0.55 mm	0.022 in	AEC-Q200	0.031 in	1.6 mm	0.8 mm	0.063 "	42.2 kOhms
KOA Speer Electronics, Inc. WK73R1JTTD30R0F	155 C	-55 C	100 ppm/°C	0.5 W	0.5 W	Automotive AEC-Q200 Moisture Resistant	2	0306 Wide 0603 (1608 Metric)	1 %	Thick Film	0.55 mm	0.022 in	AEC-Q200	0.031 in	1.6 mm	0.8 mm	0.063 "	30 Ohms
KOA Speer Electronics, Inc. WK73R1JTTD6651F	155 C	-55 C	100 ppm/°C	0.5 W	0.5 W	Automotive AEC-Q200 Moisture Resistant	2	0306 Wide 0603 (1608 Metric)	1 %	Thick Film	0.55 mm	0.022 in	AEC-Q200	0.031 in	1.6 mm	0.8 mm	0.063 "	6.65 kOhms
KOA Speer Electronics, Inc. WK73R1JTTD3601F	155 C	-55 C	100 ppm/°C	0.5 W	0.5 W	Automotive AEC-Q200 Moisture Resistant	2	0306 Wide 0603 (1608 Metric)	1 %	Thick Film	0.55 mm	0.022 in	AEC-Q200	0.031 in	1.6 mm	0.8 mm	0.063 "	3.6 kOhms
KOA Speer Electronics, Inc. WK73R1JTTD1600F	155 C	-55 C	100 ppm/°C	0.5 W	0.5 W	Automotive AEC-Q200 Moisture Resistant	2	0306 Wide 0603 (1608 Metric)	1 %	Thick Film	0.55 mm	0.022 in	AEC-Q200	0.031 in	1.6 mm	0.8 mm	0.063 "	160 Ohms
KOA Speer Electronics, Inc. WK73R1JTTD1872F	155 C	-55 C	100 ppm/°C	0.5 W	0.5 W	Automotive AEC-Q200 Moisture Resistant	2	0306 Wide 0603 (1608 Metric)	1 %	Thick Film	0.55 mm	0.022 in	AEC-Q200	0.031 in	1.6 mm	0.8 mm	0.063 "	18.7 kOhms
