TPS65296 Series
4.5-V to 18-V VIN complete LPDDR4 and LPDDR4X memory power solution
Manufacturer: Texas Instruments
Catalog
4.5-V to 18-V VIN complete LPDDR4 and LPDDR4X memory power solution
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Supplier Device Package | Voltage - Output | Applications | Package / Case | Voltage - Input [Max] | Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|

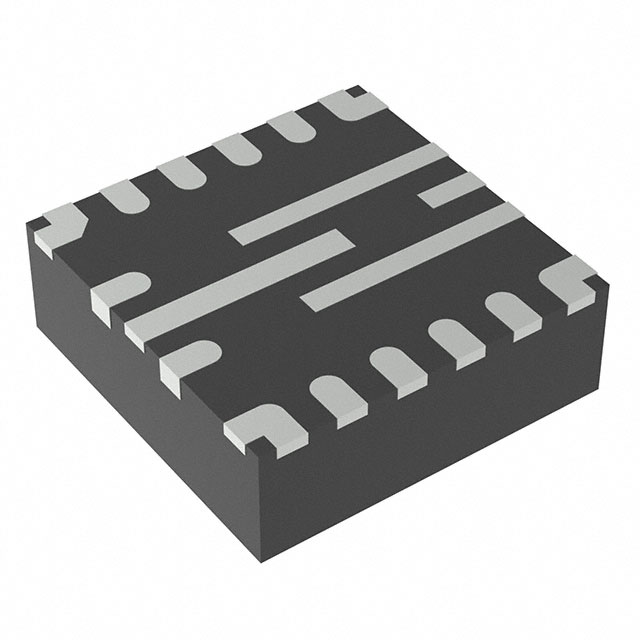

 Texas Instruments | Surface Mount | -40 °C | 125 °C | 2 | 18-VQFN-HR (3x3) | 1.1 V 1.8 V | Converter Notebook Power System | 18-PowerVFQFN | 18 V | 4.5 V |
Key Features
• Synchronous buck converter (VDD2)Input voltage range: 4.5 V to 18 VOutput voltage fixed at 1.1 VD-CAP3™ mode control for fast transient responseContinual output current: 8 AAdvanced Eco-mode™ pulse skipIntegrated 22-mΩ / 8.6-mΩ RDS(on)internal power switch600-kHz switching frequencyInternal soft start: 1.6 msCycle-by-cycle overcurrent protectionLatched output OV/UV protectionsSynchronous buck converter (VDD1)Input voltage range: 3 V to 5.5 VOutput voltage fixed at 1.8 VD-CAP3™ mode control for fast transient responseContinual output current: 1 AAdvanced Eco-mode™ pulse skipIntegrated 150-mΩ /120-mΩ RDS(on)internal power switch580-kHz switching frequencyInternal soft start: 1 msCycle-by-cycle overcurrent protectionLatched output OV/UV protections1.5-A LDO (VDDQ)1.5-A continual output currentRequires only 10 µF of ceramic output capacitorSupport high-Z in S3±30-mV VDDQ output accuracy (DC+AC)Low quiescent current: 150 µAPower good indicatorOutput discharge functionPower up and power down sequencing controlNon-latch for OT and UVLO protections18-pin 3.0-mm × 3.0-mm HotRod™ VQFN packageSynchronous buck converter (VDD2)Input voltage range: 4.5 V to 18 VOutput voltage fixed at 1.1 VD-CAP3™ mode control for fast transient responseContinual output current: 8 AAdvanced Eco-mode™ pulse skipIntegrated 22-mΩ / 8.6-mΩ RDS(on)internal power switch600-kHz switching frequencyInternal soft start: 1.6 msCycle-by-cycle overcurrent protectionLatched output OV/UV protectionsSynchronous buck converter (VDD1)Input voltage range: 3 V to 5.5 VOutput voltage fixed at 1.8 VD-CAP3™ mode control for fast transient responseContinual output current: 1 AAdvanced Eco-mode™ pulse skipIntegrated 150-mΩ /120-mΩ RDS(on)internal power switch580-kHz switching frequencyInternal soft start: 1 msCycle-by-cycle overcurrent protectionLatched output OV/UV protections1.5-A LDO (VDDQ)1.5-A continual output currentRequires only 10 µF of ceramic output capacitorSupport high-Z in S3±30-mV VDDQ output accuracy (DC+AC)Low quiescent current: 150 µAPower good indicatorOutput discharge functionPower up and power down sequencing controlNon-latch for OT and UVLO protections18-pin 3.0-mm × 3.0-mm HotRod™ VQFN package
Description
AI
The TPS65296 device provides a complete power solution for LPDDR4/LPDDR4X memory system with the lowest total cost and minimum space. It meets the JEDEC standard for LPDDR4/LPDDR4X power-up and power-down sequence requirement. The TPS65296 integrates two synchronous buck converters (VDD1 and VDD2) and a 1.5-A LDO (VDDQ).
The TPS65296 employs D-CAP3™ mode with 600-kHz switching frequency for fast transient, good load/line regulation, and support for ceramic output capacitors without an external compensation circuit.
The TPS65296 provides rich functions as well as good efficiency with internal low Rdson power MOSFETs. It supports flexible power state control, placing VDDQ at high-Z in S3 and discharging VDD1, VDD2, and VDDQ in S4/S5 state. Full protection features include OVP, UVP, OCP, UVLO and thermal shutdown protection. The part is available in a thermally enhanced 18-pin HotRod™ VQFN package and is designed to operate under the –40°C to 125°C junction temperature range.
The TPS65296 device provides a complete power solution for LPDDR4/LPDDR4X memory system with the lowest total cost and minimum space. It meets the JEDEC standard for LPDDR4/LPDDR4X power-up and power-down sequence requirement. The TPS65296 integrates two synchronous buck converters (VDD1 and VDD2) and a 1.5-A LDO (VDDQ).
The TPS65296 employs D-CAP3™ mode with 600-kHz switching frequency for fast transient, good load/line regulation, and support for ceramic output capacitors without an external compensation circuit.
The TPS65296 provides rich functions as well as good efficiency with internal low Rdson power MOSFETs. It supports flexible power state control, placing VDDQ at high-Z in S3 and discharging VDD1, VDD2, and VDDQ in S4/S5 state. Full protection features include OVP, UVP, OCP, UVLO and thermal shutdown protection. The part is available in a thermally enhanced 18-pin HotRod™ VQFN package and is designed to operate under the –40°C to 125°C junction temperature range.
