AWHW 34 Series

Catalog

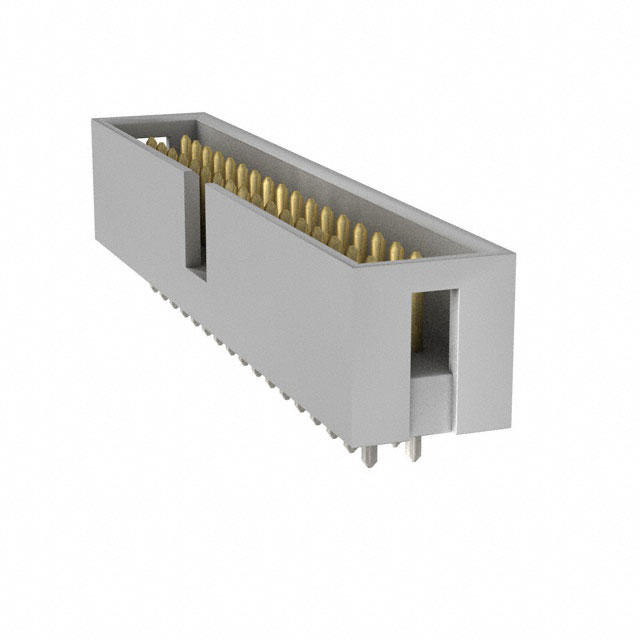

CONN HEADER VERT 34POS 2.54MM

Part	Style	Insulation Color	Connector Type	Number of Positions [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Material	Contact Finish - Post	Number of Rows [custom]	Contact Length - Mating	Contact Length - Mating	Mounting Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Insulation Material	Material Flammability Rating	Features	Contact Shape	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination	Shrouding	Contact Length - Post	Contact Length - Post	Fastening Type	Contact Type

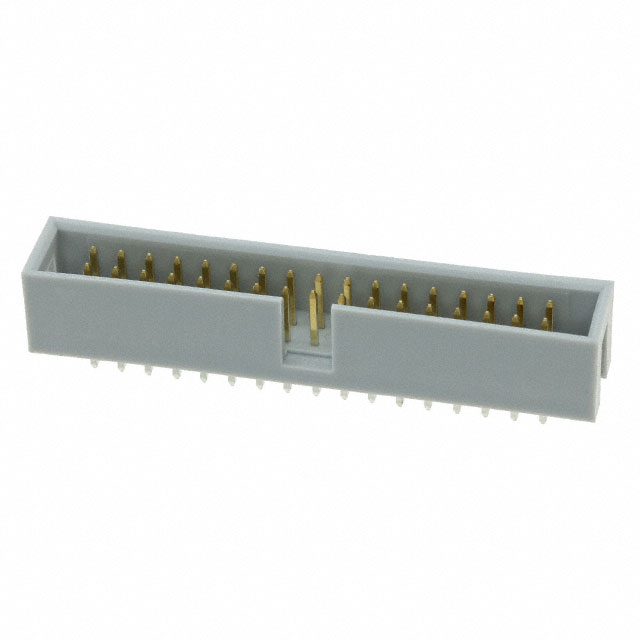

Assmann WSW Components AWHW 34G-0202-T	Board to Cable/Wire	Gray	Header	34	0.1 in	2.54 mm	Flash	All	Brass	Tin	2	0.224 in	5.7 mm	Through Hole	0.354 in	9 mm	0.1 "	2.54 mm	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Keying Slot	Square	Gold	-40 C	105 ░C	3 A	Solder	Shrouded - 4 Wall	0.13 "	3.3 mm	Push-Pull	Male Pin
