1528 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RING CIRC 20AWG #10 CRIMP

Part	Material - Insulation	Wire Gauge	Termination	Contact Finish	Insulation	Stud/Tab Size	Terminal Type	Contact Material	Width - Outer Edges [y]	Width - Outer Edges [y]	Features	Mounting Type	Length - Overall [x]	Length - Overall [x]	Thickness	Thickness	Color	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [x]	Width - Outer Edges [x]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Stud/Tab Size
TE Connectivity Raychem Cable Protection 152891	Nylon Polyamide (PA)	20 AWG	Crimp	Tin	Insulated	10 Stud	Circular	Copper	7.92 mm	0.312 in	Serrated Termination	Free Hanging (In-Line)	20.4 mm	0.803 in	0.031 in	0.79 mm	Purple Red Stripe

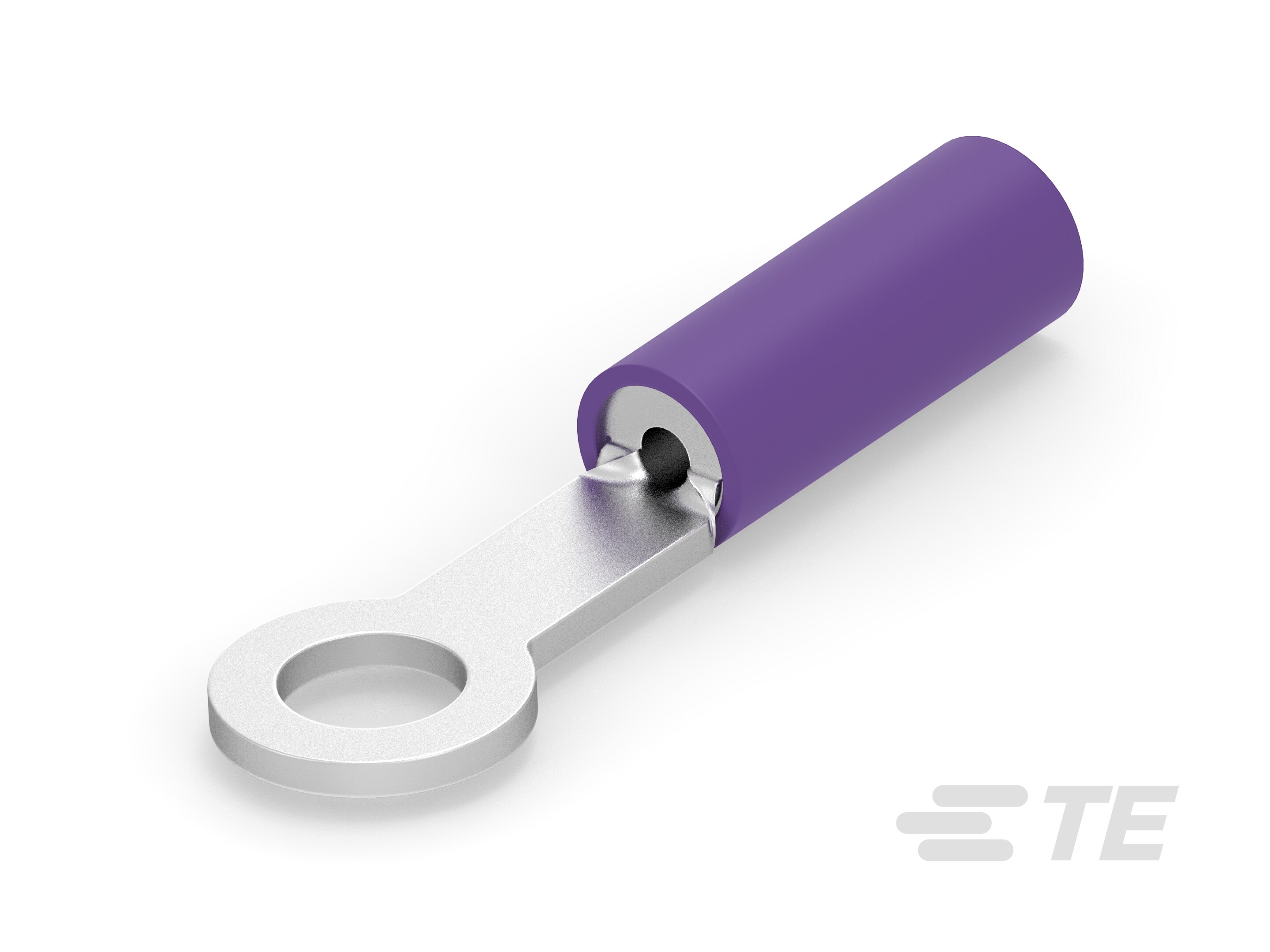

TE Connectivity Raychem Cable Protection 152896	Nylon Polyamide (PA)	20 AWG	Crimp	Tin	Insulated	6 Stud	Circular	Copper	6.35 mm	0.25 "	Serrated Termination	Free Hanging (In-Line)			0.031 in	0.79 mm	Purple
TE Connectivity Raychem Cable Protection 152872	Nylon Polyamide (PA)		Crimp	Tin	Insulated	10 Stud	Circular	Copper			Serrated Termination	Free Hanging (In-Line)	22.02 mm	0.867 in	0.03 in	0.76 mm	White Red Stripe	14 AWG	12 AWG	0.343 in	8.71 mm	2.03 mm	3.18 mm	0.125 "	0.08 in
TE Connectivity Raychem Cable Protection 152879	Nylon Polyamide (PA)		Crimp	Tin	Insulated	0.25 Stud	Circular	Copper	11.91 mm	0.469 in	Serrated Termination	Free Hanging (In-Line)	27.58 mm	1.086 in	0.031 in	0.79 mm	Orange Red Stripe	18 AWG	16 AWG			1.4 mm	2.79 mm	0.11 "	0.055 "

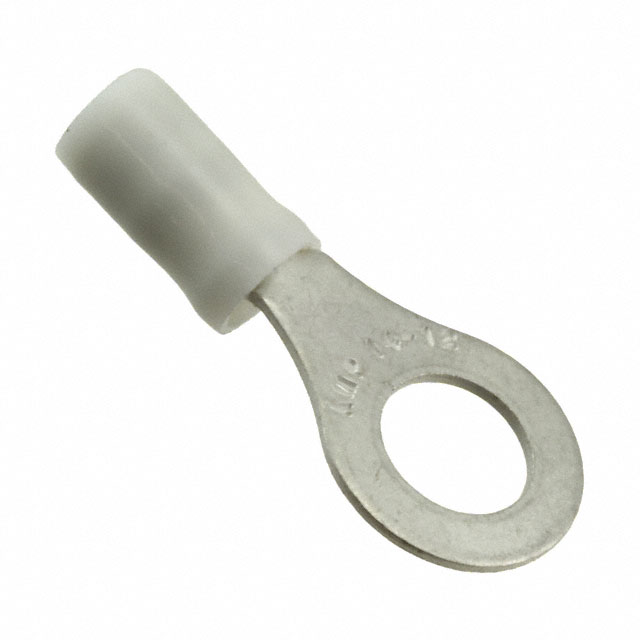

TE Connectivity Raychem Cable Protection 152871	Nylon Polyamide (PA)		Crimp	Tin	Insulated	0.25 Stud	Circular	Copper	11.91 mm	0.469 in	Serrated Termination	Free Hanging (In-Line)	27.58 mm	1.086 in	0.03 in	0.76 mm	White Red Stripe	14 AWG	12 AWG			2.03 mm	3.18 mm	0.125 "	0.08 in

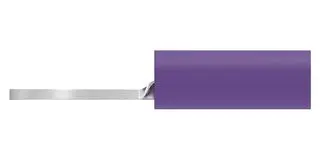

TE Connectivity Raychem Cable Protection 152895	Nylon Polyamide (PA)	20 AWG	Crimp	Tin	Insulated	6 Stud	Circular	Copper	7.14 mm	0.281 in	Serrated Termination	Free Hanging (In-Line)	20 mm	0.787 "	0.031 in	0.79 mm	Purple

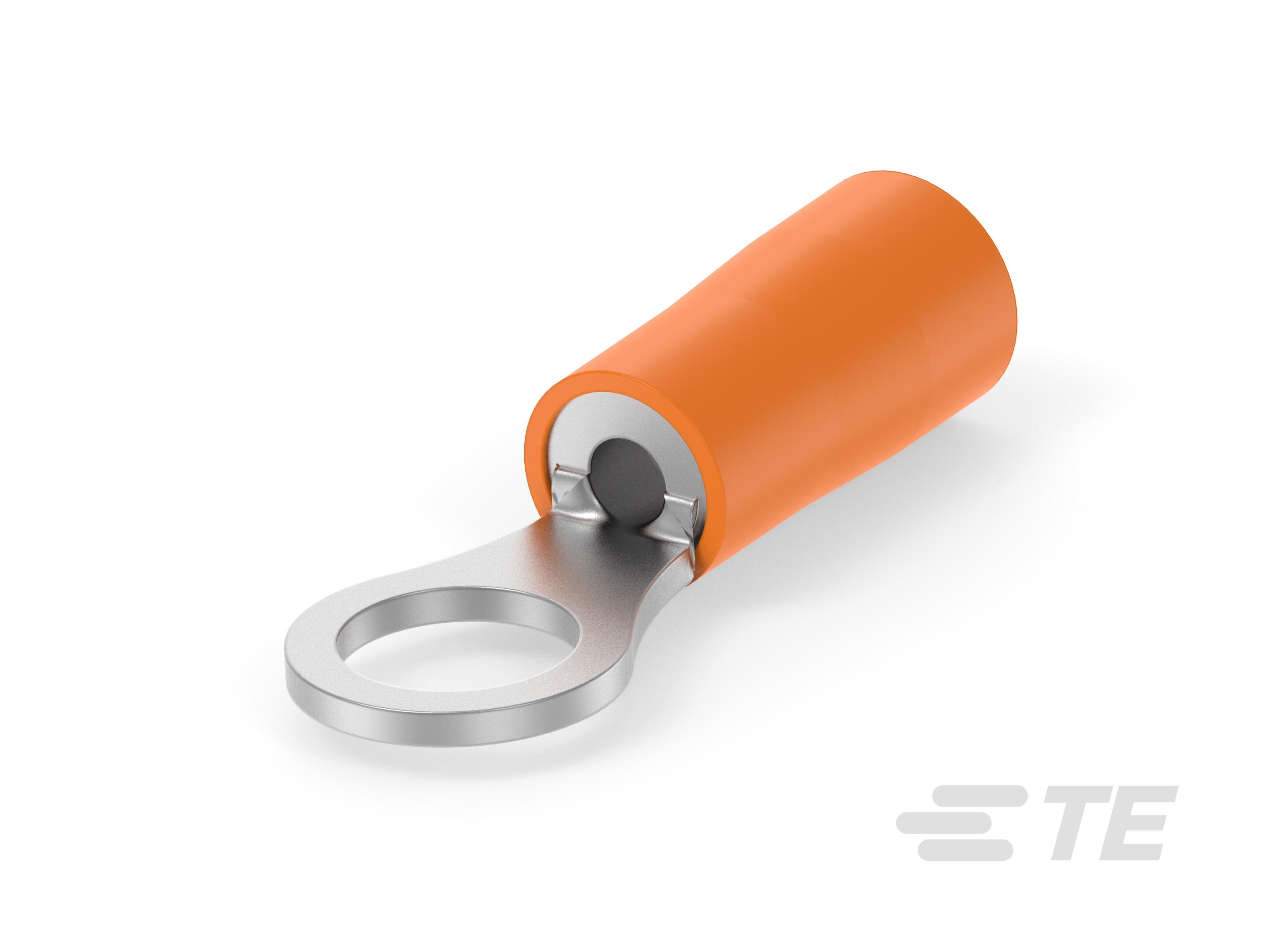

TE Connectivity Raychem Cable Protection 152881	Nylon Polyamide (PA)		Crimp	Tin	Insulated	10 Stud	Circular	Copper	7.14 mm	0.281 in	Serrated Termination	Free Hanging (In-Line)	20.45 mm	0.805 in	0.031 in	0.79 mm	Orange Red Stripe	18 AWG	16 AWG			1.4 mm	2.79 mm	0.11 "	0.055 "
TE Connectivity Raychem Cable Protection 152873	Nylon Polyamide (PA)		Crimp	Tin	Insulated		Circular	Copper			Serrated Termination	Free Hanging (In-Line)	22.02 mm	0.867 in	0.03 in	0.76 mm	White	14 AWG	12 AWG	0.343 in	8.71 mm	2.03 mm	3.18 mm	0.125 "	0.08 in	8 Stud
