796637 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERM BLOCK HDR 7POS VERT 5.08MM

Part	Material Flammability Rating	Contact Material	Contact Tail Length	Contact Tail Length	Insulation Height	Insulation Height	Type	Contact Mating Finish	Number of Levels	Mounting Type	Number of Positions	Header Orientation	Pitch	Pitch	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Color	Termination Style	Positions Per Level [custom]	Positions Per Level
TE Connectivity AMP Connectors 796637-7	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.472 "	12 mm	Header Male Pins Shrouded (4 Side)	Tin	1	Through Hole	7	Vertical	5.08 mm	0.2 in	300 V	-40 C	110 °C	Black	Solder	7
TE Connectivity AMP Connectors 796637-5	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.472 "	12 mm	Header Male Pins Shrouded (4 Side)	Tin	1	Through Hole	5	Vertical	5.08 mm	0.2 in	300 V	-40 C	110 °C	Black	Solder		5
TE Connectivity AMP Connectors 1-796637-1	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.472 "	12 mm	Header Male Pins Shrouded (4 Side)	Tin	1	Through Hole	11	Vertical	5.08 mm	0.2 in	300 V	-40 C	110 °C	Black	Solder		11
TE Connectivity AMP Connectors 796637-3	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.472 "	12 mm	Header Male Pins Shrouded (4 Side)	Tin	1	Through Hole		Vertical	5.08 mm	0.2 in	300 V	-40 C	110 °C	Black	Solder		3
TE Connectivity AMP Connectors 2-796637-3	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.472 "	12 mm	Header Male Pins Shrouded (4 Side)	Tin	1	Through Hole	23	Vertical	5.08 mm	0.2 in	300 V	-40 C	110 °C	Black	Solder		23

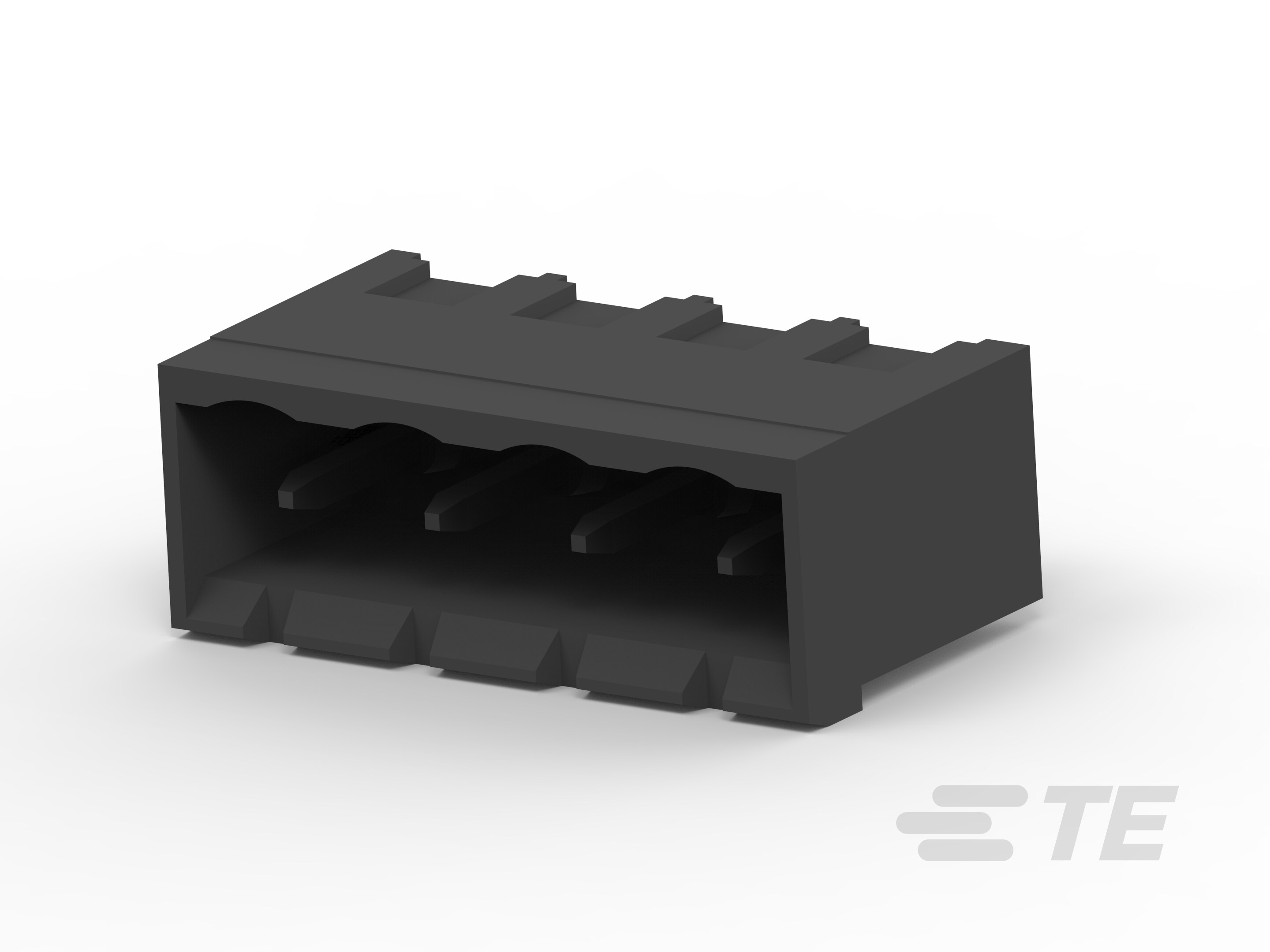

TE Connectivity AMP Connectors 1-796637-3	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.472 "	12 mm	Header Male Pins Shrouded (4 Side)	Tin	1	Through Hole	13	Vertical	5.08 mm	0.2 in	300 V	-40 C	110 °C	Black	Solder		13
TE Connectivity AMP Connectors 796637-8	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.472 "	12 mm	Header Male Pins Shrouded (4 Side)	Tin	1	Through Hole	8	Vertical	5.08 mm	0.2 in	300 V	-40 C	110 °C	Black	Solder		8
TE Connectivity AMP Connectors 1-796637-7	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.472 "	12 mm	Header Male Pins Shrouded (4 Side)	Tin	1	Through Hole		Vertical	5.08 mm	0.2 in	300 V	-40 C	110 °C	Black	Solder		17

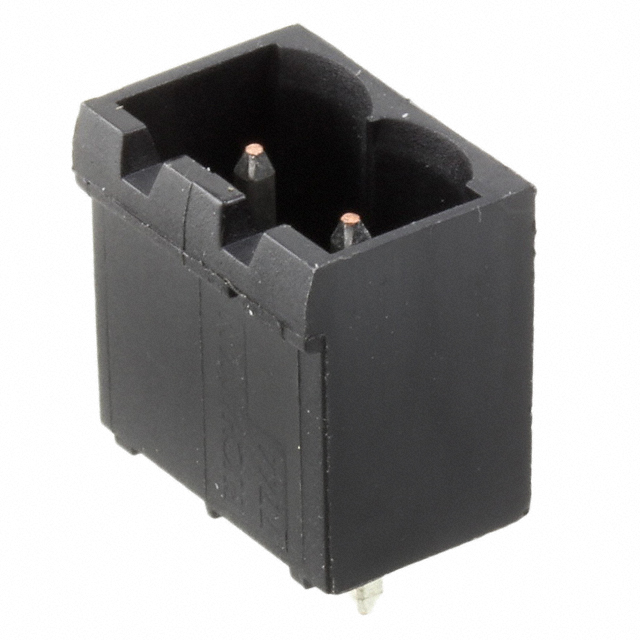

TE Connectivity AMP Connectors 796637-2	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.472 "	12 mm	Header Male Pins Shrouded (4 Side)	Tin	1	Through Hole	2	Vertical	5.08 mm	0.2 in	300 V	-40 C	110 °C	Black	Solder		2
TE Connectivity AMP Connectors 1-796637-2	UL94 V-0	Copper Alloy	0.138 in	3.5 mm	0.472 "	12 mm	Header Male Pins Shrouded (4 Side)	Tin	1	Through Hole	12	Vertical	5.08 mm	0.2 in	300 V	-40 C	110 °C	Black	Solder		12
