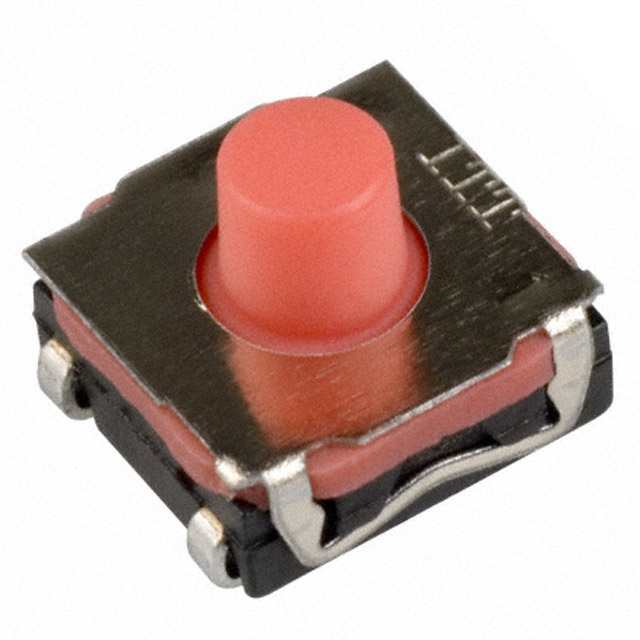

KSC403 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K
SWITCH TACTILE SPST-NO 0.01A 32V
| Part | Mounting Type | Switch Function | Termination Style | Circuit | Illumination | Actuator Orientation | Switch Travel [custom] | Actuator Height off PCB, Vertical | Operating Temperature [Max] | Operating Temperature [Min] | Mechanical Life | Contact Rating @ Voltage | Actuator Type | Outline [y] | Outline [x] | Ingress Protection | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Surface Mount | Off-Mom | J Lead | SPST-NO | Non-Illuminated | Top Actuated | 0.3 mm | 5.2 mm | 125 °C | -40 °C | 1000000 Cycles | 0.01 A 32 VDC | Standard | 6.2 mm | 6.2 mm | IP67 - Dust Tight Waterproof | 120 gf |
