000309 Series

Manufacturer: Molex

Catalog

CONN RCPT HSG 4POS 5.03MM

Part	Fastening Type	Number of Rows	Insulation Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Termination	Color	Connector Type	Contact Type	Mounting Type	Pitch	Number of Positions	Note	Row Spacing

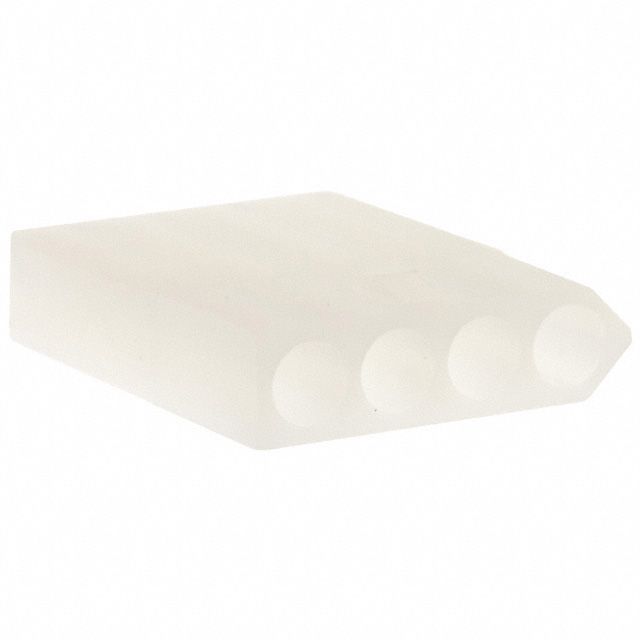

Molex 0003091042	Locking Ramp	1	Nylon 6/6 Polyamide (PA66)	-55 °C	105 °C	Crimp	Natural	Receptacle	Female Male Male or Female	Free Hanging (In-Line)	0.198 in	4	Contacts Not Included

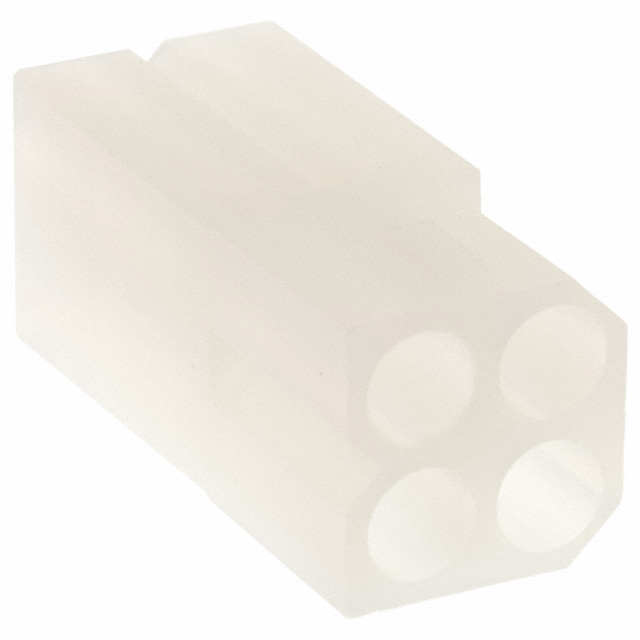

Molex 0003091049	Locking Ramp	2	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	Crimp	Natural	Receptacle	Female Male Male or Female	Free Hanging (In-Line)	0.198 in	4	Contacts Not Included	0.198 in

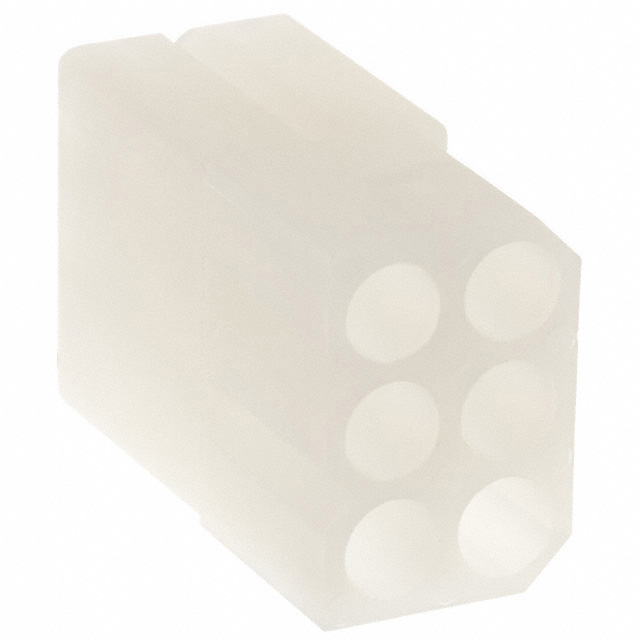

Molex 0003091064	Locking Ramp	3	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	Crimp	Natural	Receptacle	Female Male Male or Female	Free Hanging (In-Line)	0.198 in	6	Contacts Not Included	0.198 in
Molex 0003091037	Latch Lock	1				Crimp	Natural	Receptacle	Female Socket	Free Hanging (In-Line)	0.198 in	3	Contacts Not Included

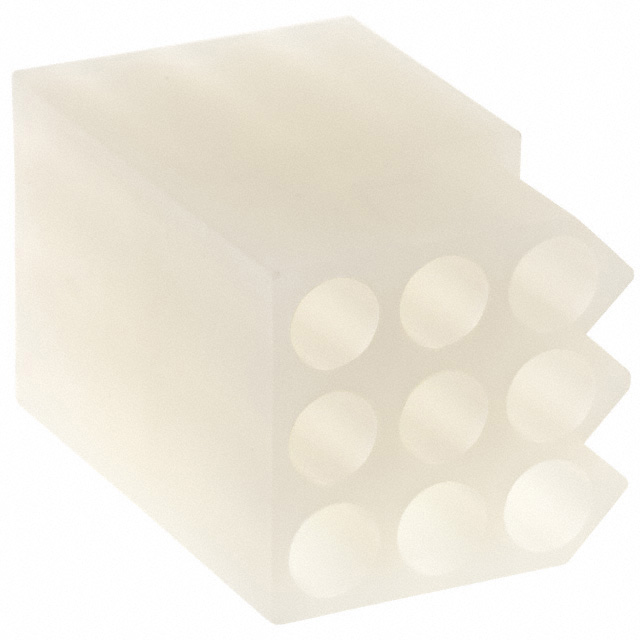

Molex 0003091094	Locking Ramp	3	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	Crimp	Natural	Receptacle	Female Male Male or Female	Free Hanging (In-Line)	0.198 in	9	Contacts Not Included	0.198 in

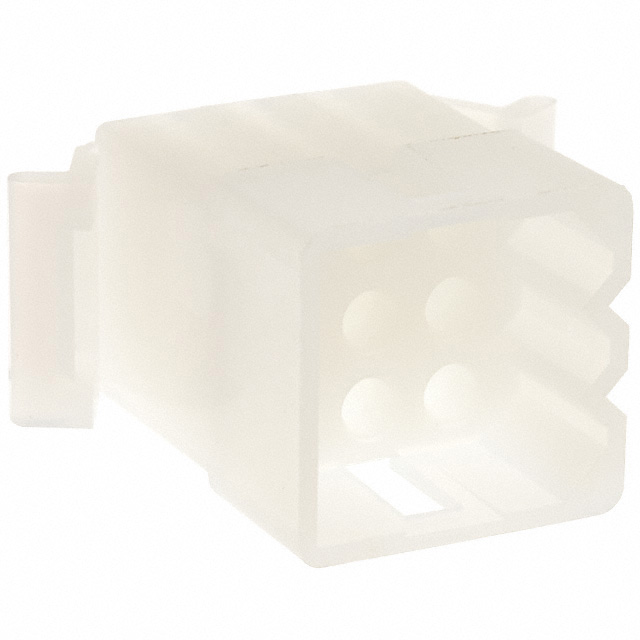

Molex 0003092091	Detent Lock	3				Crimp	Natural	Plug	Female Male Male or Female	Panel Mount Snap-In	0.198 in	9	Contacts Not Included	0.198 in
Molex 0003091121		3	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	Crimp	Natural	Receptacle	Female Male Male or Female	Panel Mount Snap-In	0.198 in	12	Contacts Not Included	0.198 in
Molex 0003091054	Locking Ramp	1				Crimp	Natural	Receptacle	Female Male Male or Female	Free Hanging (In-Line)	0.198 in	5	Contacts Not Included

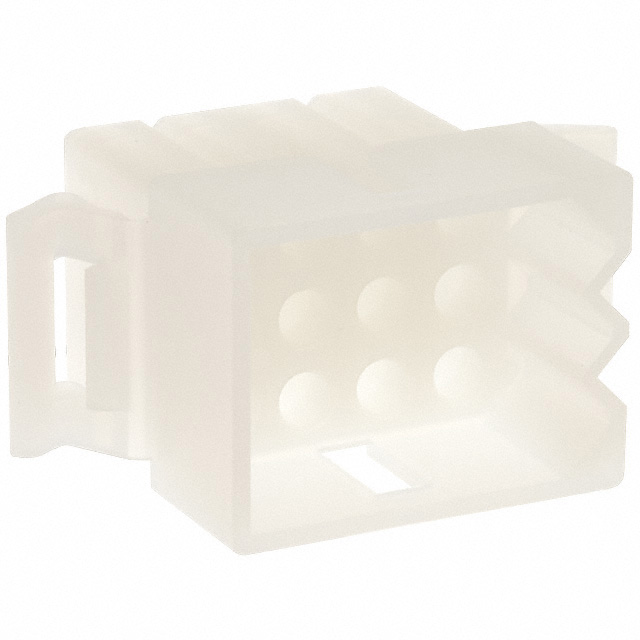

Molex 0003092122	Detent Lock	3	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	Crimp	Natural	Plug	Female Male Male or Female	Panel Mount Snap-In	0.198 in	12	Contacts Not Included	0.198 in

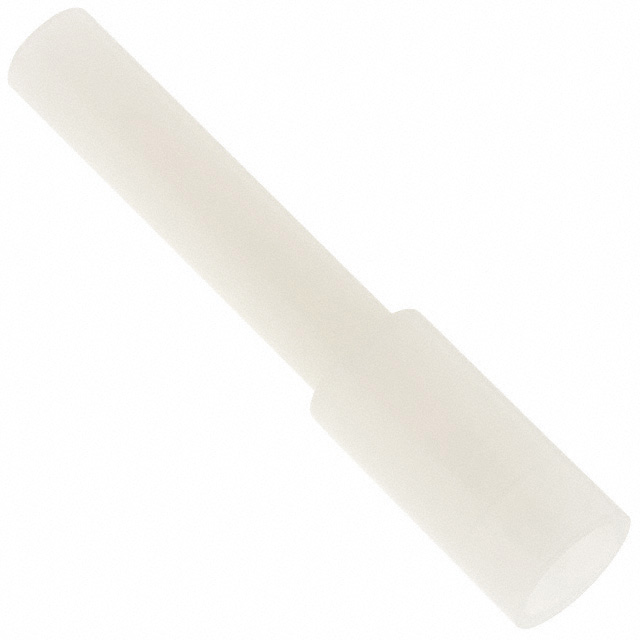

Molex 0003092014		1				Crimp	Natural	Plug	Female Male Male or Female	Free Hanging (In-Line)		1	Contacts Not Included
