APG0603 Series

Catalog

LED YELLOW CLEAR 2SMD

Part	Millicandela Rating	Wavelength - Peak	Lens Size [x]	Lens Size [y]	Height (Max) [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Package / Case	Lens Color	Color	Lens Transparency	Mounting Type	Current - Test	Wavelength - Dominant	Lens Style	Viewing Angle	Supplier Device Package	Configuration	Wavelength - Dominant [custom]	Package / Case	Wavelength - Peak [custom]

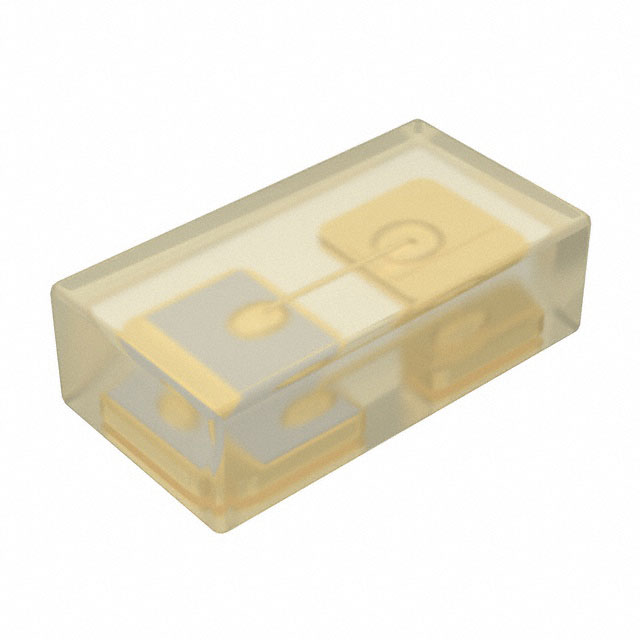

Kingbright APG0603SYC-TT	30 mcd	591 nm	0.35 mm	0.65 mm	0.25 mm	0.35 mm	0.65 mm	2.01 V	2-SMD 0201	Colorless	Yellow	Clear	Surface Mount	10 mA	589 nm	Rectangle with Flat Top	140 °	2-SMD	Standard

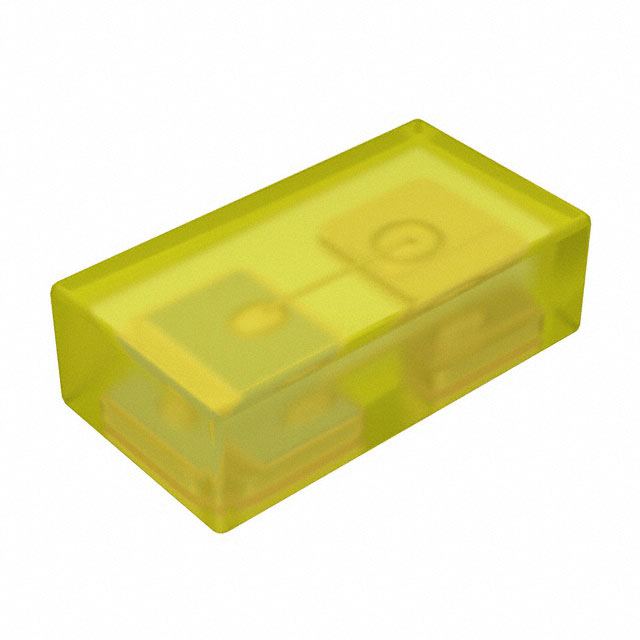

Kingbright APG0603RWF-TT-5MAV	100 mcd		0.35 mm	0.65 mm	0.25 mm	0.35 mm	0.65 mm	2.9 V	2-SMD 0201	Yellow	White	Diffused	Surface Mount	5 mA		Rectangle with Flat Top	135 °	2-SMD	Standard
Kingbright APG0603VGC-TT-5MAV	80 mcd	518 nm	0.35 mm	0.65 mm	0.25 mm	0.35 mm	0.65 mm	3 V	2-SMD 0201	Colorless	Green	Clear	Surface Mount	5 mA		Rectangle with Flat Top	145 °	2-SMD	Standard	527 nm
Kingbright APG0603VBC-A1-5MAV	60 mcd	463 nm	0.65 mm	0.35 mm	0.25 mm	0.35 mm	0.65 mm	2.9 V	0201	Colorless	Blue	Clear	Surface Mount	5 mA	468 nm	Rectangle with Flat Top	140 °	2-SMD	Standard		0603 Metric
Kingbright APG0603PBC-TT-5MAV	25 mcd	461 nm	0.35 mm	0.65 mm	0.25 mm	0.35 mm	0.65 mm	2.9 V	2-SMD 0201	Colorless	Blue	Clear	Surface Mount	5 mA	467 nm	Rectangle with Flat Top	140 °	2-SMD	Standard

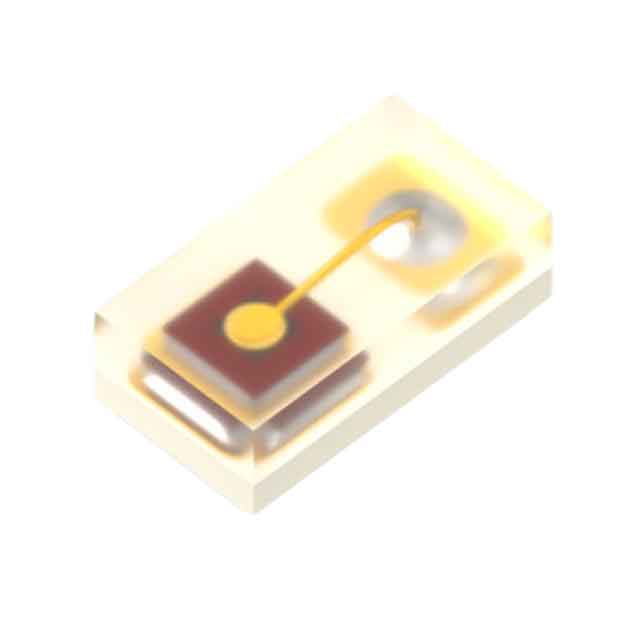

Kingbright APG0603ZGC-5MAV	280 mcd	515 nm	0.65 mm	0.35 mm	0.25 mm	0.35 mm	0.65 mm	2.85 V	0201	Colorless	Green	Clear	Surface Mount	5 mA	525 nm	Rectangle with Flat Top	140 °	2-SMD	Standard		0603 Metric
Kingbright APG0603CGC-TT	15 mcd		0.35 mm	0.65 mm	0.25 mm	0.35 mm	0.65 mm	1.97 V	2-SMD 0201	Colorless	Green	Clear	Surface Mount	10 mA	571 nm	Rectangle with Flat Top	140 °	2-SMD	Standard			572 nm
Kingbright APG0603SEC-TT	150 mcd	611 nm	0.35 mm	0.65 mm	0.25 mm	0.35 mm	0.65 mm	2.01 V	2-SMD 0201	Colorless		Clear	Surface Mount	10 mA	605 nm	Rectangle with Flat Top	140 °	2-SMD	Standard
Kingbright APG0603SEC-E-TT	120 mcd	632 nm	0.35 mm	0.65 mm	0.25 mm	0.35 mm	0.65 mm	1.93 V	2-SMD 0201	Colorless	Red	Clear	Surface Mount	10 mA	624 nm	Rectangle with Flat Top	140 °	2-SMD	Standard
Kingbright APG0603SURC-TT	30 mcd	639 nm	0.35 mm	0.65 mm	0.25 mm	0.35 mm	0.65 mm	1.92 V	2-SMD 0201	Colorless	Red	Clear	Surface Mount	10 mA	631 nm	Rectangle with Flat Top	140 °	2-SMD	Standard
