3236 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN SPLICE 10-12 AWG CRIMP
| Part | Features | Insulation | Terminal Type | Wire Gauge [Max] | Wire Gauge [Min] | Termination | Number of Wire Entries | Mounting Type | Thickness | Thickness | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Length - Overall [x] | Length - Overall [x] | Contact Finish | Contact Material | Color | Stud/Tab Size | Material - Insulation | Width - Outer Edges [y] | Width - Outer Edges [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

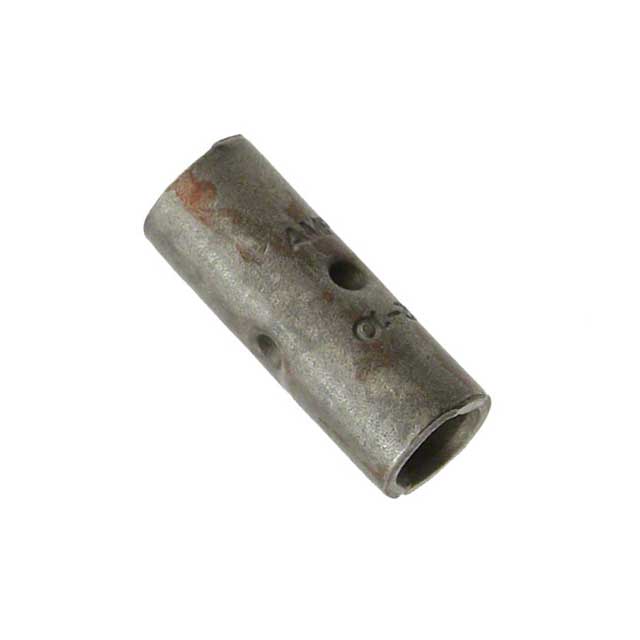

 TE Connectivity Raychem Cable Protection | Brazed Seam High Temperature Serrated Mating Area | Non-Insulated | Butt Splice Individual Openings Inline | 12 AWG | 10 AWG | Crimp | 2 | ||||||||||||||||

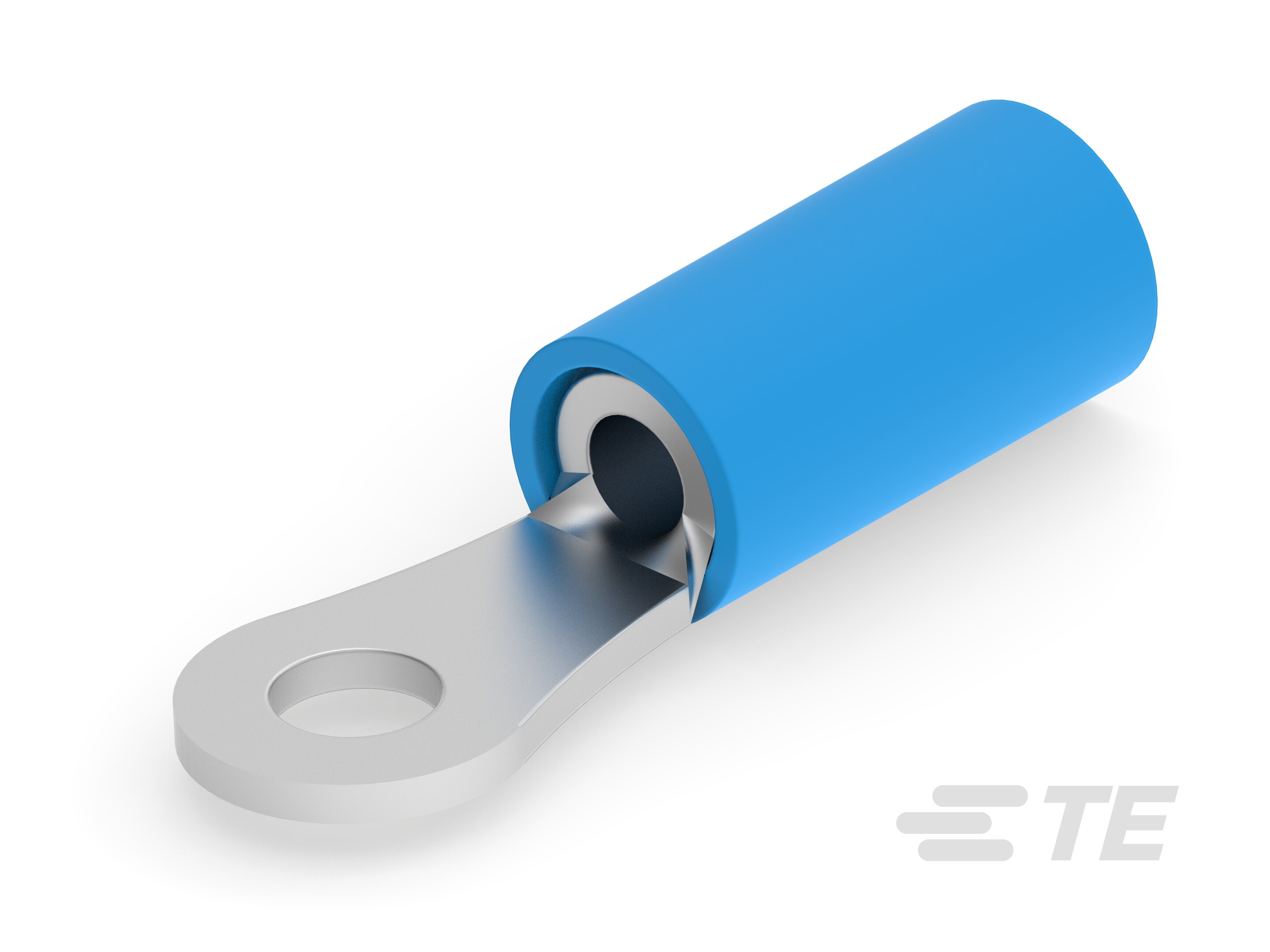

 TE Connectivity Raychem Cable Protection | Serrated Termination | Insulated | Circular | Crimp | Free Hanging (In-Line) | 0.031 in | 0.79 mm | 0.105 in | 3.81 mm | 2.67 mm | 0.15 " | 20.65 mm | 0.813 in | Tin | Copper | Blue | 4 Stud | Nylon Polyamide (PA) | 0.25 " | 6.35 mm |
