Heavy Duty Power Connectors 6.00MM SOCKET FM 2AWG SOCKET
Heavy Duty Power Connectors 6.00MM SOCKET FM 2AWG SOCKET
| Part | Wire Gauge | Terminal Type | Termination | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Finish - Post | Applications | Connector Type | Contact Type | Contact Shape | Contact Material | Number of Positions Loaded | Style | Insulation Color | Voltage Rating | Current Rating (Amps) | Number of Rows | Pitch - Mating | Pitch - Mating | Fastening Type | Shrouding | Insulation Material | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

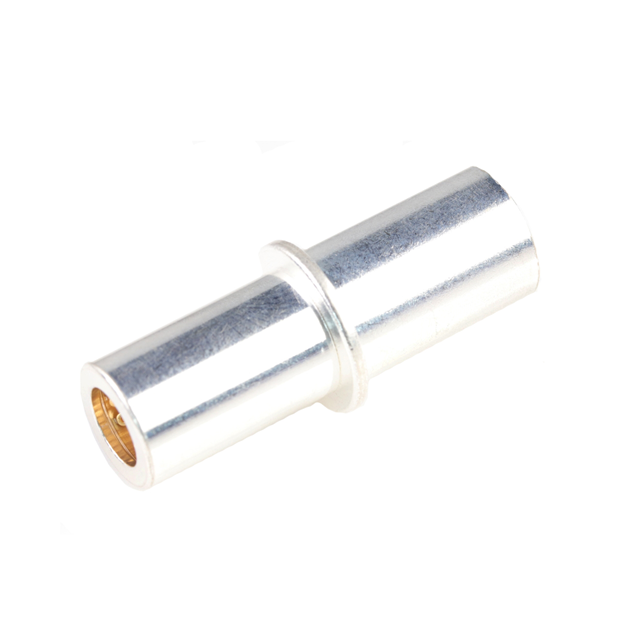

 Molex | 8 AWG | Female Receptacle (Socket) | Crimp | ||||||||||||||||||||||

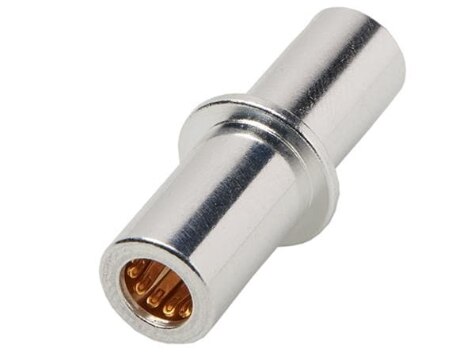

 Molex | 6 AWG | Female Receptacle (Socket) | Crimp | ||||||||||||||||||||||

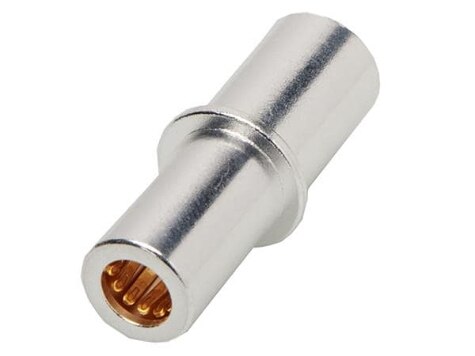

 Molex | 2 AWG | Female Receptacle (Socket) | Crimp | ||||||||||||||||||||||

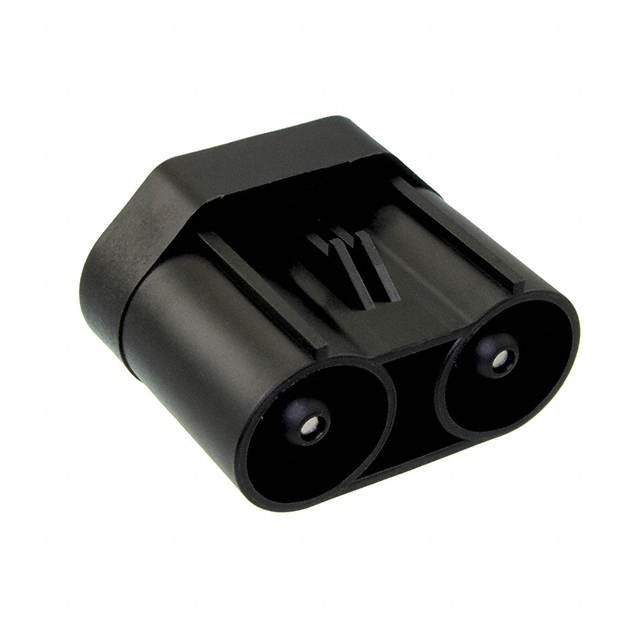

 Molex | Screw | Surface Mount | -40 °C | 105 ░C | 2 | Silver | Industrial Telecommunications | Header | Male Pin | Circular | Copper Alloy | All | Board to Cable/Wire | Black | 600 V | 200 A | 1 | 25 mm | 0.984 " | Latch Lock | Shrouded | Polybutylene Terephthalate (PBT) | Silver | ||
 Molex | 44 AWG | Female Receptacle (Socket) | Crimp | ||||||||||||||||||||||

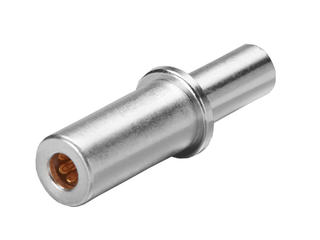

 Molex | 10 AWG | Female Receptacle (Socket) | Crimp | ||||||||||||||||||||||

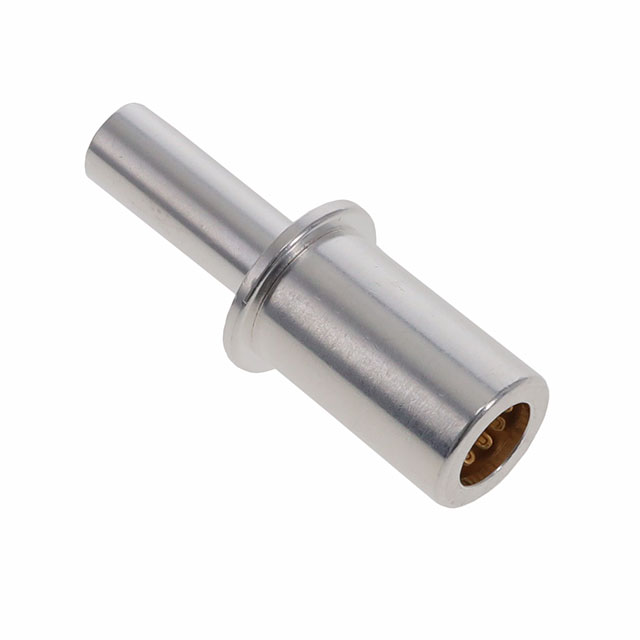

 Molex | 4 AWG | Female Receptacle (Socket) | Crimp |
