GRPB132 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER SMD 26POS 1.27MM
| Part | Contact Finish Thickness - Post | Contact Material | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Style | Insulation Height [z] | Insulation Height [z] | Features | Contact Length - Mating | Contact Length - Mating | Shrouding | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Contact Type | Material Flammability Rating | Termination | Fastening Type | Number of Positions Loaded | Contact Shape | Number of Rows [custom] | Insulation Material | Connector Type | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

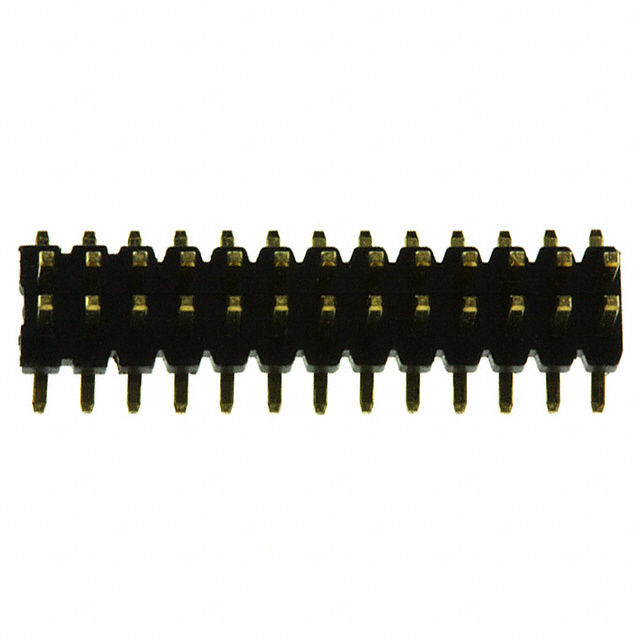

 Sullins Connector Solutions | Flash | Brass | Surface Mount | 1.27 mm | 0.05 in | Gold | Board to Board Cable | 1 mm | 0.039 in | Board Guide | 3 mm | 0.118 in | Unshrouded | 26 | 0.05 in | 1.27 mm | Male Pin | UL94 V-0 | Solder | Push-Pull | All | Square | 2 | Nylon 9T Polyamide (PA9T) | Header | Flash | -40 C | 105 ░C | Gold | ||||
 Sullins Connector Solutions | Flash | Brass | Right Angle Through Hole | 1.27 mm | 0.05 in | Gold | Board to Board Cable | 3 mm | 0.118 in | Unshrouded | 26 | 0.05 in | 1.27 mm | Male Pin | UL94 V-0 | Solder | Push-Pull | All | Square | 2 | Nylon 9T Polyamide (PA9T) | Header | Flash | -40 C | 105 ░C | Gold | 0.134 in | 3.4 mm | 2.5 mm | 0.098 in |
