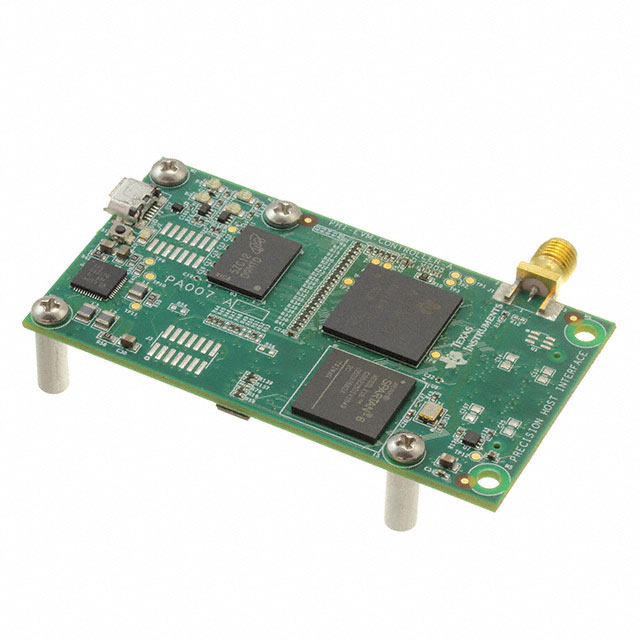

ADS7057 Series
14-Bit, 2.5MSPS, Differential Input, Small-Size Low-Power SAR ADC
Manufacturer: Texas Instruments
Catalog
14-Bit, 2.5MSPS, Differential Input, Small-Size Low-Power SAR ADC
Key Features
• 2.5-MSPS ThroughputSmall Package Size:X2QFN-8 Package (1.5 mm × 1.5 mm)Fully Differential Input Range: ±AVDDWide Operating Range:AVDD: 2.35 V to 3.6 VDVDD: 1.65 V to 3.6 V (Independent of AVDD)Temperature Range: –40°C to +125°CExcellent Performance:14-Bit NMC DNL, ±0.9-LSB INL79.5-dB SINAD at 2 kHz77-dB SINAD at 1 MHzLow Power Consumption:3.6 mW at 2.5 MSPS With 3.3-V AVDD160 µW at 100 kSPS With 3.3-V AVDD82 µW at 100 kSPS With 2.5-V AVDDIntegrated Offset CalibrationSPI-Compatible Serial Interface: 60 MHzJESD8-7A Compliant Digital I/O2.5-MSPS ThroughputSmall Package Size:X2QFN-8 Package (1.5 mm × 1.5 mm)Fully Differential Input Range: ±AVDDWide Operating Range:AVDD: 2.35 V to 3.6 VDVDD: 1.65 V to 3.6 V (Independent of AVDD)Temperature Range: –40°C to +125°CExcellent Performance:14-Bit NMC DNL, ±0.9-LSB INL79.5-dB SINAD at 2 kHz77-dB SINAD at 1 MHzLow Power Consumption:3.6 mW at 2.5 MSPS With 3.3-V AVDD160 µW at 100 kSPS With 3.3-V AVDD82 µW at 100 kSPS With 2.5-V AVDDIntegrated Offset CalibrationSPI-Compatible Serial Interface: 60 MHzJESD8-7A Compliant Digital I/O
Description
AI
The ADS7057 device belongs to a family of pin-to-pin compatible, high-speed, low-power, single-channel successive-approximation register (SAR) type analog-to-digital converters (ADCs). The device family includes multiple resolutions, throughputs, and analog input variants (see Table 1 for a list of devices).
The ADS7057 is a 14-bit, 2.5-MSPS SAR ADC that supports fully-differential inputs in the range of ±AVDD, for AVDD in the range of 2.35 V to 3.6 V.
The internal offset calibration feature maintains excellent offset specifications over the entire AVDD and temperature operating range.
The device supports an SPI-compatible serial interface that is controlled by theCSand SCLK signals. The input signal is sampled with theCSfalling edge and SCLK is used for both conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interfacing to a variety of host controllers. The ADS7057 complies with the JESD8-7A standard for a normal DVDD range (1.65 V to 1.95 V).
The ADS7057 is available in an 8-pin, small, X2QFN package and is specified over the extended industrial temperature range (–40°C to +125°C). The small form-factor and extremely-low power consumption make this device suitable for space-constrained and battery-powered applications that require high-speed, high-resolution data acquisition.
The ADS7057 device belongs to a family of pin-to-pin compatible, high-speed, low-power, single-channel successive-approximation register (SAR) type analog-to-digital converters (ADCs). The device family includes multiple resolutions, throughputs, and analog input variants (see Table 1 for a list of devices).
The ADS7057 is a 14-bit, 2.5-MSPS SAR ADC that supports fully-differential inputs in the range of ±AVDD, for AVDD in the range of 2.35 V to 3.6 V.
The internal offset calibration feature maintains excellent offset specifications over the entire AVDD and temperature operating range.
The device supports an SPI-compatible serial interface that is controlled by theCSand SCLK signals. The input signal is sampled with theCSfalling edge and SCLK is used for both conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interfacing to a variety of host controllers. The ADS7057 complies with the JESD8-7A standard for a normal DVDD range (1.65 V to 1.95 V).
The ADS7057 is available in an 8-pin, small, X2QFN package and is specified over the extended industrial temperature range (–40°C to +125°C). The small form-factor and extremely-low power consumption make this device suitable for space-constrained and battery-powered applications that require high-speed, high-resolution data acquisition.
