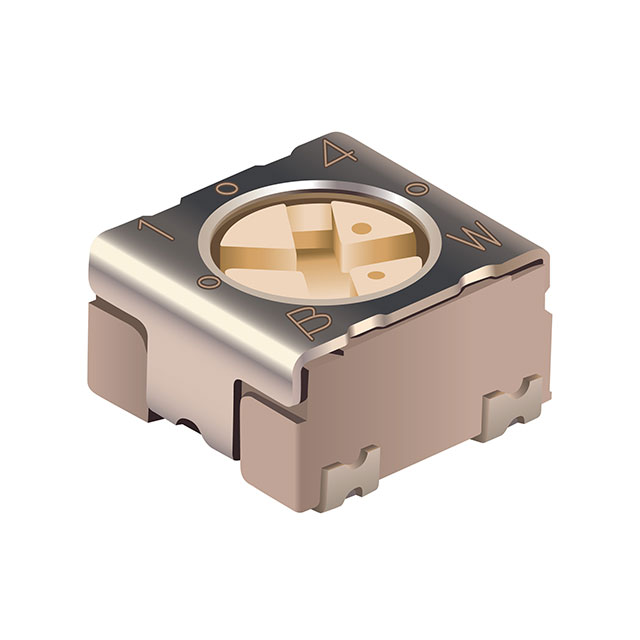

PVG3A Series

Catalog

TRIMMER, SINGLE TURN, CERMET, TOP ADJUST, 50 KOHM, SURFACE MOUNT, 1 TURNS

Part	Temperature Coefficient	Resistive Material	Tolerance	Number of Turns	Power (Watts)	Power (Watts)	Adjustment Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Termination Style	Mounting Type	Resistance	Temperature Coefficient
Bourns Inc. PVG3A503C01R00	150 ppm/°C	Cermet	20 %	1	0.25 W	0.25 W	Top Adjustment	3.6 mm	0.142 in	3.4 mm	0.134 in	J Lead	Surface Mount	50000 Ohms
Bourns Inc. PVG3A203A01R00	100 ppm/°C	Cermet	20 %	1	0.25 W	0.25 W	Top Adjustment	3.6 mm	0.142 in	3.4 mm	0.134 in	J Lead	Surface Mount	20 kOhms
Bourns Inc. PVG3A104A01R00	100 ppm/°C	Cermet	20 %	1	0.25 W	0.25 W	Top Adjustment	3.6 mm	0.142 in	3.4 mm	0.134 in	J Lead	Surface Mount	100 kOhms
Bourns Inc. PVG3A500C01R00	150 ppm/°C	Cermet	20 %	1	0.25 W	0.25 W	Top Adjustment	3.6 mm	0.142 in	3.4 mm	0.134 in	J Lead	Surface Mount	50 Ohms
Bourns Inc. PVG3A103C01R00	150 ppm/°C	Cermet	20 %	1	0.25 W	0.25 W	Top Adjustment	3.6 mm	0.142 in	3.4 mm	0.134 in	J Lead	Surface Mount	10000 Ohms
Bourns Inc. PVG3A502C01R00	150 ppm/°C	Cermet	20 %	1	0.25 W	0.25 W	Top Adjustment	3.6 mm	0.142 in	3.4 mm	0.134 in	J Lead	Surface Mount	5 kOhms
Bourns Inc. PVG3A102C01R00	150 ppm/°C	Cermet	20 % 20 %	1	0.25 W	0.25 W	Top Adjustment	3.6 mm	0.142 in	3.4 mm	0.134 in	J Lead	Surface Mount	1000 Ohms	Ý150ppm/¯C
Bourns Inc. PVG3A504A01R00	100 ppm/°C	Cermet	20 %	1	0.25 W	0.25 W	Top Adjustment	3.6 mm	0.142 in	3.4 mm	0.134 in	J Lead	Surface Mount
Bourns Inc. PVG3A500A01R00	250 ppm/°C	Cermet	20 %	1	0.25 W	0.25 W	Top Adjustment	3.6 mm	0.142 in	3.4 mm	0.134 in	J Lead	Surface Mount	50 Ohms
Bourns Inc. PVG3A103A01R00	100 ppm/°C	Cermet	20 %	1	0.25 W	0.25 W	Top Adjustment	3.6 mm	0.142 in	3.4 mm	0.134 in	J Lead	Surface Mount	10000 Ohms
