Rotary Switches ElectricalSwitch Rotary NotOver5Amp
Rotary Switches ElectricalSwitch Rotary NotOver5Amp
| Part | Number of Decks [custom] | Voltage Rating - AC | Actuator Type | Mounting Type | Contact Timing | Voltage Rating - DC | Number of Positions | Contact Material | Angle of Throw | Index Stops | Contact Finish | Circuit per Deck | Actuator Length [x] | Depth Behind Panel [z] | Termination Style | Number of Poles per Deck | Current Rating (Amps) | Actuator Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

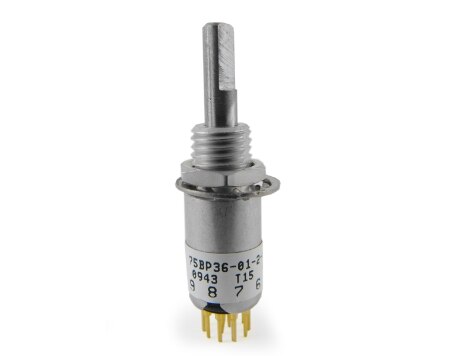

 Grayhill Inc. | 1 | 115 V | Flatted (3.17mm Dia) | Panel Mount Through Hole | Non-Shorting (BBM) | 30 V | 5 | Silver Cadmium Oxide (AgCdO) | 36 ° | Fixed | Gold | DP5T | 9.53 mm | 12.7 mm | PC Pin | 2 | 200 mA | |
 Grayhill Inc. | 1 | 115 V | Knob | Through Hole | Non-Shorting (BBM) | 30 V | Silver Cadmium Oxide (AgCdO) | 36 ° | Fixed | Gold | SP3T | 2.92 mm | 12.42 mm | PC Pin | 1 | 200 mA | ||
Grayhill Inc. | 1 | 115 V | Screwdriver Slot | Through Hole | Non-Shorting (BBM) | 30 V | 2 | Silver Cadmium Oxide (AgCdO) | 36 ° | Fixed | Gold | DPDT | 12.42 mm | PC Pin | 2 | 200 mA | Flush |
