HLW5S Series

Catalog

CONN FFC FPC VERT 5POS 1MM PCB

Part	Housing Color	Mating Cycles	FFC, FCB Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Number of Positions	Contact Finish	Termination	Contact Material	Voltage Rating	Connector/Contact Type	Flat Flex Type	Housing Material	Material Flammability Rating	Mounting Type	Height Above Board [z]	Height Above Board [z]

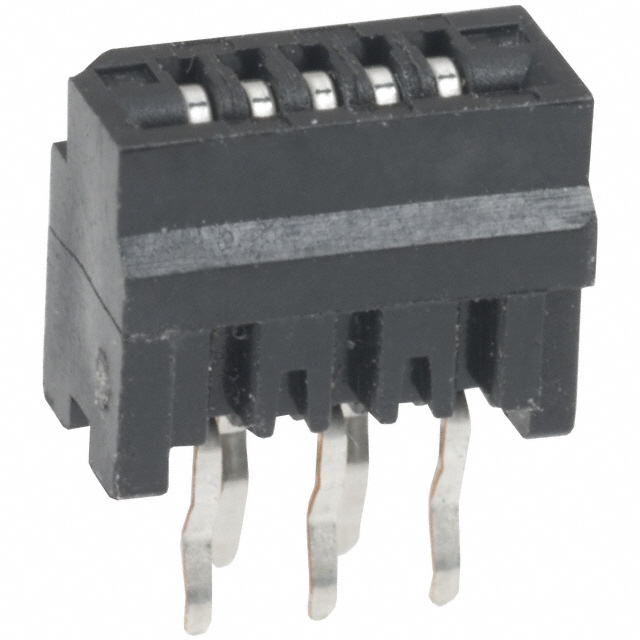

Amphenol ICC (FCI) HLW5S-2C7LF	Black	30	0.33 mm	-55 C	85 °C	1 mm	0.039 in	5	Tin	Kinked Pin	Phosphor Bronze	100 V	Contacts Vertical - 1 Sided	FFC FPC	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Through Hole	5.9 mm	0.232 "
