V2D1A60B Series

Catalog

SWITCH ROCKER SPST-NO 20A 12V

Part	Mechanical Life	Electrical Life	Switch Function	Actuator Marking	Illumination Voltage (Nominal)	Voltage Rating - DC	Illumination Type, Color	Actuator Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Current Rating (Amps)	Mounting Type	Color - Actuator/Cap
Carling Technologies V2D1A60B-A9C00-000	100000 Cycles	100000 Cycles	Off-Mom	No Marking	12 VAC/DC	12 V	Incandescent White	Convex (Reverse V) - Illuminated	SPST-NO	85 °C	-40 C	CSA UL VDE	Quick Connect - 0.250" (6.3mm)	36.83 mm	21.08 mm	IP66 IP68	20 A	Panel Mount Snap-In	Black
Carling Technologies V2D1A60B-CBC00-000	100000 Cycles	100000 Cycles	Off-Mom	No Marking	12 VAC/DC	12 V	Amber Incandescent	Convex (Reverse V) - Illuminated	SPST-NO	85 °C	-40 C	CSA UL VDE	Quick Connect - 0.250" (6.3mm)	36.83 mm	21.08 mm	IP66 IP68	20 A	Panel Mount Snap-In	Black
Carling Technologies V2D1A60B-AKC00-000	100000 Cycles	100000 Cycles	Off-Mom	No Marking	12 VAC/DC	12 V	Green Incandescent	Convex (Reverse V) - Illuminated	SPST-NO	85 °C	-40 C	CSA UL VDE	Quick Connect - 0.250" (6.3mm)	36.83 mm	21.08 mm	IP66 IP68	20 A	Panel Mount Snap-In	Black
Carling Technologies V2D1A60B-CGC00-000	100000 Cycles	100000 Cycles	Off-Mom	No Marking	12 VAC/DC	12 V	Green Incandescent	Convex (Reverse V) - Illuminated	SPST-NO	85 °C	-40 C	CSA UL VDE	Quick Connect - 0.250" (6.3mm)	36.83 mm	21.08 mm	IP66 IP68	20 A	Panel Mount Snap-In	Black

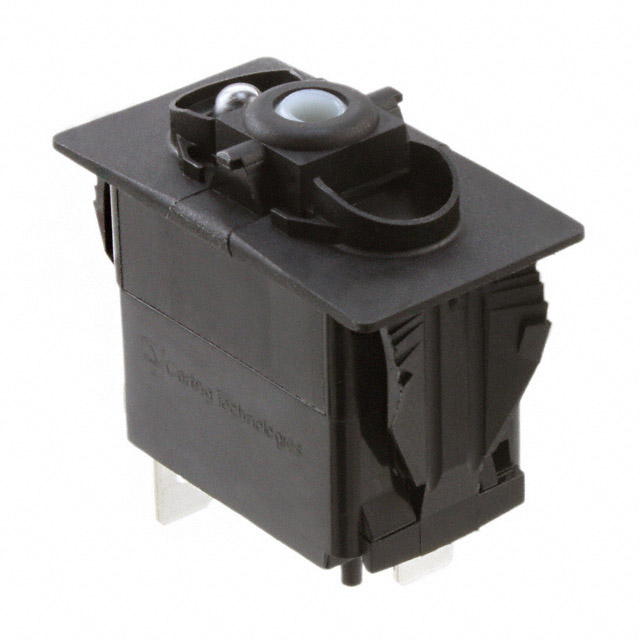

Carling Technologies V2D1A60B-00000-000	100000 Cycles	100000 Cycles	Off-Mom	Varies by Cap	12 VAC/DC	12 V	Incandescent	Actuator Arm Cap Required Illuminated	SPST-NO	85 °C	-40 C	CSA UL VDE	Quick Connect - 0.250" (6.3mm)	36.83 mm	21.08 mm	IP66 IP68	20 A	Panel Mount Snap-In
Carling Technologies V2D1A60B-AKS00-000	100000 Cycles	100000 Cycles	Off-Mom	No Marking	12 VAC/DC	12 V	Green Incandescent	Convex (Reverse V) - Illuminated	SPST-NO	85 °C	-40 C	CSA UL VDE	Quick Connect - 0.250" (6.3mm)	36.83 mm	21.08 mm	IP66 IP68	20 A	Panel Mount Snap-In	Red
Carling Technologies V2D1A60B-CMC00-000	100000 Cycles	100000 Cycles	Off-Mom	No Marking	12 VAC/DC	12 V	Incandescent Red	Convex (Reverse V) - Illuminated	SPST-NO	85 °C	-40 C	CSA UL VDE	Quick Connect - 0.250" (6.3mm)	36.83 mm	21.08 mm	IP66 IP68	20 A	Panel Mount Snap-In	Black
Carling Technologies V2D1A60B-A9CAD-100	100000 Cycles	100000 Cycles	Off-Mom	Master Light - High Beam Vertical	12 VAC/DC	12 V	Incandescent White	Convex (Reverse V) - Illuminated	SPST-NO	85 °C	-40 C	CSA UL VDE	Quick Connect - 0.250" (6.3mm)	36.83 mm	21.08 mm	IP66 IP68	20 A	Panel Mount Snap-In	Black
