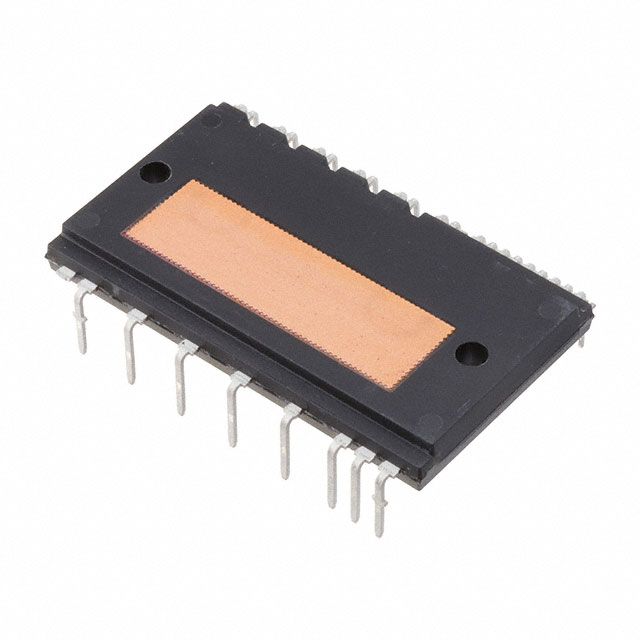

Intelligent Power Module, SPM31, 1200V, 25A
Key Features
• 1200V 25A 3-Phase FS7 IGBT Inverter, Including Control ICs for Gate Drive and Protections
• Low-Loss, Short-Circuit Rated IGBTs (FS7)
• Built-in Under-voltage Protection (UVP)
• Built-In Bootstrap Diodes/Resistors
• Single-Grounded Power Supply
• UL Certification: E209204
• This is a Pb−Free Device
Description
AI
NFAM2512L7B is an advanced IPM module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC and PMSM motors.These modules integrate optimized gate drive of the built-in novel field stop 7th generation IGBT to minimize EMI and losses, while also providing multiple onmodule protection features including under-voltage lockouts, over-currentshutdown, thermal monitoring of drive IC, and fault reporting.The builtin, high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module's internal IGBTs.Separate negative IGBT terminals are available for each phase to support the widest variety of control algorithms.
