MEU-600 Series
Manufacturer: Delta Electronics
Beta
⌘K

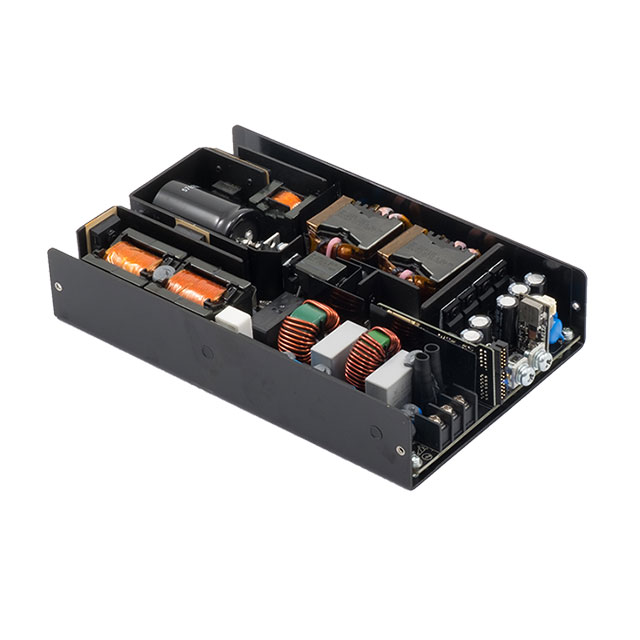

AC/DC CONVERTER 48V 600W
| Part | Minimum Load Required | Number of Outputs | Voltage - Isolation | Efficiency | Features | Type | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Standard Number | Current - Output 1 | Mounting Type | Applications | Voltage - Output 1 | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 1 | 4000 V | 95 % | Adjustable Output Load Sharing PFC PMBus™ Remote On/Off Standby Output Universal Input | Open Frame Conformal Coated | 600 W | 70 °C | -20 °C | 40 mm | 5 in | 203.2 mm | 5 in | 8 in | 1.57 " | 50581 55011 55032 60601-1 60950-1 | 12.5 A | Chassis Mount | ITE (Commercial) Medical | 48 V | CB Scheme CE EN SIQ TUV UL | |
Delta Electronics | 1 | 4000 V | 93.5 % | Adjustable Output PFC PMBus™ Remote On/Off Standby Output Universal Input | Open Frame Conformal Coated | 600 W | 70 °C | -20 °C | 40 mm | 5 in | 203.2 mm | 5 in | 8 in | 1.57 " | 50581 55011 55032 60601-1 60950-1 | 25 A | Chassis Mount | ITE (Commercial) Medical | 24 V | CB Scheme CE EN SIQ TUV UL |
