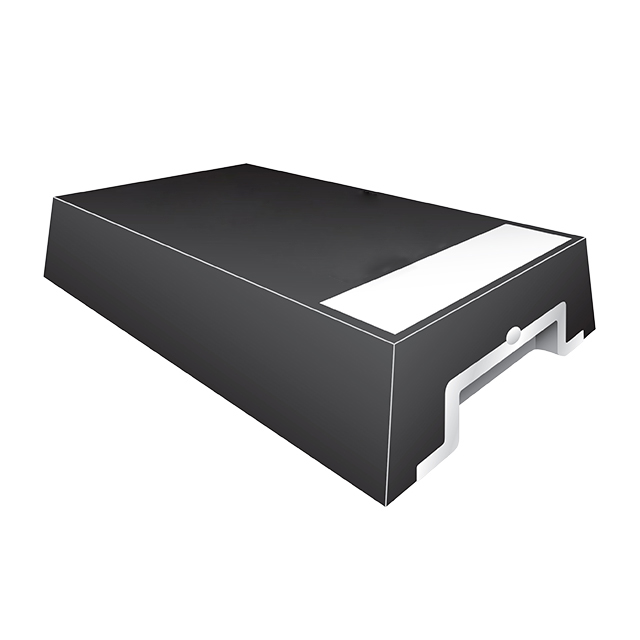

T527I Series

Manufacturer: KEMET

Catalog

CAP TANT POLY 22UF 10V 1206

Part	Mounting Type	ESR (Equivalent Series Resistance)	Type	Features	Manufacturer Size Code	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Voltage - Rated	Tolerance	Package / Case
KEMET T527I226M010ATE200	Surface Mount	200 mOhm	Molded	General Purpose	I	-55 C	105 ░C	0.063 "	0.126 "	3.2 mm	1.6 mm	0.039 in	1 mm	22 µF	10 V	20 %	1206 (3216 Metric)
KEMET T527I107M006ATE100	Surface Mount	100 mOhm	Molded	General Purpose	I	-55 C	105 ░C	0.063 "	0.126 "	3.2 mm	1.6 mm	0.039 in	1 mm	100 µF	6.3 VDC	20 %	1206 (3216 Metric)
KEMET T527I476M010ATE200	Surface Mount	200 mOhm	Molded	General Purpose	I	-55 C	105 ░C	0.063 "	0.126 "	3.2 mm	1.6 mm	0.039 in	1 mm	47 µF	10 V	20 %	1206 (3216 Metric)
KEMET T527I476M006ATE200	Surface Mount	200 mOhm	Molded	General Purpose	I	-55 C	105 ░C	0.063 "	0.126 "	3.2 mm	1.6 mm	0.039 in	1 mm	47 µF	6.3 VDC	20 %	1206 (3216 Metric)
